Product Content: SANYO DENKI San Ace 38 Low Power (Model 9GA0312P3G001)
Product Title

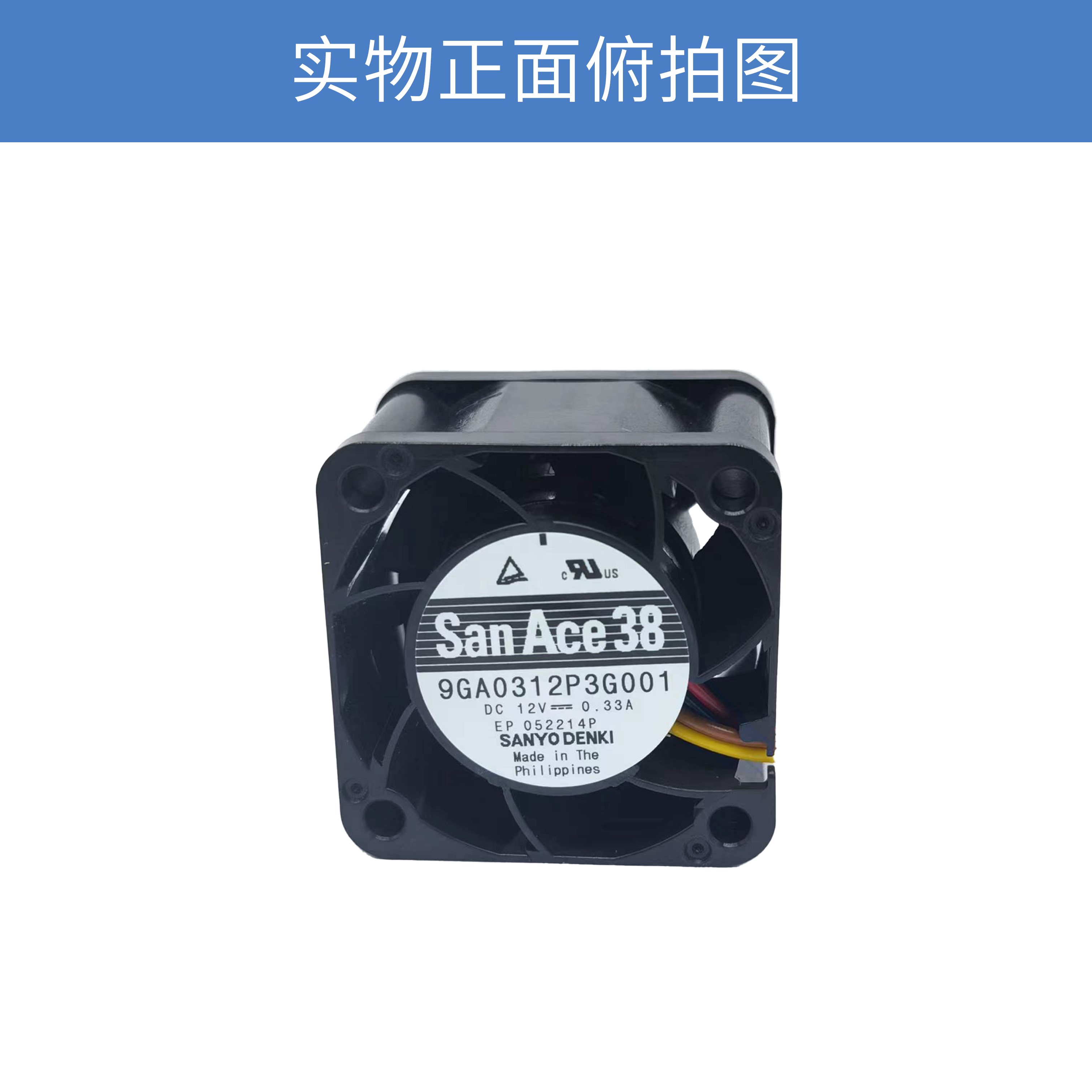

SANYO DENKI San Ace 38 Ultra-Low-Noise DC Fan – 9GA0312P3G001 | 38x28mm, 12V, 4.0W, 19,000 RPM, 53.0dB(A), PWM & Pulse Sensor
Product Overview
The SANYO DENKI 9GA0312P3G001 redefines the boundaries of acoustic silence and energy efficiency within the San Ace 38 series. Engineered for applications where minimal audible disturbance and minimal power consumption are paramount, this model operates at an industry-leading 53.0 dB(A) while consuming just 4.0 Watts — making it the quietest and most energy-efficient variant ever produced in the San Ace 38 lineup.
Operating at a conservative speed of 19,000 RPM, it delivers 0.45 m³/min (15.9 CFM) airflow and 460 Pa (1.85 inchH₂O) static pressure — sufficient for passive cooling in low-heat-density systems such as IoT sensors, wearable medical devices, and compact consumer electronics. Its ribbed plastic frame ensures structural integrity without compromising acoustic performance.
Equipped with PWM speed control and a pulse sensor, it enables intelligent thermal management and real-time diagnostics. Certified as an Eco Product by SANYO DENKI and compliant with global safety standards, it supports sustainable design goals while delivering unparalleled silence.
Key Features
-
Industry-Leading Quietness: Sound pressure level of 53.0 dB(A) — the lowest among all San Ace 38 models, quieter than a library.
-
Ultra-Low Power Consumption: Only 4.0W rated input — ideal for battery-powered, solar, or energy-constrained systems.
-
Acoustic Optimization: Engineered motor and impeller geometry minimize turbulence and vibration for near-silent operation.
-
Smart Control Interface: PWM allows dynamic speed adjustment; pulse sensor provides RPM feedback for predictive maintenance.
-
Global Compliance: Meets UL, CSA, EN, RoHS standards; officially recognized as an Eco Product by SANYO DENKI.
-

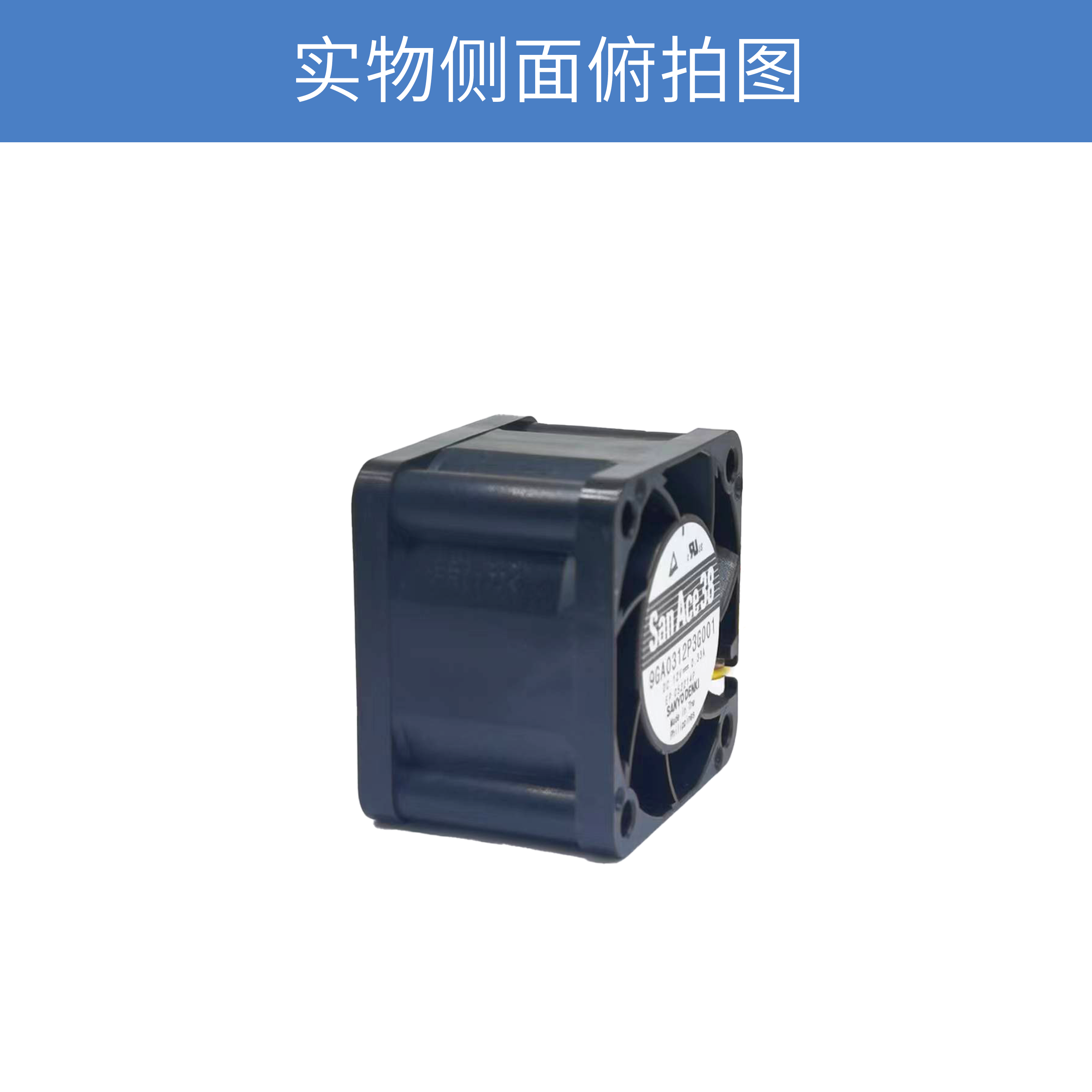

Durable Ribbed Frame: Enhances rigidity and vibration resistance despite lightweight construction.
-
Wide Environmental Tolerance: Operates reliably from -20°C to +70°C.
-
Compact Form Factor: Standard 38mm x 38mm x 28mm size fits most existing enclosures.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9GA0312P3G001
|
|
Series
|
San Ace 38 Low Power (9GA Series)
|
|
Manufacturer
|
SANYO DENKI Co., Ltd.
|
|
Frame Size
|
38 mm x 38 mm
|
|
Thickness
|
28 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage Range
|
10.8 ~ 13.2 VDC
|
|
Rated Current
|
0.33 A
|
|
Rated Input Power
|
4.0 W ← Core Differentiator
|
|
Rated Speed
|
19,000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.45 m³/min (15.9 CFM)
|
|
Maximum Static Pressure
|
460 Pa (1.85 inchH₂O)
|
|
Sound Pressure Level (SPL)
|
53.0 dB(A) ← Lowest in Class
|
|
Bearing System
|
Ball Bearing
|
|
Expected Life
|
70,000 hours (at 40°C) / 40,000 hours (at 60°C)
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Weight
|
Approx. 52 g
|
|
Material
|
Frame: Plastic / Impeller: Plastic
|
|
Functions
|
PWM Control, Pulse Sensor, Locked Rotor Detection
|
|
Wire Color Code
|
Red (+), Black (-), Yellow (Pulse), Blue (PWM)
|
|
Certifications
|
UL, CSA, EN, RoHS, Eco Product
|
|
Ribbed
|
Yes
|
Applications
This ultra-quiet, ultra-low-power fan is optimized for:
-
IoT & Edge Devices: Smart sensors, gateways, wearables — requiring silent, long-life cooling on minimal power.
-
Portable Medical Instruments: Blood glucose monitors, pulse oximeters, handheld ultrasound — needing silent operation in patient-facing environments.
-
Consumer Electronics: Wireless earbuds cases, smartwatches chargers, VR headset docks — prioritizing user comfort and aesthetics.
-
Home Automation Systems: Smart thermostats, security cameras, voice assistants — where background noise must be eliminated.
-
Educational & Lab Tools: Microscopes, spectrometers, teaching aids — used in quiet classrooms or research labs.
-
Green Technology Systems: Solar charge controllers, battery management units — maximizing runtime on limited power budgets.
Wiring & Connection Guide
Standard 4-wire interface:
-
Red Wire: +12V Power Input
-
Black Wire: Ground (GND)
-
Yellow Wire: Pulse Sensor Output (Open collector, 2 pulses per revolution)
-
Blue Wire: PWM Control Input (Typical frequency: 25kHz)
Installation Note: For optimal silence and energy savings, configure PWM duty cycle based on actual thermal load. Leaving PWM pin open may result in full-speed operation depending on controller logic.
Why Choose This Model?
-
Quietest Fan in Class: At 53.0 dB(A), it’s nearly imperceptible — quieter than a whisper.
-
Lowest Power Draw: Only 4.0W — extends battery life and reduces system heat output.
-
Acoustic Engineering Excellence: Specifically tuned for minimal turbulence and mechanical resonance.
-
Eco-Certified Sustainability: Officially designated as an Eco Product by SANYO DENKI.
-
Intelligent Thermal Management: PWM + pulse sensor enable adaptive cooling and remote health tracking.
-
Trusted Reliability: Backed by decades of SANYO DENKI engineering excellence and global certifications.
∷
