SANYO San Ace 40 9GAX0412P3S001 Full English Product Content
1. Product Overview

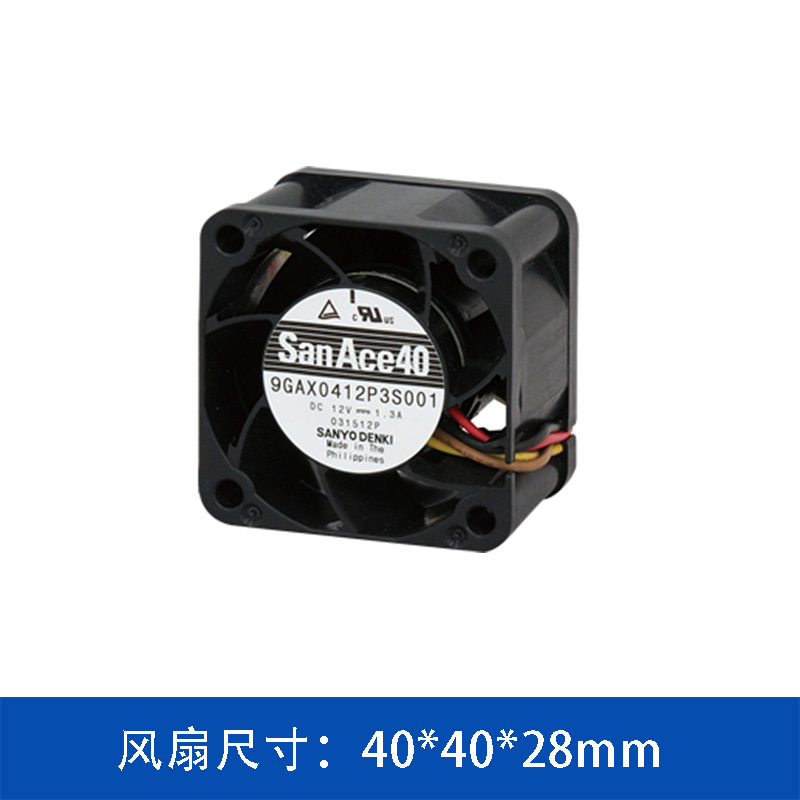

The 9GAX0412P3S001 belongs to the low-power consumption lineup of SANYO DENKI’s classic San Ace 40 series, a 40×40×28mm DC axial cooling fan tailored for energy-saving industrial thermal management.
It runs at a rated speed of 25000 RPM with optimized internal blade and motor design, delivering balanced airflow and static pressure while cutting power draw compared to high-power counterparts. Integrated PWM speed control and pulse tachometer sensor enable flexible speed regulation and real-time fan status monitoring. All products comply with UL, CSA, EN and RoHS standards, ideal for energy-efficient industrial, telecom and compact server cooling systems.
2. Complete Technical Specifications
|
Parameter Item
|
Value
|
|
Model Number
|
9GAX0412P3S001
|
|
Frame Size
|
40mm × 40mm × 28mm (4028)
|
|
Frame Material
|
Plastic
|
|
Rated Voltage
|
12V DC
|
|
Operating Voltage Range
|
10.8V ~ 12.6V DC
|
|
Rated Current
|
1.3A
|
|
Rated Input Power
|
15.6W
|
|
Rated Speed
|
25000 min⁻¹
|
|
Maximum Airflow
|
0.9 m³/min (31.8 CFM)
|
|
Maximum Static Pressure
|
1000 Pa (4.02 inchH₂O)
|
|
Sound Pressure Level
|
64 dB(A)
|
|
Operating Temperature
|
-20℃ ~ +60℃
|
|
Expected Service Life
|
300000 hours at 60℃ / 530000 hours at 40℃
|
|
Net Weight
|
53g
|
|
Sensor Type
|
Pulse tachometer sensor
|
|
PWM Control Function
|
Supported
|
|
Ribbed Reinforced Frame
|
Yes
|
|
Product Feature Tag
|
Low Power Consumption
|
3. Core Product Advantages
-
Low Power Consumption Energy-Saving Design
Adopts energy-efficient motor structure, rated power only 15.6W, greatly reduces long-term equipment power consumption, perfectly matches low-energy-consumption industrial equipment design requirements.
-
Balanced Airflow & Static Pressure
25000 RPM rotational speed provides 1000Pa max static pressure, capable of passing through dense heat sinks and narrow ventilation channels, while maintaining stable airflow of 0.9 m³/min for reliable heat dissipation.
-
PWM Speed Regulation + Pulse Speed Feedback
Built-in PWM control function supports dynamic speed adjustment according to equipment temperature, lowering noise and power waste during light load operation; pulse sensor outputs real-time rotational speed signals to mainboard for fan failure alarm and running status monitoring.
-
Low Noise & Stable Operation
Optimized fan blade structure limits noise to only 64dB(A); ribbed reinforced plastic frame improves structural rigidity, suppresses high-speed vibration and ensures long-term stable operation.
-
Wide Temperature Adaptability & Ultra-Long Service Life
Stable performance between -20℃ to 60℃ ambient temperature, up to 300,000-hour service life under 60℃ working environment, reduces maintenance frequency for uninterrupted running devices.
-
Global Standard Certifications
Passed UL safety certification, CSA North American standard, EN European standard and RoHS environmental directive, suitable for equipment exported to global markets.
4. Typical Application Fields
-
Compact edge servers, network switches & communication base station equipment
-
Industrial control hosts, servo controllers and power supply modules
-
Medical small diagnostic instruments
-
Automated semiconductor auxiliary equipment
-
High-density embedded computing hardware
5. Brand Introduction
SANYO DENKI is a world-renowned manufacturer of industrial cooling fans under the San Ace brand. San Ace series fans are globally recognized for stable performance, precise thermal control and long service life, providing standardized, high-reliability cooling solutions for industrial, IT, medical and communication industries worldwide.
Short Brief Version (For Product List Page)
SANYO DENKI San Ace 40 low-power fan model 9GAX0412P3S001 is a 4028 size 12V DC axial cooling fan. It operates at 25000 RPM with 1000Pa max static pressure, featuring low power consumption, PWM speed control and pulse tachometer sensor. With low noise, long service life and full UL/CSA/EN/RoHS certifications, it is widely applied in telecom devices, compact servers and industrial control equipment.
∷
