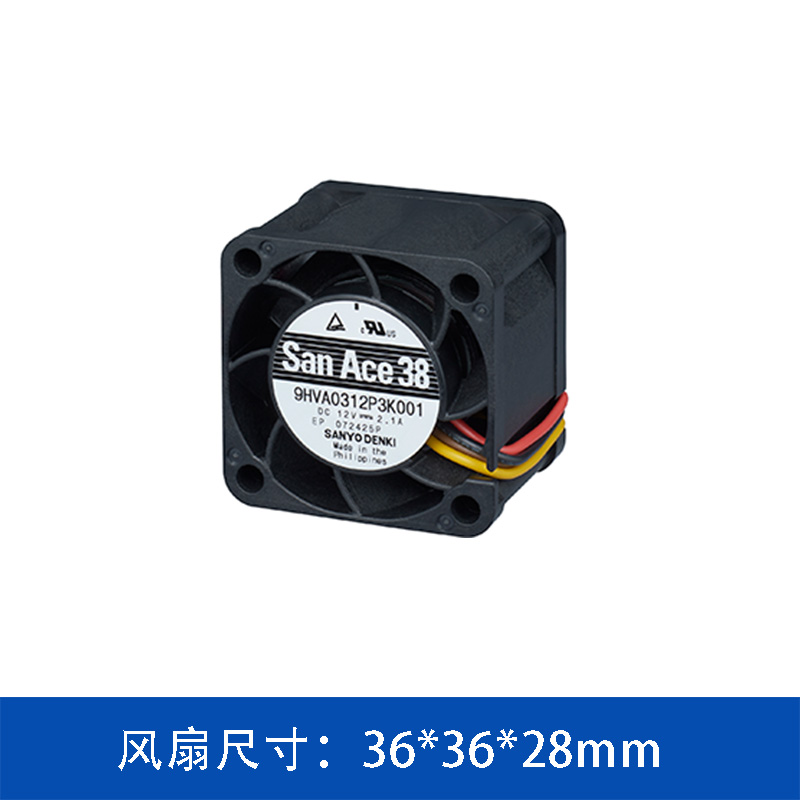

SANYO DENKI San Ace 38 Long-Life DC Fan – 9HVA0312P3G0011 | 38x28mm, 12V, 30,000 RPM, Non-Ribbed Design, PWM & Pulse Sensor
Product Overview
The SANYO DENKI 9HVA0312P3G0011 is a refined variant of the San Ace 38 series, engineered for applications prioritizing longevity, moderate airflow, and reduced mechanical complexity. Operating at 30,000 RPM, it delivers 0.71 m³/min (25.1 CFM) airflow and 1,300 Pa (5.20 inchH₂O) static pressure — sufficient for most enclosed industrial enclosures without excessive noise or vibration.
Unlike ribbed-frame models, this unit features a smooth plastic frame (Ribbed: No), which simplifies cleaning and reduces dust accumulation in sensitive environments. Equipped with PWM speed control and a pulse sensor, it enables intelligent thermal management and real-time diagnostics. With an expected life of 70,000 hours at 40°C, it offers exceptional reliability for continuous-operation systems.
Note: Sound level is rated at 64 dB(A) — suitable for office-adjacent industrial zones or equipment rooms where moderate acoustics are acceptable.
Key Features
-
Extended Service Life: Rated for 70,000 hours at 40°C — among the highest in its class for compact fans.
-
Non-Ribbed Frame: Smooth exterior minimizes dust trapping and eases maintenance in cleanroom or medical settings.
-
Precision Speed Control: PWM interface allows dynamic adjustment from idle to full speed based on thermal load.
-
Real-Time Monitoring: Integrated pulse sensor provides rotation feedback for predictive maintenance and fault detection.
-
Global Compliance: Meets UL, CSA, EN, and RoHS standards; certified as an Eco Product by SANYO DENKI.
-
Wide Environmental Tolerance: Operates reliably between -20°C and +70°C.
-
Compact & Lightweight: 38mm x 38mm x 28mm form factor weighs only 53g — ideal for space-constrained designs.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9HVA0312P3G0011
|
|
Series
|
San Ace 38 (9HVA Series)
|
|
Manufacturer
|
SANYO DENKI Co., Ltd.
|
|
Frame Size
|
38 mm x 38 mm
|
|
Thickness
|
28 mm
|
|
Rated Voltage
|
12 VDC
|
|
Operating Voltage Range
|
10.8 ~ 13.2 VDC
|
|
Rated Current
|
1.1 A
|
|
Rated Input Power
|
13.2 W
|
|
Rated Speed
|
30,000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.71 m³/min (25.1 CFM)
|
|
Maximum Static Pressure
|
1,300 Pa (5.20 inchH₂O)
|
|
Sound Pressure Level (SPL)
|
64 dB(A)
|
|
Bearing System
|
Ball Bearing
|
|
Expected Life
|
70,000 hours (at 40°C) / 40,000 hours (at 60°C)
|
|
Operating Temperature
|
-20°C to +70°C
|
|
Storage Temperature
|
-25°C to +70°C
|
|
Weight
|
Approx. 53 g
|
|
Material
|
Frame: Plastic / Impeller: Plastic
|
|
Functions
|
PWM Control, Pulse Sensor, Locked Rotor Detection
|
|
Wire Color Code
|
Red (+), Black (-), Yellow (Pulse), Blue (PWM)
|
|
Certifications
|
UL, CSA, EN, RoHS, Eco Product
|
|
Ribbed
|
No ← Key Differentiator
|
Applications
This model is particularly suited for:
-
Medical Diagnostic Equipment: Where smooth surfaces reduce contamination risk.
-
Laboratory Instruments: Analyzers, centrifuges, and incubators requiring stable, long-term cooling.
-
Office Automation Systems: High-end printers, scanners, and copiers needing reliable but quiet operation.
-
Telecom Infrastructure: Base station controllers and network switches operating 24/7.
-
Audio/Video Production Gear: Broadcast consoles and editing workstations where acoustic comfort matters.
-
Industrial IoT Gateways: Compact edge devices requiring durable, low-maintenance cooling.
Wiring & Connection Guide
Standard 4-wire configuration:
-
Red Wire: +12V Power Input
-
Black Wire: Ground (GND)
-
Yellow Wire: Pulse Sensor Output (Open collector, 2 pulses per revolution)
-
Blue Wire: PWM Control Input (Typical frequency: 25kHz)
Installation Note: Ensure PWM signal source matches fan’s expected frequency range. Leaving PWM pin floating may result in default full-speed operation depending on system design.
Why Choose This Model?
-
Longest-in-Class Lifespan: 70,000-hour rating at 40°C ensures minimal replacement cycles.
-
Cleanroom-Friendly Design: Non-ribbed frame prevents particle buildup — critical for hygiene-sensitive applications.
-
Smart Thermal Management: PWM + pulse sensor enable adaptive cooling and remote health monitoring.
-
Trusted Brand Heritage: Backed by SANYO DENKI’s 90+ years of motor engineering excellence.
-
Globally Certified: Ready for deployment in regulated industries worldwide.
∷
