SANYO DENKI San Ace 280W 9WGA Splash Proof Fan | IP56 Waterproof Industrial DC Fan

SANYO DENKI San Ace 280W Splash Proof Fan Released: IP56 Protection Meets Cooling Requirements for Industrial Equipment in Harsh Environments

San Ace 280W 9WGA Splash Proof Fan Combines 280×50 mm Large Size Design with IP56 Protection to Improve Equipment Reliability

In industrial applications, cooling fans are often required to operate under challenging environmental conditions.

Especially in refrigeration equipment, outdoor HVAC systems, industrial cooling systems, and high-humidity environments, cooling fans must provide not only stable airflow performance but also reliable protection against:

✔ Condensation and moisture
✔ High humidity conditions
✔ Dust contamination
✔ Water spray during cleaning processes
✔ Long-term low-temperature operation

Conventional cooling fans used in harsh environments may suffer from reduced reliability due to moisture, dust, and temperature fluctuations, leading to:

• Reduced electrical reliability

• Performance degradation

• Shortened service life

• Increased equipment downtime risk

To address these challenges, SANYO DENKI has developed the San Ace 280W 9WGA series Splash Proof DC Fan.

Featuring a:

φ280×50 mm Large-Size Axial Fan Structure + IP56 Protection Design

the San Ace 280W 9WGA provides high airflow performance, high static pressure capability, low power consumption, and improved reliability for demanding industrial environments.

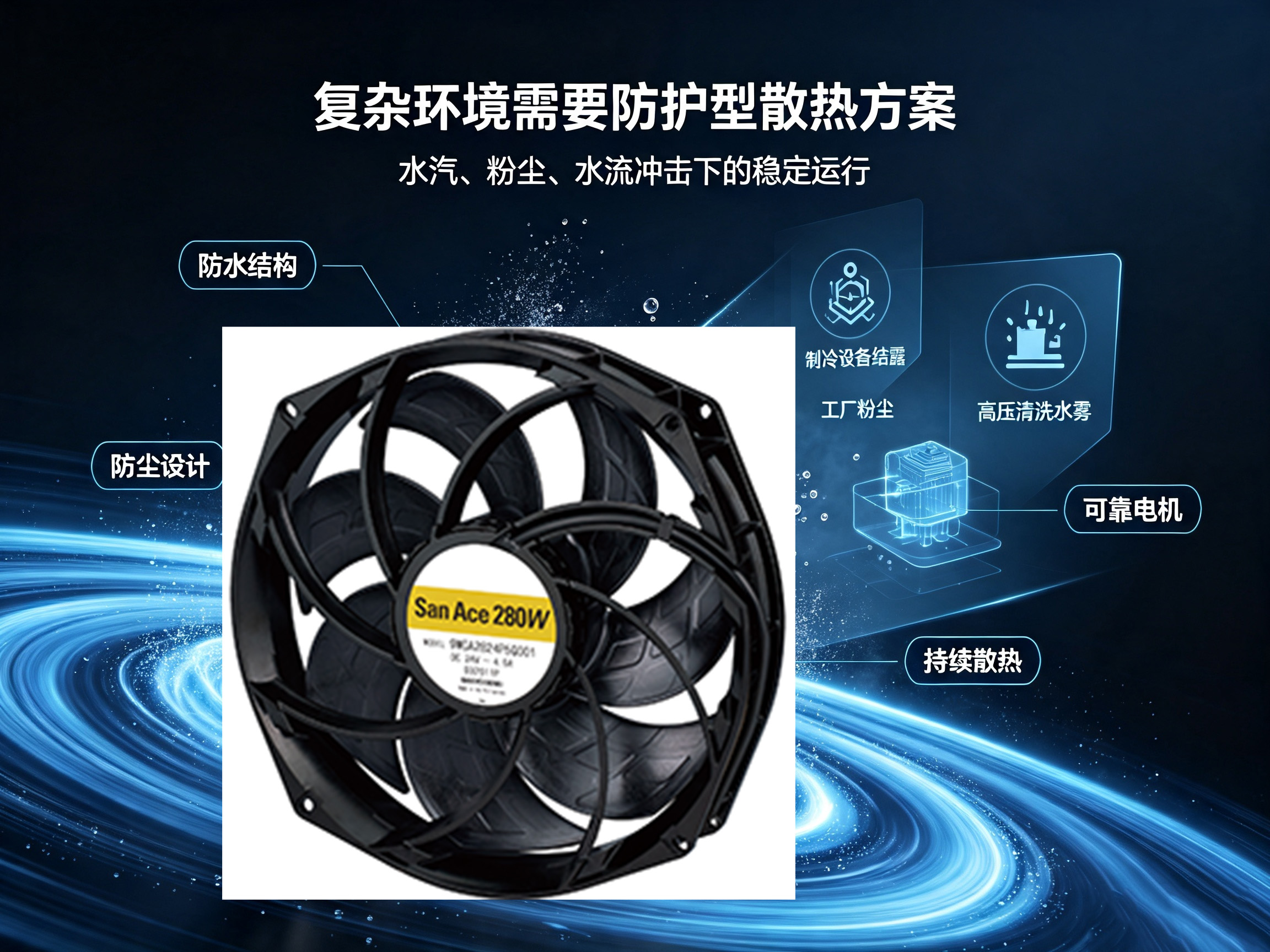

1. Why Do Industrial Equipment Require Protected Cooling Fans?

As industrial equipment becomes more compact and powerful, internal heat generation continues to increase.

However, many industrial systems do not operate in clean and controlled environments. Instead, cooling fans may face various challenges such as:

1. Condensation and Humidity Changes

In refrigeration and cooling systems:

• Temperature changes rapidly

• Humidity levels can be high

• Condensation may occur

When moisture enters conventional fans, it may affect:

• Motor components

• Electronic circuits

• Electrical connections

resulting in reduced operational reliability.

2. Dusty Industrial Environments

Industrial facilities may contain:

• Dust particles

• Metal particles

• Airborne contaminants

Over long periods of operation, dust accumulation may:

• Affect electronic components

• Reduce cooling efficiency

• Increase operating load

3. Equipment Cleaning Environments

Industries such as food processing and cold-chain logistics often require regular equipment cleaning.

Cooling fans installed in these environments need higher protection levels to reduce risks caused by water exposure.

Therefore, for these applications:

Splash proof, dust-resistant, and highly reliable industrial fans are becoming essential components of modern thermal management systems.

2. Risks of Using Conventional Cooling Fans in Harsh Environments

Standard DC cooling fans are generally designed for normal industrial environments.

When used in more demanding conditions, they may encounter issues such as:

For applications including:

✔ Refrigeration systems
✔ Outdoor equipment
✔ Industrial cooling units
✔ High-humidity HVAC systems

a standard cooling fan may not provide sufficient protection.

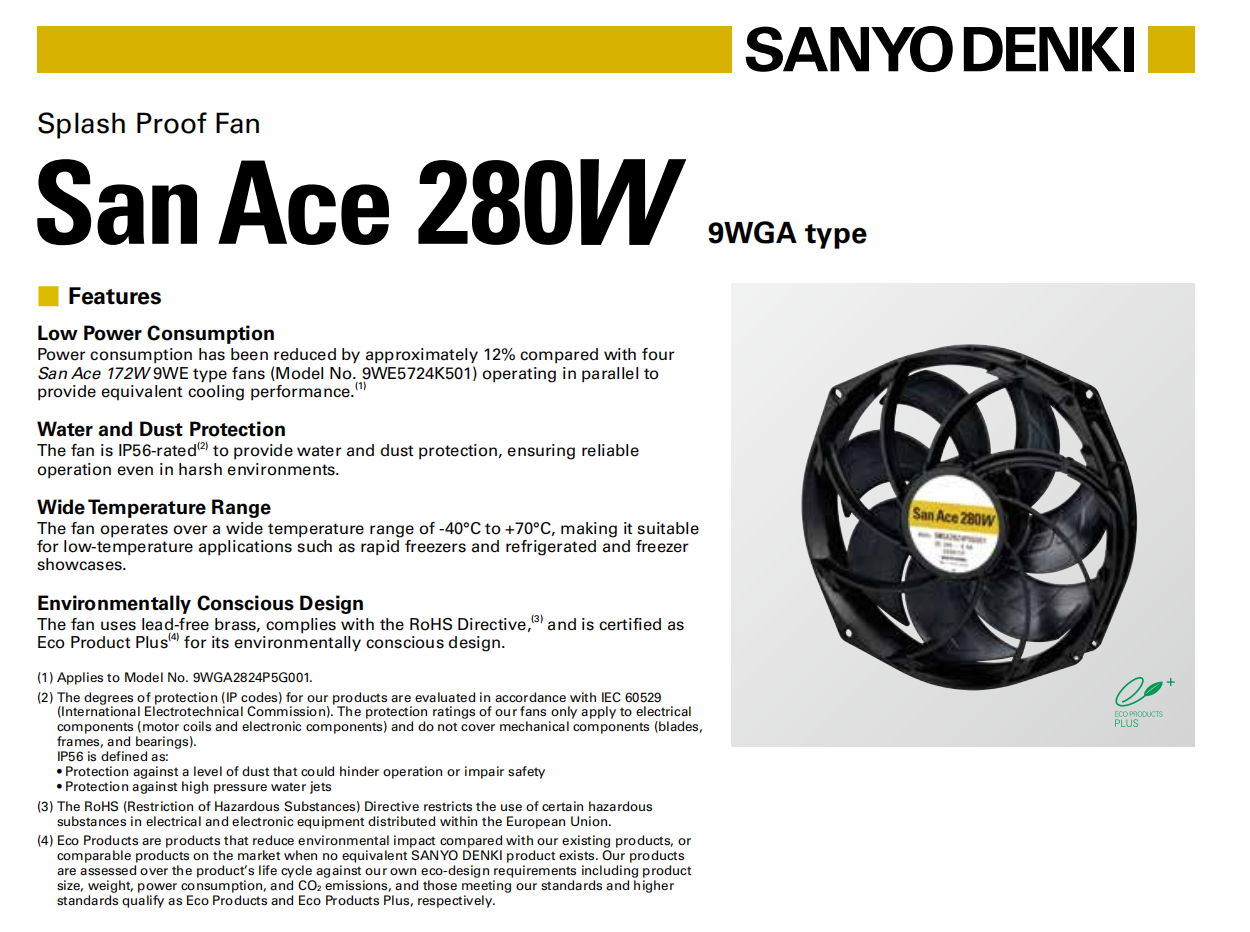

3. San Ace 280W 9WGA: IP56 Protected Cooling Solution for Industrial Applications

To meet the requirements of harsh environments, SANYO DENKI developed:

San Ace 280W 9WGA Splash Proof DC Fan

The key features include:

1️⃣ IP56 Dust and Water Protection

The San Ace 280W 9WGA features:

IP56 protection rating

which provides:

✔ Protection against dust levels that could interfere with operation
✔ Protection against high-pressure water jets

This makes the fan suitable for industrial environments exposed to moisture, dust, and cleaning processes.

According to IEC 60529 standards, the IP protection rating applies mainly to:

• Motor coils

• Electronic components

The mechanical components, including:

• Blades

• Frame

• Bearings

are not included in the IP protection evaluation.

4. San Ace 280W 9WGA Performance Specifications

The San Ace 280W 9WGA adopts:

φ280×50 mm Large-Size Axial Fan Structure

providing strong airflow circulation capability.

Main specifications:

With:

 29.0 m³/min high airflow
 350 Pa high static pressure
 110 W efficient operation

the San Ace 280W 9WGA provides reliable cooling performance for large industrial systems.

5. Low Power Consumption Design for Efficient Industrial Cooling

Besides its protection capability, the San Ace 280W 9WGA also features energy-efficient operation.

According to SANYO DENKI testing:

One San Ace 280W 9WGA can replace four San Ace 172W 9WE fans operating in parallel

Under equivalent cooling performance conditions:

✅ Cooling capability is maintained
✅ Number of fans is reduced
✅ Power consumption is reduced by approximately 12%

For equipment manufacturers, this helps achieve:

The San Ace 280W 9WGA delivers:

High reliability + High efficiency + Lower energy consumption

for industrial cooling applications.

6. PWM Control Improves Cooling Efficiency

The San Ace 280W 9WGA series supports:

PWM Speed Control + Pulse Sensor Function

The equipment controller can adjust fan speed according to actual thermal conditions.

Example:

Advantages of PWM control:

✔ Reduces unnecessary high-speed operation
✔ Lowers system noise
✔ Improves energy efficiency
✔ Extends fan service life

PWM specifications:

7. Wide Temperature Operation for Low-Temperature Refrigeration Systems

Industrial refrigeration equipment often operates under extremely low temperatures.

The San Ace 280W 9WGA supports:

Wide Operating Temperature Range: -40°C to +70°C

Suitable applications include:

✔ Rapid freezing equipment
✔ Refrigerated systems
✔ Freezer showcases
✔ Low-temperature industrial equipment

The fan also features:

• L10 life of 40,000 hours

• Industrial-grade design

• Stable continuous operation capability

for long-term reliability.

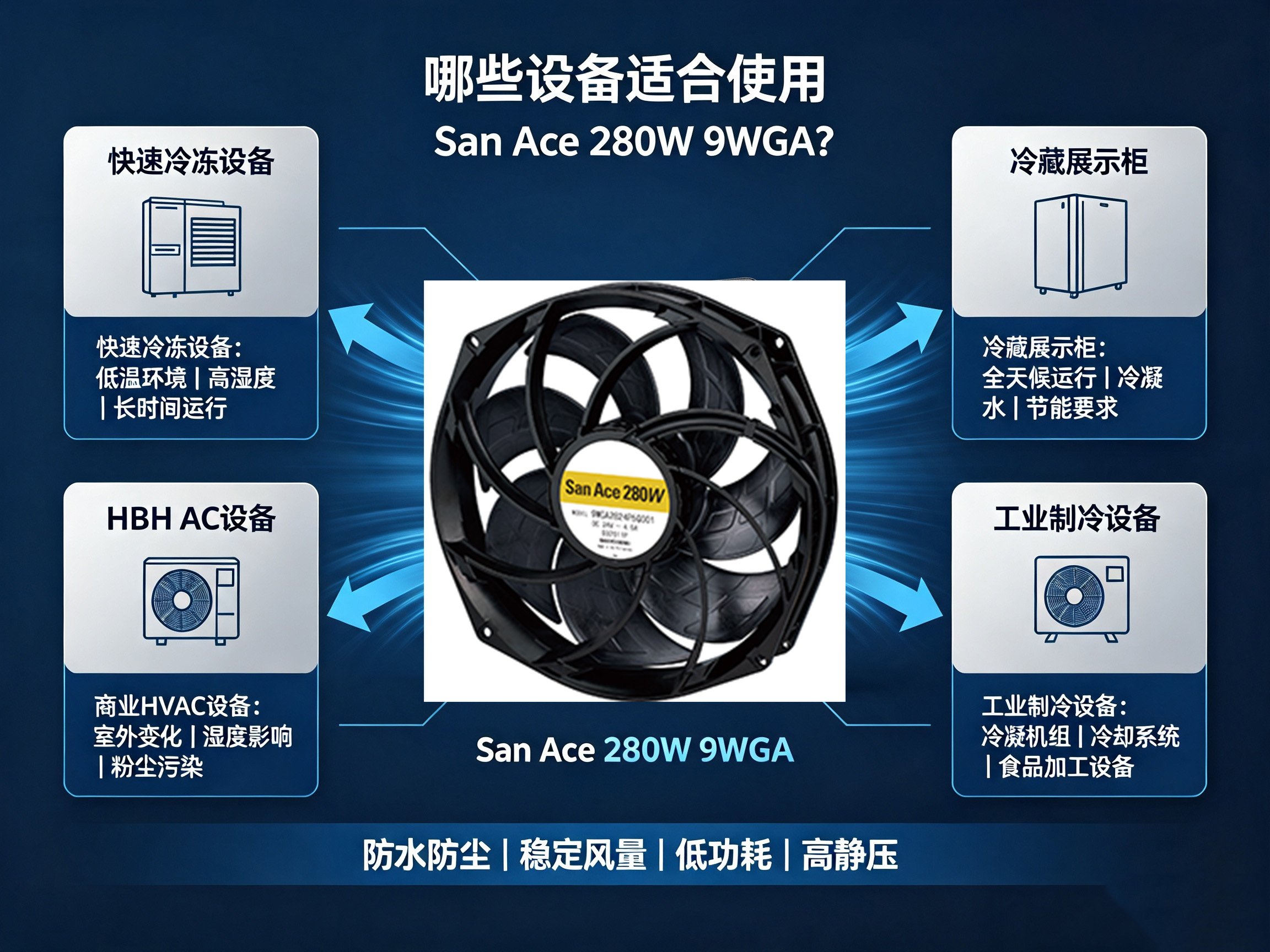

8. Applications of San Ace 280W 9WGA Splash Proof Fan

1. Rapid Freezing Equipment

Application characteristics:

• Low-temperature operation

• High humidity environment

• Continuous operation

Requirements:

✔ Splash proof protection
✔ Stable airflow
✔ High reliability

The San Ace 280W improves internal air circulation efficiency.

2. Refrigerated Showcases

Application characteristics:

• 24/7 operation

• Condensation environment

• Energy-saving requirements

The San Ace 280W provides:

✔ IP56 protection
✔ Low power consumption
✔ Long service life

3. Commercial HVAC Equipment

HVAC systems may face:

• Outdoor environmental changes

• Humidity fluctuations

• Dust exposure

A protected DC fan improves long-term system reliability.

4. Industrial Refrigeration Equipment

Examples include:

• Condensing units

• Industrial cooling systems

• Food processing equipment

These applications require:

✔ Large airflow
✔ High static pressure
✔ Protection against harsh environments

The San Ace 280W provides a complete cooling solution.

9. Advantages of Choosing SANYO DENKI San Ace 280W 9WGA

For equipment engineers, cooling fan selection requires consideration of more than airflow specifications.

Important factors include:

✔ Cooling performance
✔ Environmental protection
✔ Power efficiency
✔ Control functions
✔ Product lifetime

San Ace 280W 9WGA advantages:

Conclusion: IP56 Splash Proof Cooling Fan Enhances Industrial Equipment Reliability

In harsh industrial environments, cooling systems must solve more than heat dissipation challenges.

They must also withstand:

✔ Moisture
✔ Dust
✔ Low temperatures
✔ Long-term continuous operation

The SANYO DENKI San Ace 280W 9WGA Splash Proof DC Fan combines:

 IP56 dust and water protection
 φ280×50 mm large-size design
 29.0 m³/min high airflow performance
 350 Pa high static pressure capability
 -40°C to +70°C wide temperature operation
 PWM intelligent speed control

to provide a reliable cooling solution for:

• Rapid freezing equipment

• Refrigerated showcases

• HVAC systems

• Industrial refrigeration equipment

For manufacturers searching for IP56 waterproof fans, dust-resistant industrial fans, moisture-resistant cooling fans, and high-reliability industrial cooling solutions, the San Ace 280W 9WGA series provides an advanced solution designed for demanding environments.
