SANYO DENKI San Ace 280 9GA Low Power DC Fan | 280mm High Airflow Industrial Cooling Fan

SANYO DENKI San Ace 280 Series Low Power Consumption DC Fan Released: Large 280×50 mm Design Improves Industrial Equipment Cooling Efficiency

San Ace 280 9GA DC Fan Delivers High Airflow, Low Power Consumption, and Efficient Cooling Solutions for Large Industrial Equipment

As industrial equipment continues to evolve toward higher power density, greater integration, and longer operating cycles, thermal management has become increasingly important.

In applications such as rapid freezers, refrigerated showcases, freezer displays, and commercial HVAC equipment, cooling systems are required to provide:

✔ High airflow performance
✔ Stable cooling capability
✔ Lower operating power consumption
✔ Long service life
✔ Reliable operation under demanding environments

To address these challenges, SANYO DENKI has developed the San Ace 280 9GA series low power consumption DC cooling fan.

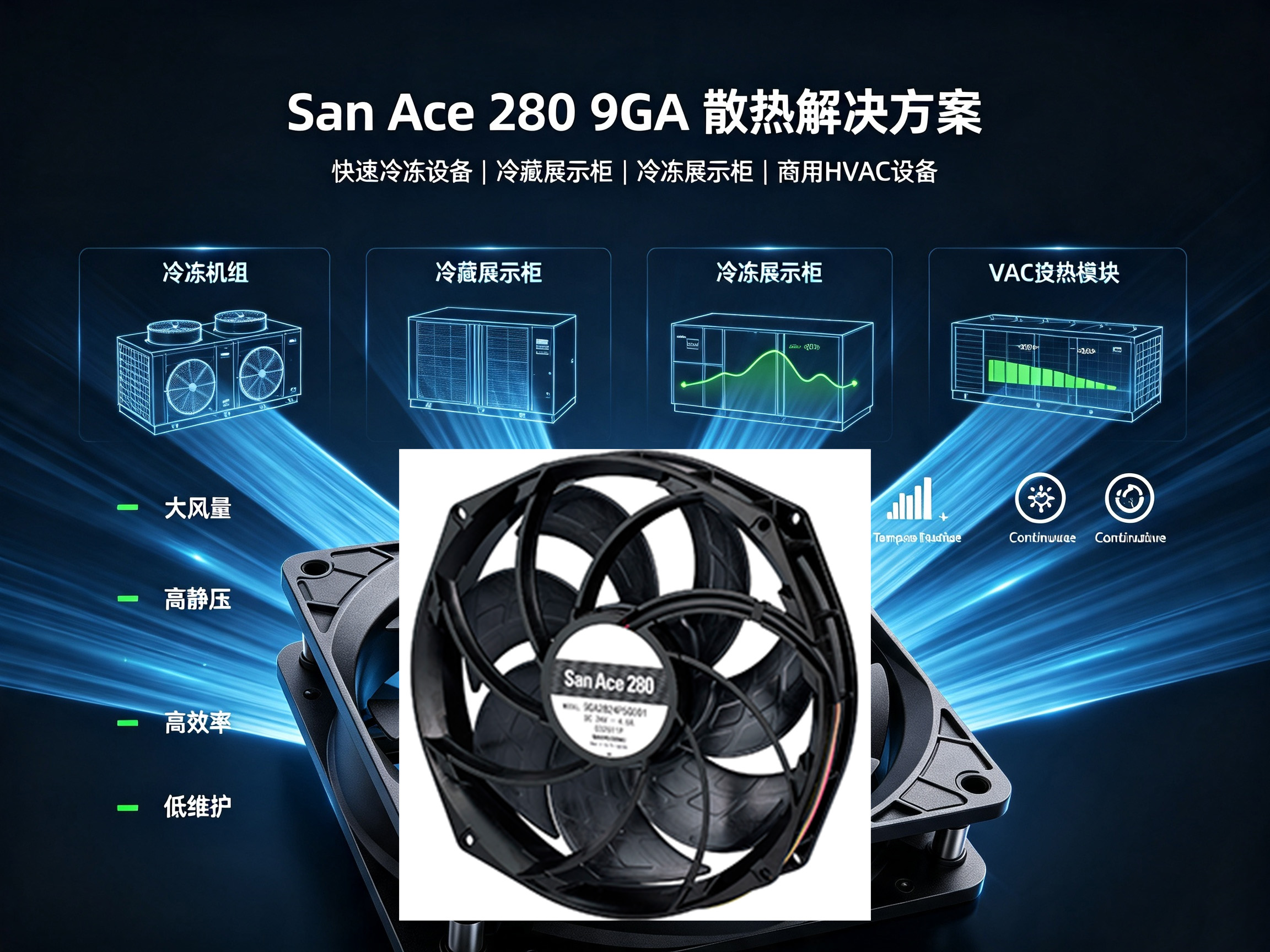

Featuring a φ280×50 mm large-size axial fan design, the San Ace 280 9GA combines high airflow performance, high static pressure capability, and energy-efficient operation, providing an optimized cooling solution for large industrial equipment.

1. Increasing Cooling Requirements for Large Industrial Equipment

Modern industrial equipment generates more heat due to higher processing power, increased electrical density, and continuous operation.

Cooling systems used in these applications must maintain stable performance under demanding conditions.

Rapid Freezing Equipment

Rapid freezing systems require continuous air circulation to maintain efficient heat exchange.

Cooling fans must provide:

• Stable airflow output

• Reliable operation at low temperatures

• Long-term continuous running capability

Insufficient airflow may reduce cooling efficiency and affect equipment performance.

Refrigerated and Freezer Showcases

Commercial refrigeration equipment often operates continuously for extended periods.

For these systems, cooling fans need to achieve:

✔ High reliability
✔ Energy-efficient operation
✔ Reduced maintenance requirements

Reducing fan power consumption can significantly lower long-term operating costs.

Commercial HVAC Equipment

HVAC systems rely on effective airflow to improve heat exchanger performance.

For large HVAC units:

Low airflow → Reduced heat exchange efficiency
High power consumption → Increased operating costs

Therefore, high-efficiency DC fans with large airflow capability are becoming an important choice for modern HVAC designs.

2. Limitations of Traditional Multi-Fan Cooling Solutions

Traditionally, large industrial equipment often uses multiple medium-size fans connected in parallel to achieve sufficient airflow.

For example, several 172 mm class DC fans may be combined to meet cooling requirements.

However, this approach has several disadvantages:

For equipment that operates continuously, such as refrigeration systems and HVAC units, improving fan efficiency is essential.

This has created demand for large-size, high-efficiency DC cooling fans.

3. San Ace 280 9GA: A New Cooling Solution with Large-Size DC Fan Technology

To meet the increasing demand for efficient industrial cooling, SANYO DENKI developed the:

San Ace 280 9GA Series DC Cooling Fan

The fan adopts a:

φ280×50 mm Large-Diameter Axial Fan Design

Compared with conventional smaller fans, a larger impeller can move more air while maintaining efficient operation.

Key specifications:

With:

 Large airflow capacity
 High static pressure performance
 Industrial-grade reliability

the San Ace 280 9GA is suitable for demanding cooling applications.

4. Why Can a Large 280 mm Fan Reduce Power Consumption?

A common question during cooling system design is:

“Does a larger fan always consume more power?”

In many industrial applications, the answer is no.

Under the same cooling performance requirements, a larger and more efficient fan can reduce total system energy consumption.

According to SANYO DENKI testing:

The San Ace 280 9GA can replace four San Ace 172W 9WE type fans operating in parallel.

Under equivalent cooling performance conditions:

✅ Cooling performance is maintained
✅ Number of fans is reduced
✅ Power consumption is reduced by approximately 12%

Benefits for equipment manufacturers include:

Therefore, a 280 mm DC fan can provide both high airflow performance and energy-saving advantages.

5. PWM Control Enables Intelligent Energy-Saving Cooling

Modern industrial equipment requires smarter thermal management.

The San Ace 280 9GA series supports:

PWM Speed Control

The equipment control system can adjust fan speed according to actual cooling requirements.

For example:

PWM control provides:

✔ Reduced unnecessary power consumption
✔ Lower operating noise
✔ Improved energy efficiency
✔ Extended fan service life

The fan also includes pulse sensor functionality, allowing real-time monitoring of fan operation status.

6. Wide Operating Temperature Range for Harsh Industrial Environments

Industrial cooling systems often operate under challenging temperature conditions, especially refrigeration equipment.

The San Ace 280 9GA series supports:

Wide Operating Temperature Range: -40°C to +70°C

This makes it suitable for:

✔ Low-temperature refrigeration systems
✔ Commercial cooling equipment
✔ Industrial temperature-control systems

The fan also features:

• L10 life of 40,000 hours

• Industrial-grade construction

• Stable continuous operation capability

providing long-term reliability for critical equipment.

7. Applications of San Ace 280 9GA Series

1. Rapid Freezing Equipment

Application requirements:

• High airflow circulation

• Low-temperature operation

• Continuous running capability

The San Ace 280 improves airflow performance and supports efficient refrigeration operation.

2. Refrigerated Showcases

Application requirements:

• Energy-saving operation

• High reliability

• Low maintenance cost

The low power consumption design helps reduce long-term operating expenses.

3. Freezer Showcases

Application requirements:

• Stable heat exchange

• Wide temperature adaptability

• Continuous operation

The large-size fan design improves internal airflow circulation.

4. Commercial HVAC Equipment

Application requirements:

• High airflow capacity

• High static pressure

• Efficient operation

The San Ace 280 9GA provides an effective cooling solution for large heat exchanger systems.

8. Advantages of Choosing SANYO DENKI San Ace 280 9GA

For equipment engineers, selecting a cooling fan requires more than checking airflow specifications.

Important factors include:

✔ Cooling efficiency
✔ Power consumption
✔ Control functions
✔ Operating environment
✔ Product lifetime

San Ace 280 9GA advantages:

Conclusion: San Ace 280 Supports the Next Generation of Efficient Industrial Cooling

As industrial equipment continues to demand higher efficiency, lower energy consumption, and improved reliability, traditional multi-fan cooling systems are gradually being replaced by:

large-size, high-efficiency, intelligent-control DC fan solutions.

The SANYO DENKI San Ace 280 9GA series provides:

 φ280×50 mm large-size structure
 29.0 m³/min high airflow performance
 350 Pa high static pressure capability
 Approximately 12% lower power consumption compared with equivalent multi-fan solutions
 PWM intelligent speed control
 Wide operating temperature range from -40°C to +70°C

It delivers a reliable and efficient thermal management solution for:

• Rapid freezing equipment

• Refrigerated showcases

• Freezer showcases

• Commercial HVAC systems

• Industrial cooling equipment

For manufacturers looking for low power consumption DC fans, high airflow industrial fans, and high-efficiency cooling solutions, the SANYO DENKI San Ace 280 9GA series provides an advanced option for next-generation industrial thermal management.
