SANYO DENKI San Ace 9BMC24P2G001: 24V High Static Pressure Cooling Fan for High-Density Equipment

As electronic equipment becomes increasingly compact while processing power and heat generation continue to increase, thermal management has become an important part of equipment design. Servers, storage systems, communication infrastructure, and industrial electronic equipment often need to dissipate substantial amounts of heat through highly restricted internal airflow paths.

In these applications, selecting a cooling fan based only on maximum airflow can lead to an inaccurate assessment of the actual cooling performance. When the system contains heat sinks, filters, grilles, narrow air channels, or densely arranged components, the fan must be capable of maintaining airflow against system resistance.

The SANYO DENKI San Ace 9BMC24P2G001 is a 24V DC cooling fan designed in a compact 97×33 mm blower configuration, combining high airflow capacity with high static pressure for demanding thermal management applications.

Compact 97×33 mm Blower Configuration

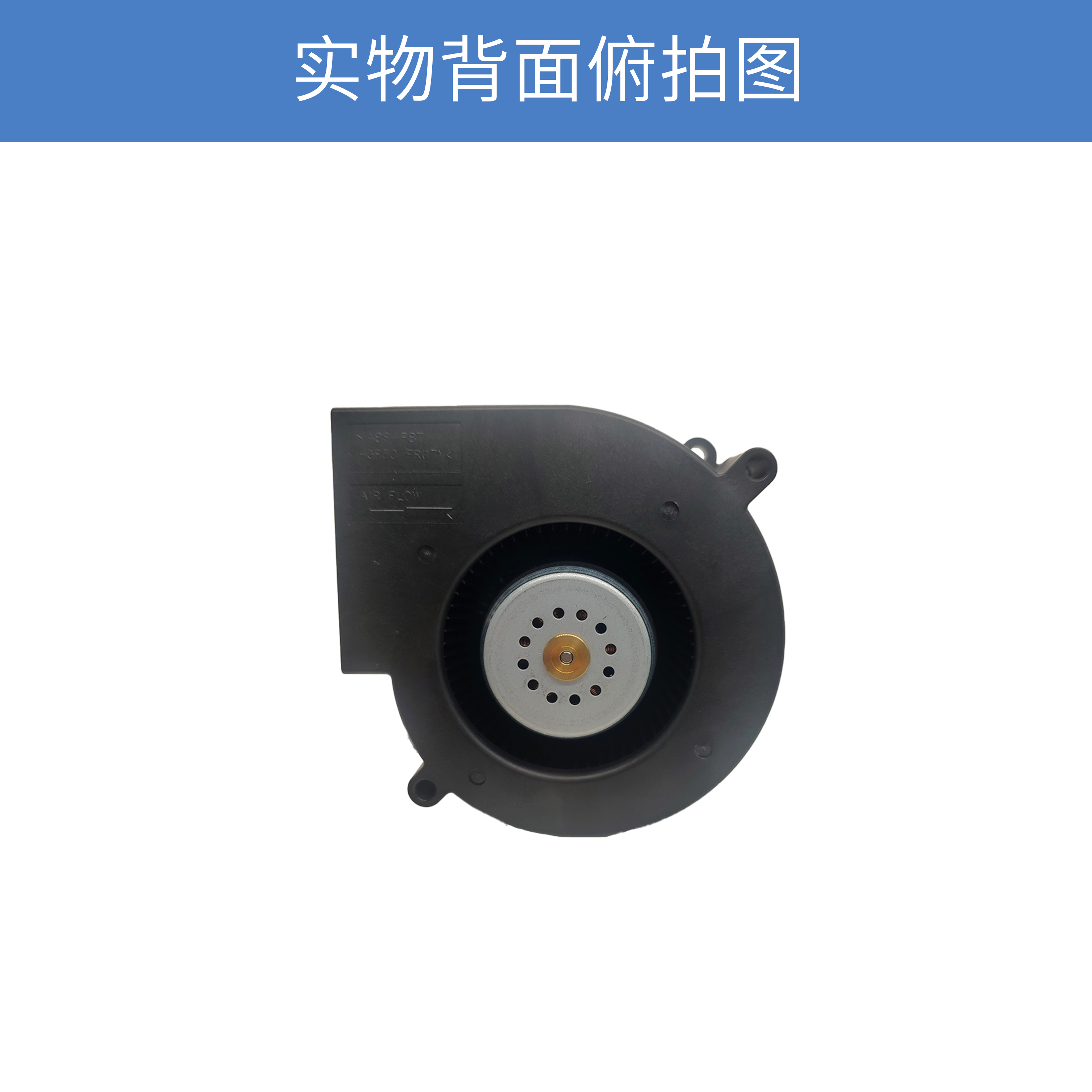

The 9BMC24P2G001 uses a 97×33 mm compact blower design.

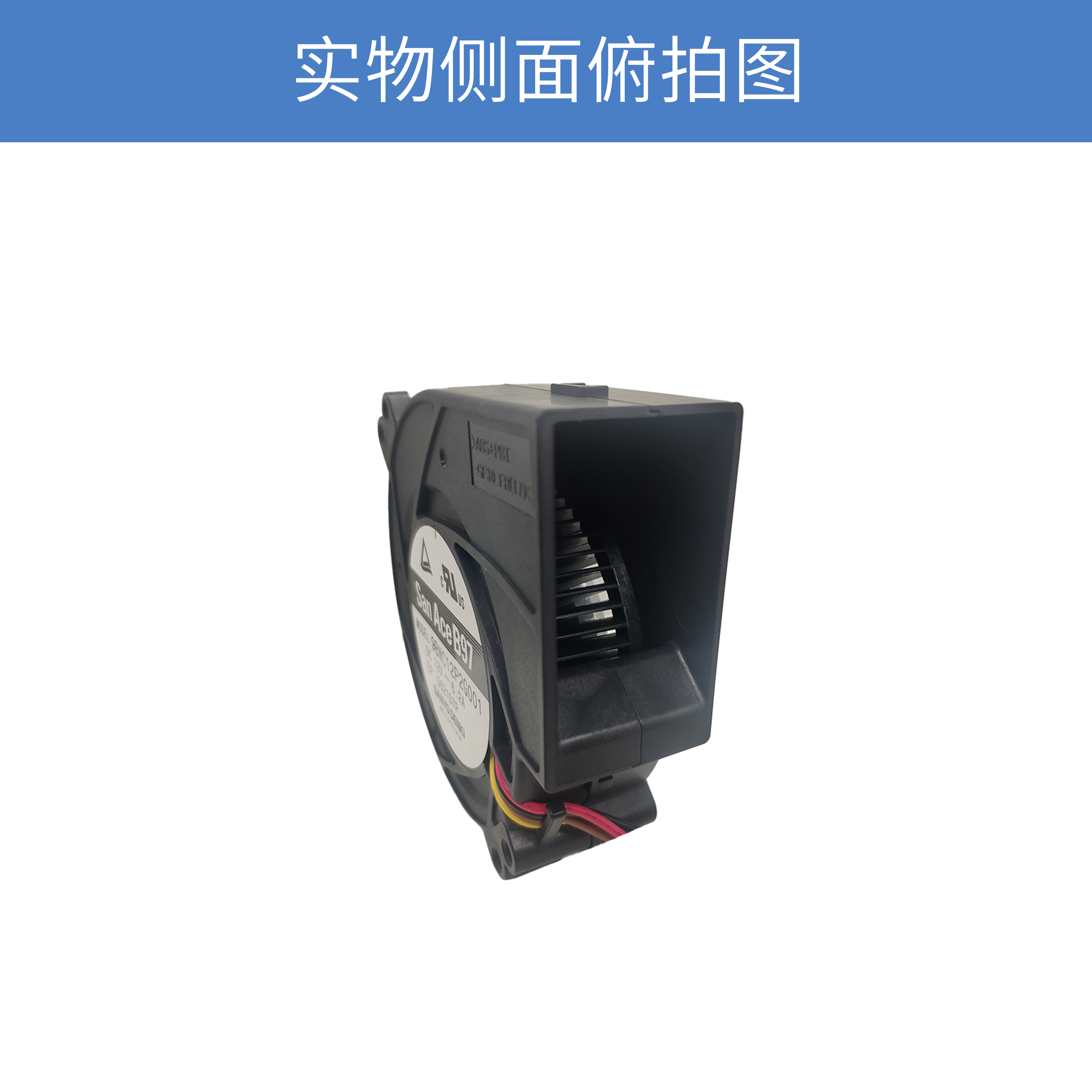

Unlike a conventional axial fan, a blower can change the direction of airflow within the fan structure. Air enters through the intake and is discharged approximately 90 degrees from the intake direction.

This configuration can simplify airflow-path design in compact equipment because an external duct may not be necessary to redirect the air.

For equipment designers, the compact form factor can also provide greater flexibility when arranging heat-generating components, heat sinks, circuit boards, and internal airflow channels.

High Static Pressure up to 1,950 Pa

A major characteristic of the 9BMC24P2G001 is its maximum static pressure of 1,950 Pa.

Static pressure becomes increasingly important when a cooling system has significant airflow resistance. In a real device, air must pass through the entire system rather than moving under free-air conditions.

Potential sources of airflow resistance include:

• High-density heat sinks

• Narrow ventilation channels

• Protective grilles

• Air filters

• Long internal ducts

• Compact component layouts

• Multiple airflow restrictions

For this reason, a cooling fan with a high maximum airflow rating is not necessarily the best choice for a high-resistance system.

The actual operating point should be evaluated by comparing the fan performance curve with the system resistance curve.

65.3 CFM Maximum Airflow

The San Ace 9BMC24P2G001 provides a maximum airflow of 65.3 CFM, equivalent to approximately 1.85 m³/min.

This airflow capacity provides a strong cooling capability for compact electronic equipment with substantial heat generation.

However, maximum airflow represents the fan's free-air performance. Once the blower is installed inside equipment, actual airflow depends on system impedance.

A proper thermal design should therefore consider:

Heat generation → required cooling capacity → system airflow requirement → system impedance → fan operating point

This approach provides a more realistic basis for cooling fan selection than comparing maximum CFM values alone.

24V DC Power Supply and 74.4 W Rated Power

The 9BMC24P2G001 is designed for a 24V DC power supply.

Its rated electrical specifications include:

The 24V configuration is particularly relevant to equipment platforms that already use 24V DC power architectures.

Using a cooling fan that matches the equipment's existing DC power system can simplify power distribution and control design.

PWM Control for Variable Cooling Demand

The 9BMC24P2G001 supports PWM control, allowing the fan speed to be adjusted according to the cooling requirements of the equipment.

Not every electronic device operates at a constant thermal load. A server, communication system, or industrial controller may experience substantial changes in heat generation depending on workload and operating conditions.

A PWM-controlled cooling strategy can allow the system to respond to these changes.

For example:

Lower thermal load → lower fan speed

Higher thermal load → higher fan speed

This approach can help engineers balance cooling capacity with the equipment's acoustic and energy requirements.

The actual PWM control strategy should be established according to the thermal characteristics and control architecture of the target equipment.

Pulse Sensor for Fan Monitoring

The 9BMC24P2G001 is equipped with a pulse sensor.

Fan monitoring is particularly useful in equipment where cooling performance is directly related to system reliability.

A controller can use the pulse signal to monitor fan operation and identify abnormal conditions such as fan stoppage or unexpected changes in rotational speed.

This allows the cooling fan to become part of the equipment's overall monitoring and protection strategy rather than functioning as an isolated component.

Expected Service Life for Continuous-Operation Equipment

The expected service life of the 9BMC24P2G001 is specified as:

• 40,000 hours at 60°C

• 70,000 hours at 40°C

These figures demonstrate the importance of considering operating temperature when evaluating cooling fan service life.

For equipment designed for continuous operation, engineers should consider not only the fan's rated life but also the actual temperature surrounding the fan during operation.

Fan placement, airflow direction, enclosure temperature, component heat generation, and system ventilation can all affect the actual operating environment.

Applications for High-Density Electronic Equipment

The performance characteristics of the 9BMC24P2G001 make it suitable for applications where compact installation and high static pressure are important.

Server Cooling

Servers contain processors, memory, storage devices, power supplies, and other heat-generating components within a limited enclosure.

The high static pressure capability of a blower can help maintain airflow through restricted cooling paths.

Storage Systems

Storage systems may require continuous cooling for multiple drives and electronic components.

The compact 97×33 mm configuration can be considered where internal installation space is limited and airflow resistance is relatively high.

Communication and Base Station Equipment

Communication equipment often operates continuously and may generate substantial heat within compact enclosures.

The combination of high static pressure, PWM control, and pulse sensing can support active thermal management and fan monitoring.

Industrial Electronic Equipment

Industrial control systems, power electronics, test equipment, and other electronic devices may have compact internal structures that restrict airflow.

A blower configuration can provide greater flexibility for directing airflow through these confined spaces.

Why Static Pressure Matters in Blower Selection

When comparing cooling fans, maximum airflow is often used as the primary specification.

However, maximum airflow does not tell the complete story.

A fan's actual airflow is determined by its operating point within the equipment. As system resistance increases, the available airflow decreases.

This is why static pressure becomes an important selection parameter for high-density equipment.

The 9BMC24P2G001 provides a maximum static pressure of 1,950 Pa, making it a high-static-pressure blower option for systems where airflow resistance cannot be ignored.

Engineers should still verify the required operating point using the fan performance curve and the actual system impedance of the target equipment.

Conclusion

The SANYO DENKI San Ace 9BMC24P2G001 combines a compact 97×33 mm blower structure, 24V DC operation, 65.3 CFM maximum airflow, and 1,950 Pa maximum static pressure.

With a rated speed of 8,200 min⁻¹, PWM control, and a pulse sensor, the model is designed for demanding cooling applications where both thermal performance and fan monitoring are important.

For servers, storage systems, communication equipment, and other high-density electronic devices, the 9BMC24P2G001 provides a compact approach to managing airflow through systems with significant internal resistance.

When selecting a cooling fan for a real application, engineers should evaluate the complete thermal system rather than relying on a single specification. Heat load, airflow requirement, static pressure, system impedance, operating temperature, control method, noise, installation space, and expected service life should all be considered together to achieve an appropriate cooling solution.
