San Ace DC Fans for Fundus Cameras | Thermal Management and Image Stability

1. Introduction: Why Thermal Management Matters in Fundus Cameras

A fundus camera is a precision ophthalmic imaging device used to capture detailed images of the retina and other structures at the back of the eye. Image quality depends not only on the optical system, illumination source, image sensor, and image-processing algorithms, but also on the thermal stability of the entire device.

During operation, heat can be generated by illumination components, image sensors, processors, power-supply circuits, and other electronic components. If this heat is not effectively dissipated, temperature changes may affect component operating conditions and contribute to image noise, mechanical or optical drift, and long-term reliability issues.

For manufacturers of fundus cameras, thermal management is therefore an important part of overall system design. A properly selected cooling fan helps remove heat from critical components, supports a stable internal operating environment, and helps maintain consistent equipment performance.

However, a cooling fan does not directly improve optical resolution or image quality. Its role is to help control heat and support the stable operation of the optical and electronic systems.

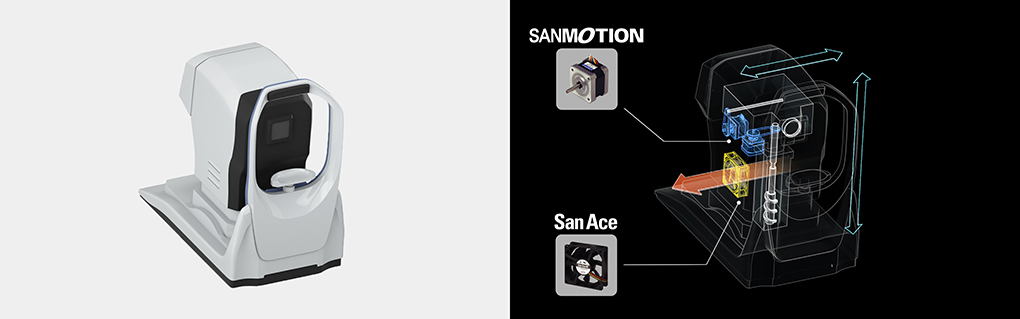

This is where the San Ace DC Fan product range from SANYO DENKI can provide useful thermal-management options for precision medical imaging equipment.

SANYO DENKI's San Ace DC fans are designed for applications that require reliable cooling performance, with product options offering high airflow, high static pressure, low power consumption, low vibration, and low noise.

During product development, factors such as impeller geometry, motor characteristics, airflow performance, and expected service life are considered to meet different equipment requirements.

For fundus camera manufacturers, several characteristics are particularly relevant.

2.1 Compact Cooling for Space-Constrained Equipment

Fundus cameras integrate optical assemblies, illumination systems, imaging sensors, control electronics, and power circuits within a limited enclosure. The available space for cooling components can therefore be restricted.

San Ace DC fans are available in more than 80 frame sizes, with different airflow and static-pressure characteristics. This range gives engineers greater flexibility when selecting a fan that fits the equipment layout and thermal requirements.

For example, 60 mm fans with different frame thicknesses can be evaluated according to available installation space, airflow requirements, and system impedance.

2.2 Balancing Airflow, Static Pressure, and Noise

A fan's free-airflow rating alone does not determine its actual cooling performance inside a device. Airflow resistance from filters, ducts, protective guards, heat sinks, and narrow ventilation openings can reduce the volume of air delivered under real operating conditions.

Static pressure is therefore an important selection parameter, particularly when the internal airflow path is restricted.

At the same time, fundus cameras may be used in clinical examination rooms where acoustic comfort is important. Selecting a fan with an appropriate balance of airflow, static pressure, power consumption, and noise can help engineers meet both thermal and acoustic requirements.

San Ace offers several product categories, including:

• DC Fans

• Low Power Consumption Fans

• Silent Fans

• Splash Proof Fans

• Oil Proof Fans

• Long Life Fans

• Counter Rotating Fans

• Blowers

The most suitable category depends on the actual thermal load, ventilation design, environmental conditions, and acoustic targets of the equipment.

2.3 Supporting Long-Term Operating Reliability

Medical imaging equipment may be used repeatedly throughout the working day. Fan reliability can affect equipment availability and maintenance requirements.

San Ace models offer different expected service-life ratings. Engineers should evaluate these ratings alongside operating temperature, fan speed, installation orientation, airflow resistance, and the expected duty cycle of the equipment.

A fan's rated service life is not a guarantee of the service life of the complete medical device. The final result depends on the operating environment and the design of the entire system.

2.4 Fan Monitoring and Speed Control

Depending on the selected model, San Ace DC fans can support pulse sensors, locked-rotor sensors, low-speed sensors, or PWM speed control.

These functions can help equipment designers implement fan-speed monitoring, abnormal-operation detection, and demand-based cooling.

The available functions vary by model. Engineers should confirm the relevant product specification before incorporating a particular monitoring or control function into the system design.

3. San Ace Fan Selection Examples for Fundus Cameras

The following examples illustrate how different San Ace models could be evaluated for fundus camera thermal management. They are engineering selection scenarios, not claims of confirmed deployment in a particular medical device.

The final selection should be based on measured heat dissipation, the internal airflow path, acoustic requirements, available installation space, and thermal testing of the complete equipment.

Example 1: 9GA0612M6001 — Low Power Consumption Fan for Low-Noise, Low-Power Designs

The 9GA0612M6001 is a 60 × 60 × 20 mm Low Power Consumption Fan. It may be considered for designs in which reducing fan power consumption and acoustic output is important, provided that its cooling performance meets the system's thermal requirements.

Key specifications:

Why consider this model?

Its rated power consumption is only 0.6 W, and its specified noise level is 18 dBA. These characteristics make it worth evaluating in applications where fan power and noise are key design considerations.

However, the relatively low maximum static pressure of 20 Pa means that the installed cooling performance must be checked carefully if the airflow path includes restrictive grilles, filters, narrow ducts, or dense heat sinks.

Potential application scenario: a fundus camera subsystem with a relatively modest heat load and a sufficiently open ventilation path.

Example 2: 9GA0612P6S001 — Low Power Consumption Fan with Higher Airflow and PWM Control

The 9GA0612P6S001 is a 60 × 60 × 20 mm Low Power Consumption Fan with a higher rated speed and greater maximum airflow and static pressure than the 9GA0612M6001.

It may be evaluated for a subsystem with a greater heat load or a more demanding airflow path. Its PWM control capability also provides an option for adjusting fan speed according to the system's thermal-management strategy.

Key specifications:

Why consider this model?

Compared with the 9GA0612M6001, this model offers higher maximum airflow and static pressure. It may therefore be more suitable for evaluation where additional cooling capacity is required.

PWM control allows the equipment controller to adjust fan speed when the system supports a compatible control signal and the implementation follows the fan's specified operating requirements. This can help balance cooling demand and acoustic output across different operating conditions.

The trade-off is higher rated power consumption and a higher specified noise level than the lower-speed model.

Potential application scenario: a fundus camera with greater heat generation around its processing electronics or power circuits, where adjustable fan speed is useful.

Example 3: 9S0612H401 — Silent Fan for Noise-Sensitive Equipment

The 9S0612H401 belongs to the San Ace Silent Fan series. It has a 60 × 60 × 25 mm frame and a specified noise level of 24 dBA.

This model may be considered when acoustic performance is a major design priority but the system still requires meaningful forced-air cooling.

Key specifications:

Why consider this model?

The Silent Fan series provides an option for designs where fan noise needs to be carefully managed. With a specified noise level of 24 dBA, the 9S0612H401 may be worth evaluating for equipment used in quiet clinical environments.

Its maximum airflow and static-pressure ratings are higher than those of the 9GA0612M6001, although lower than those of the 9GA0612P6S001. Whether it can maintain the required component temperatures depends on the actual operating point within the installed system.

Potential application scenario: a fundus camera where acoustic comfort is important and the required cooling capacity falls within the fan's verified operating range.

4. Comparing the Three Models

The following table summarizes the key differences between the three example models.

Note: Maximum airflow and maximum static pressure are separate performance ratings and generally occur at different operating points. They should not be interpreted as simultaneous performance values. The noise figures are the specified product ratings; actual acoustic performance in a complete device depends on installation, operating conditions, vibration transmission, and enclosure design.

How Should Engineers Choose Between These Models?

• For low power consumption and low noise: evaluate the 9GA0612M6001 first, provided its airflow and static-pressure performance is sufficient.

• For greater cooling capacity and speed adjustment: evaluate the 9GA0612P6S001, especially when PWM control is required.

• For a noise-sensitive design: evaluate the 9S0612H401, while confirming that its installed operating point can meet the thermal requirements.

These are preliminary selection directions rather than universal recommendations. The final choice should be determined by thermal measurements and fan performance under the actual system resistance.

5. Using Fan Sensors and Control Functions to Improve System Monitoring

A cooling fan is part of the thermal-management system, but its operating status also matters. If a fan slows down or stops unexpectedly, the resulting loss of airflow may cause temperatures to rise.

Depending on the model, San Ace DC fans can provide several monitoring and control options.

5.1 Pulse Sensor: Monitoring Fan Speed

A pulse sensor outputs a signal associated with fan rotation. The equipment controller can use this signal to monitor rotational speed and identify certain abnormal operating conditions, such as a speed that falls outside the expected range.

In a fundus camera, this function may support maintenance alerts or system-level fan-speed monitoring.

However, a pulse signal alone does not necessarily identify every possible failure mode. The controller must interpret the signal according to the fan specification and the equipment's control logic.

5.2 Locked-Rotor Sensor: Detecting a Stalled Fan

Some fan models offer a locked-rotor sensor function. This can help the controller detect a rotor-stall condition and respond according to the system's fault-handling strategy.

The function is model-dependent and should not be assumed to be available on every San Ace DC fan.

5.3 Low-Speed Sensor: Identifying Insufficient Rotation

Where supported, a low-speed sensor can help detect fan rotation below a defined threshold. This may be useful when maintaining a minimum airflow level is important.

The threshold, output behavior, and compatible monitoring circuit must be verified against the selected model's specifications.

5.4 PWM Control: Adjusting Cooling to Match Demand

Pulse-width modulation (PWM) is a method of controlling fan speed through a specified control input. In a compatible system, the controller can adjust fan speed according to temperature, workload, or other operating conditions.

For example, the fan may operate at a lower speed when the internal temperature is stable and increase its speed when the thermal load rises.

This approach can help balance cooling performance, power consumption, and acoustic output. Actual results depend on the fan's supported control range, the system's control strategy, and the thermal response of the equipment.

Important: Sensor and control functions are model-specific. Always confirm the selected fan's electrical interface, signal characteristics, control requirements, and supported functions before integrating it into a medical device.

6. A Practical Fan Selection and Validation Process for Fundus Cameras

Selecting a fan based only on its dimensions, rated speed, or maximum airflow can lead to an unsuitable design. A structured engineering process is more reliable.

Step 1: Identify the Main Heat Sources

List the components that generate significant heat, such as the image sensor, image-processing electronics, illumination system, power circuits, and other active components.

Measure or estimate their heat dissipation under representative operating conditions.

Step 2: Define the Thermal Limits

Determine the allowable operating temperatures for critical components and establish the required temperature margins.

The design should account for ambient temperature, duty cycle, ventilation conditions, and the thermal behavior of the enclosure.

Step 3: Evaluate the Airflow Path

Check whether the fan draws cool air into the enclosure or exhausts warm air from it. Identify restrictions such as grilles, filters, ducts, heat sinks, and closely packed components.

Estimate the system's airflow resistance and evaluate the fan's performance curve to identify a suitable operating point.

Step 4: Balance Cooling and Acoustic Performance

Compare candidate models based on airflow, static pressure, power consumption, noise, vibration, and installation constraints.

In a noise-sensitive clinical environment, acoustic testing should be performed on the complete device rather than relying exclusively on the fan's published noise rating.

Step 5: Verify Monitoring and Control Requirements

If the system needs fan-speed monitoring, stalled-fan detection, low-speed detection, or PWM control, confirm that the selected model supports the required function.

Define the controller's response to abnormal fan operation, including warning thresholds and any appropriate protective actions.

Step 6: Test the Complete Device

Validate the design under representative operating conditions, including relevant ambient temperatures, normal and high workloads, and restricted-ventilation scenarios where appropriate.

Measure critical component temperatures and assess image stability, acoustic performance, vibration, and fan operation.

The selected fan should meet the equipment's thermal and reliability requirements with an appropriate engineering margin.

7.  Stable Thermal Management Supports Reliable Ophthalmic Imaging

Fundus cameras depend on the coordinated performance of optical, imaging, electronic, and thermal-management systems. Although a cooling fan cannot directly improve image resolution, effective heat removal can help maintain suitable operating conditions for temperature-sensitive components and support consistent equipment performance.

The San Ace DC Fan range offers several options for this task, including Low Power Consumption Fans for designs that prioritize power efficiency, Silent Fans for noise-sensitive environments, and models with higher airflow or static-pressure capabilities for more demanding cooling requirements.

For engineers developing fundus cameras, the key is to select a fan according to the complete system's thermal load, airflow resistance, acoustic targets, installation space, and monitoring requirements—not simply the highest airflow rating or lowest noise figure.

By combining appropriate fan selection with airflow-path design, temperature monitoring, and full-system validation, equipment manufacturers can develop more reliable thermal-management solutions for precision ophthalmic imaging.
