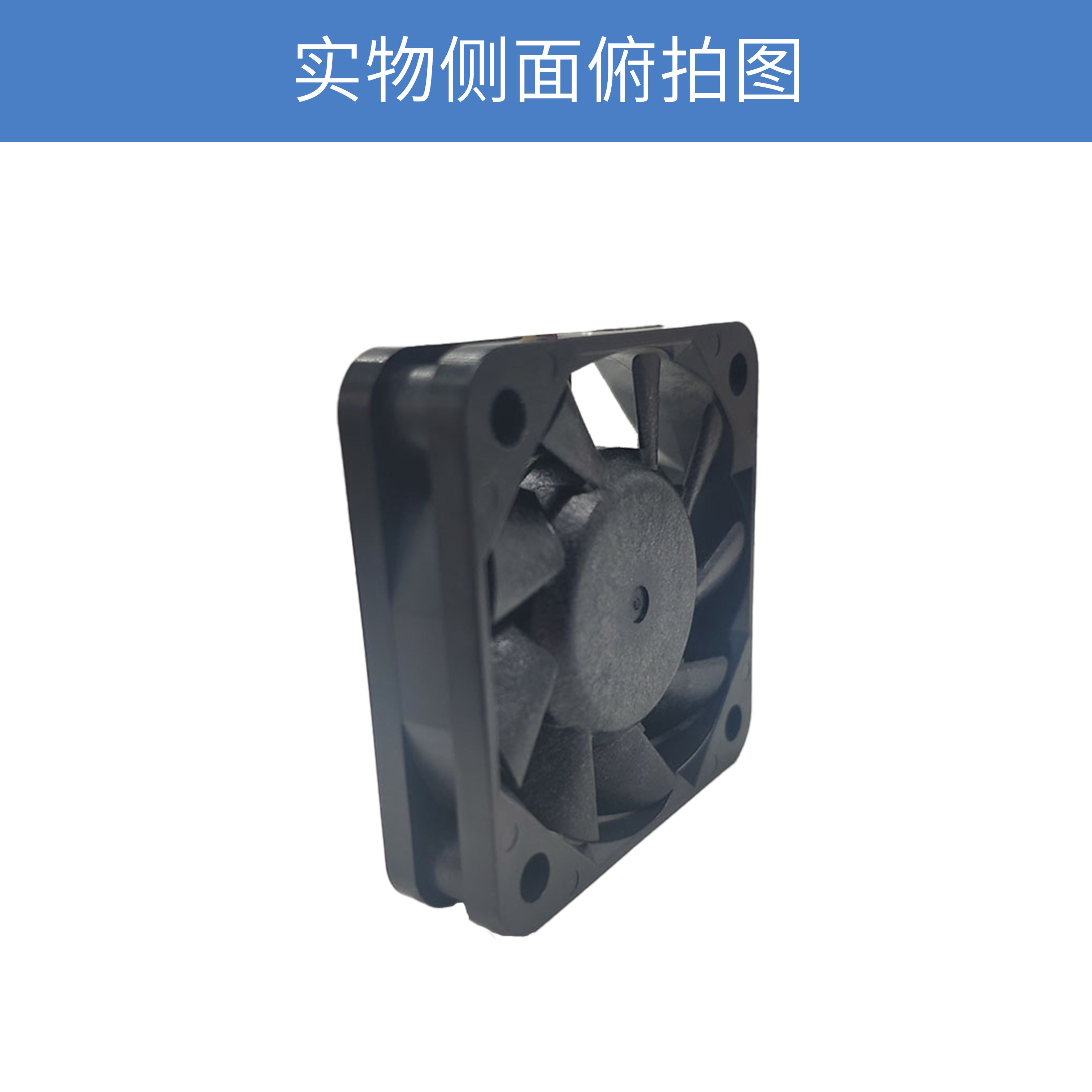

4010 24V DC COOLING FAN

109P0424H901

Brand: SanAce (Japan sanyodenki)
Size:40x40x10mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 3-wire FG
Product description: High-performance Sanyo Denki 109P0424H901 axial cooling fan. Compact 40x40x10mm size, 24V DC operation, 6200 RPM speed, 5.3 CFM airflow, and high static pressure of 41.2Pa. Ideal for server, telecom,
INQUIRY
Product Manual / Specification Sheet Download

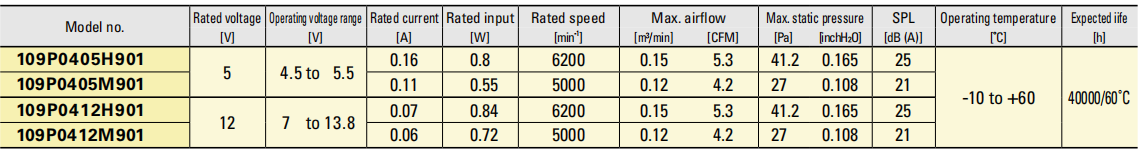

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	109P0424H901	24	20.4~27.6	0.04	0.96	6200	0.15	5.3	41.2		0.165	25

PRODUCT PRESENTATION

Product Overview

The Sanyo Denki 109P0424H901 is a high-performance DC axial fan from the renowned San Ace 40 series. Designed for applications requiring efficient cooling in a compact form factor, this fan delivers a powerful airflow and high static pressure, making it ideal for cooling densely packed electronic components.

With a robust construction and a long expected lifespan, the 109P0424H901 ensures reliable operation in demanding environments. Its 24V DC operation and pulse sensor for speed detection provide flexibility and control for various industrial and commercial applications.

Key Features

High Performance: Delivers a maximum airflow of 5.3 CFM and a high static pressure of 41.2 Pa, ensuring effective cooling even in restrictive environments.
Compact & Lightweight: The standard 40x40x10mm size and lightweight plastic frame (19g) allow for easy integration into space-constrained designs.
Long Service Life: Features an expected lifespan of 40,000 hours at 60°C (and up to 70,000 hours at 40°C), guaranteeing long-term reliability and reduced maintenance costs.
Quiet Operation: Despite its high performance, the fan operates at a relatively low sound pressure level of 25 dB(A).
Speed Monitoring: Equipped with a pulse sensor (2 pulses per revolution) for easy speed monitoring and lock detection.
Wide Operating Temperature: Designed to operate reliably in temperatures ranging from -10°C to +60°C.

Technical Specifications

Specification	Value
Model No.	109P0424H901
Series	San Ace 40

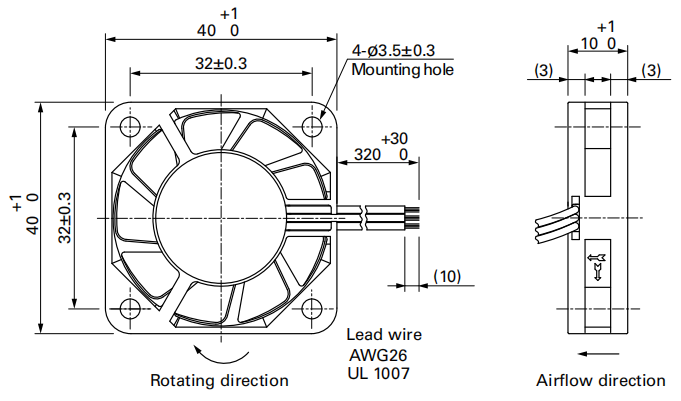

Frame Size	40 x 40 x 10 mm
Rated Voltage	24 V DC
Operating Voltage Range	20.4 to 27.6 V DC
Rated Current	0.04 A
Rated Input Power	0.96 W
Rated Speed	6200 min⁻¹ (RPM)
Maximum Airflow	5.3 CFM (0.15 m³/min)
Maximum Static Pressure	41.2 Pa (0.165 inchH₂O)
Sound Pressure Level (SPL)	25 dB(A)
Operating Temperature	-10 to +60 °C
Expected Lifespan	40,000 hours (at 60°C) / 70,000 hours (at 40°C)
Frame Material	Plastic (Ribbed for added strength)
Sensor Type	Pulse sensor (2 pulses/revolution)
PWM Control	No
Mass	19 g
Certifications	UL, CSA, EN, RoHS

Applications

The Sanyo Denki 109P0424H901 is suitable for a wide range of applications that require efficient and reliable cooling.

Industry	Application Examples
Industrial Automation	Control panels, PLCs, motor drivers, power supplies, welding machines.
Information Technology	Network servers, rack-mounted equipment, high-performance computers, projectors.
Telecommunications	5G base stations, communication racks, optical transmission equipment, routers.
Medical Equipment	Analyzers, diagnostic imaging devices, patient monitoring systems.
Office Equipment	High-speed copiers, laser printers, large-format plotters.

Why Choose Sanyo Denki San Ace Fans?

Sanyo Denki is a global leader in thermal management solutions. The San Ace series is engineered for superior performance, quality, and reliability. By choosing the 109P0424H901, you are investing in a cooling solution that is built to last and perform under pressure, ensuring the longevity and stability of your electronic products.
