San Ace Low Power Consumption Fan 9GA0412P3M011 Product Overview

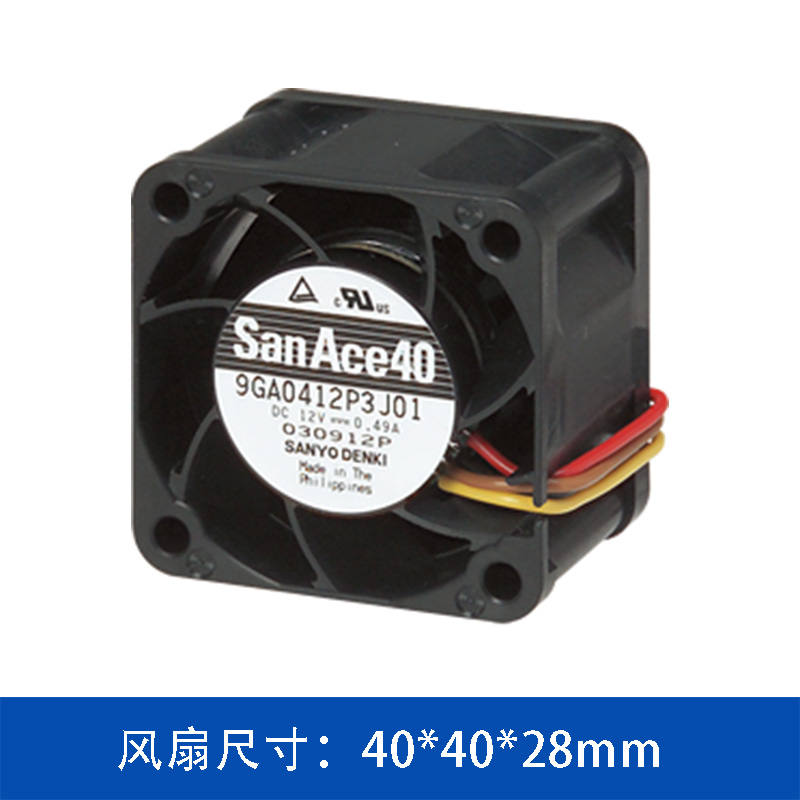

SANYO DENKI San Ace 40 series model 9GA0412P3M011 is a miniature 40x40x28 mm DC axial cooling fan designed for low power consumption and low noise heat dissipation demands. Balancing moderate air pressure, energy efficiency and quiet operation, this fan integrates PWM speed control and pulse rotational speed feedback sensor. It is classified as SANYO Eco Products with complete international safety and environmental certifications, long service life under wide temperature range, widely applied in light-load server hardware, industrial control units, telecom power modules, small medical instruments and compact embedded cooling systems.
1. Full Technical Specification Table
|
Item
|
Parameter Value
|
Item
|
Parameter Value
|
|
Model Number
|
9GA0412P3M011
|
Frame Size
|
40 mm × 40 mm
|
|
Frame Thickness
|
28 mm
|
Frame Material
|
Plastic
|
|
Rated Voltage
|
12 V DC
|
Operating Voltage Range
|
10.8 V ~ 13.2 V DC
|
|
Rated Current
|
0.21 A
|
Rated Input Power
|
2.52 W
|
|
Rated Rotational Speed
|
12500 min-1
|
Maximum Airflow
|
0.46 m3/min
|
|
Max Airflow CFM
|
16.2 CFM
|
Maximum Static Pressure
|
258 Pa
|
|
Max Static Pressure (inchH2O)
|
1.04 inchH2O
|
Sound Pressure Level
|
47 dB(A)
|
|
Operating Temperature Range
|
-20 ℃ ~ +70 ℃
|
Expected Service Life
|
40000 hours at 60 ℃, 70000 hours at 40 ℃
|
|
Net Mass
|
53 g
|
Sensor Type
|
Pulse sensor for real-time speed detection
|
|
PWM Control Function
|
Supported
|
Ribbed Blade Structure
|
Not equipped
|
2. Core Product Performance Advantages
2.1 Ultra Low Power Consumption Design
Compared with high-speed 4028 fan models of the same San Ace series, the 9GA0412P3M011 only consumes 2.52 W rated power, rated current limited to 0.21 A. Optimized internal motor winding reduces idle power loss significantly, cutting long-term equipment energy consumption for 24-hour continuous operation devices. It is labeled as SANYO DENKI Eco Products to meet global energy-saving standards for electronic equipment.
2.2 Low Noise Operation with Stable Heat Dissipation
The rated speed of 12500 min-1 delivers balanced airflow and wind pressure while controlling sound pressure level at only 47 dB(A). It avoids excessive high-frequency noise generated by ultra-high speed fans, perfectly matching equipment that requires quiet operating environment such as office industrial switches and portable test instruments. The maximum airflow reaches 0.46 m3/min and max static pressure hits 258 Pa, capable of heat dissipation for small heat sinks and narrow air channels.
2.3 PWM Speed Regulation & Pulse Speed Feedback
Built-in standard PWM speed control function allows users to adjust fan running speed dynamically based on internal equipment temperature. Lower rotating speed under light load further reduces power consumption and running noise. The embedded pulse sensor transmits real-time rotational speed signals to the main control board, supporting closed-loop temperature monitoring, stall protection and abnormal speed fault alarm functions.
2.4 Wide Temperature Adaptability & Long Service Life
The fan can operate stably from -20 ℃ to +70 ℃, adapting to low-temperature factory workshops and continuous high-load indoor working conditions. Reliable bearing structure ensures 40000 hours service life under 60 ℃ continuous operation and up to 70000 hours service life under 40 ℃, lowering later maintenance and fan replacement frequency for industrial devices.
2.5 Complete International Certifications
The fan passes UL safety rating, CSA electrical standard certification, EN European equipment standard certification and RoHS hazardous substance restriction directive. It fully meets export compliance requirements for electronic cooling products sold to Europe, North America and other global regions.
3. Structure & Dimension Introduction
-
Standard outer frame dimension: 40mm length × 40mm width × 28mm thickness, universal 4028 installation hole position compatible with most server, industrial control and power supply equipment mounting brackets.
-
Integrated plastic injection molding frame, total weight 53 grams, lightweight without extra load on thin cabinet mounting structures.
-
Non ribbed blade design prioritizes balanced wind pressure and low noise performance, targeted for low to medium density heat dissipation scenes without ultra-high wind pressure demand.
4. Matching Application Scenarios Table
|
Application Industry
|
Matching Equipment Type
|
Core Matching Advantage
|
|
Edge Computing & Server
|
Low power 1U rack server, miniature edge computing host
|
Low power consumption, low noise, pulse speed monitoring for equipment safety protection
|
|
Industrial Automation
|
PLC controller, industrial network switch, embedded industrial PC
|
Wide temperature resistance, long service life, PWM energy saving function
|
|
Communication Equipment
|
Telecom switching power supply, signal transmission module
|
RoHS certification, stable continuous operation for long term
|
|
Test & Medical Hardware
|
Portable testing instrument, small medical analysis equipment
|
47 dB(A) low noise, low power consumption for silent working environment
|
|
Mini Energy Storage
|
Small battery management system, micro inverter
|
Compact 4028 size, energy-saving design to reduce overall power loss
|
5. Installation and Operation Guidelines
-
Keep fan input DC voltage within the range of 10.8 V to 13.2 V. Long-term operation beyond this voltage interval will cause abnormal speed fluctuation and shorten service life.
-
When using PWM speed regulation, align the signal voltage level with the host mainboard to guarantee normal speed adjustment and stable pulse signal output.
-
Avoid installation environment with heavy dust, oil mist or corrosive gas. Additional dust-proof and waterproof housing needs to be configured separately for harsh working conditions.
-
Service life data is measured under standard laboratory environment. Continuous operation at the upper temperature limit of 70 ℃ will reduce the actual usable lifespan of the fan.
-
Do not block fan air inlet and outlet during installation, reserve enough ventilation space to maintain rated airflow and static pressure performance.
6. Full Certification List
-
UL ratings safety certification
-
CSA international electrical standard certification
-
EN European electrical equipment standard certification
-
RoHS directive hazardous substance compliance certification
-
SANYO DENKI Eco Products low energy consumption product certification
7. Supporting Accessories & Related Alternative Models
Customers can purchase matching fan fixing screws, anti-vibration rubber pads and wiring terminal plugs according to actual installation needs. For other San Ace 40 series 40x40x28mm fans with different speed, power and sensor configurations, refer to the applicable models list on this page to select alternative cooling solutions with identical mounting dimensions.
∷
