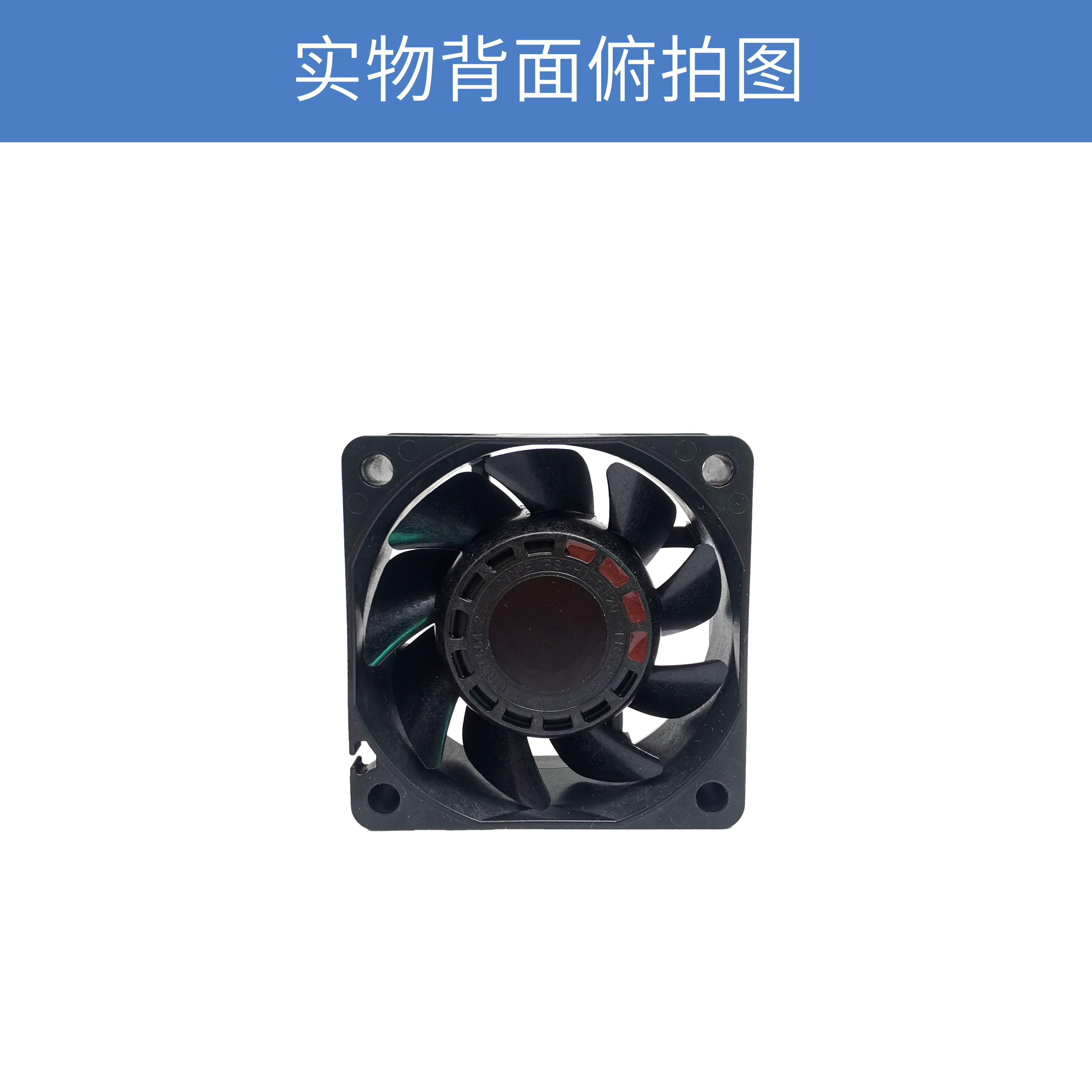

6025 12V Splash Proof Fan

9WPA0612P4G001

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: Shop Sanyo Denki San Ace 9WPA0612P4G001 Splash Proof Fan: 60x60x25mm 12V DC fan with IP68 waterproof rating, 12000RPM high speed, 1.52m³/min airflow, 357Pa static pressure, PWM control & pulse sensor.
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

Sanyo Denki San Ace 9WPA0612P4G001 Splash Proof Fan: Full Product Guide

1. Product Overview

The San Ace 9WPA0612P4G001 is a high-performance Splash Proof Fan from Sanyo Denki’s renowned San Ace series, engineered for demanding industrial and outdoor applications. Designed with a compact 60×60×25mm form factor, this IP68-rated DC fan delivers exceptional airflow, static pressure, and reliability in wet, dusty, and harsh operating environments.

It features PWM speed control, a pulse sensor for speed feedback, and robust construction to meet the needs of EV chargers, outdoor digital signage, industrial automation equipment, and more.

2. Core Specifications

表格

Parameter	Details
Model Number	9WPA0612P4G001
Series	San Ace 60W Splash Proof Fan
Frame Size	60 × 60 × 25 mm
Rated Voltage	12 V DC
Operating Voltage Range	10.8 ~ 13.2 V DC
Rated Current	0.93 A
Rated Input Power	11.16 W
Rated Speed	12000 min⁻¹ (RPM)
Max. Airflow	1.52 m³/min (53.7 CFM)
Max. Static Pressure	357 Pa (1.43 inchH₂O)
Sound Pressure Level (SPL)	56 dB(A)
Operating Temperature Range	-20°C ~ +70°C
Expected Service Life	40,000 hours @ 60°C / 70,000 hours @ 40°C
Mass	110 g
IP Rating	IP68 (Dust-tight & protected against continuous immersion in water)
Control Features	PWM Control Function (Yes) + Pulse Sensor (Speed Feedback)
Frame Material	Plastic
Ribbed Design	Yes (Enhanced structural stability and airflow efficiency)
Certifications	UL, CSA, EN Standards Compliant, RoHS Directive Compliant

3. Key Features & Advantages

3.1 IP68 Splash-Proof & Dust-Tight Protection

The 9WPA0612P4G001 is certified IP68, the highest rating for dust and water protection:

IP6X: Completely dust-tight, preventing ingress of even fine particles that could damage internal components.
IP8X: Protected against continuous immersion in water under specified pressure conditions, making it ideal for washdown environments, outdoor installations, and equipment exposed to splashes, rain, or humidity.

3.2 High-Performance Airflow & Static Pressure

12000 RPM rated speed delivers a maximum airflow of 1.52 m³/min (53.7 CFM), ensuring rapid heat dissipation.
357 Pa maximum static pressure enables effective cooling through dense heat sinks, filters, and restricted airflow paths—critical for high-power industrial and electronic equipment.

3.3 PWM Speed Control & Pulse Sensor Feedback

PWM (Pulse Width Modulation) Control: Allows precise adjustment of fan speed to match cooling demand, reducing noise and power consumption during low-load operation.
Pulse Sensor: Provides real-time speed feedback to the system controller, enabling monitoring of fan health and failure detection to prevent equipment overheating.

3.4 Long Service Life & Wide Operating Range

With a service life of 40,000 hours at 60°C (or 70,000 hours at 40°C), the fan offers reliable long-term operation even in elevated-temperature environments.
Operating temperature range of -20°C to +70°C ensures performance stability in extreme cold and heat.

3.5 Compliance & Quality Assurance

Certified to meet global standards including UL, CSA, EN, and RoHS, the 9WPA0612P4G001 ensures compatibility and safety for use in international markets, with full compliance with environmental and electrical regulations.

4. Typical Applications

The robust design and IP68 rating make the 9WPA0612P4G001 ideal for a wide range of challenging applications:

表格

Application Sector	Use Cases
Electric Vehicle (EV) Charging	DC fast chargers, AC charging stations, on-board chargers (OBC)
Outdoor Digital Signage	Outdoor kiosks, advertising displays, street furniture screens
Renewable Energy	PV inverters, solar power systems, wind turbine control cabinets
Industrial Automation	PLC cabinets, motor drives, industrial control panels, robotics
Telecommunications	Outdoor base stations, telecom cabinets, edge computing equipment
Marine & Transportation	On-board electronics, marine control systems, vehicle auxiliary equipment

5. Why Choose Sanyo Denki San Ace Splash Proof Fans?

Sanyo Denki’s San Ace series is globally recognized for its exceptional quality, precision engineering, and reliability in harsh conditions. The 9WPA0612P4G001 builds on this legacy with:

Proven splash-proof technology that withstands real-world environmental challenges.
Advanced motor design for high efficiency and low power consumption.
Rigorous testing to ensure consistent performance across the full operating range.
Comprehensive support and certification documentation for global deployment.
