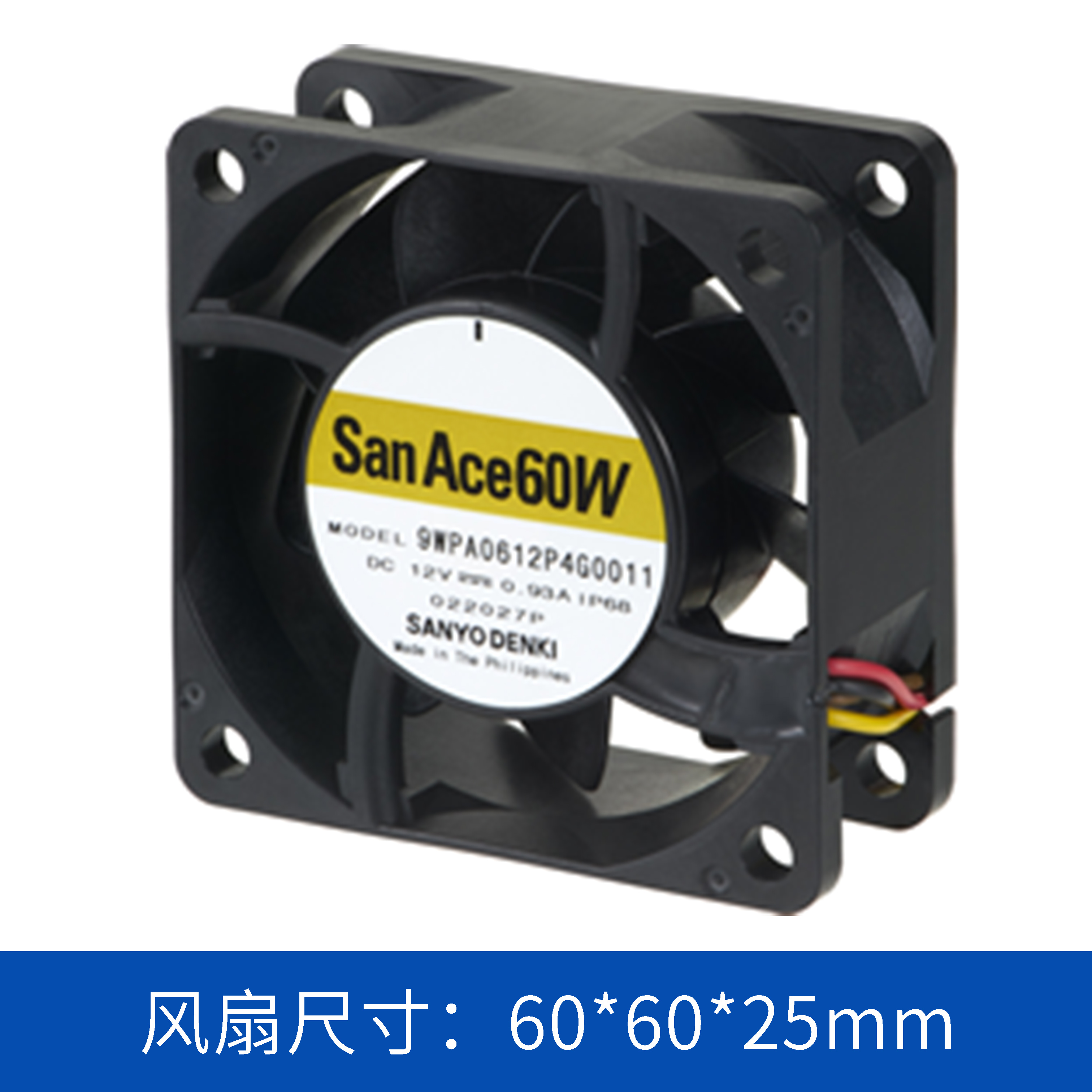

6025 24V Splash Proof Fan

9WPA0624M4001

Brand: SanAce (Japan sanyodenki)
Size: 60x60x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: The SANYO DENKI San Ace 9WPA0624M4001 is a 60x60x25mm IP68-rated splash proof DC fan with 24V/0.06A rating, 4000 RPM low speed, 26 dB(A) low noise, ribbed frame design, ideal for low-noise outdoor equ
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0612P4G001	12	10.8~13.2	0.17	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4G0011	24	14~27.6	0.09	2	13700	0.38	13.4	210		0.84	44
暂无	9WPA0612P4H001	12	10.8~13.2	0.075	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0612P4H0011	24	14~27.6	0.038	0.9	8800	0.24	8.5	81		0.33	34
暂无	9WPA0624P4G001	12	10.8~13.2	0.1	1.2	8000	0.225	8	65.7		0.264	33
暂无	9WPA0624P4G0011	12	10.8~13.2	0.06	0.72	6500	0.183	6.5	45.1		0.181	28
暂无	9WPA0612M4001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0612M40011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M4001	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624M40011	24	14~27.6	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0624S4001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0624S40011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4S001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4J001	24	14~27.6	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0612P4H001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4S001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0624P4J001	24	14~27.6	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0624P4H001	24	14~27.6	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

SANYO DENKI San Ace 9WPA0624M4001: 60W Splash Proof Low-Speed Cooling Fan

1. Product Overview

The San Ace 60W Series 9WPA0624M4001 is a low-speed, low-noise splash proof axial fan from SANYO DENKI, engineered for reliable, quiet cooling in harsh environments. Featuring IP68 dust/water protection, a ribbed frame design, and long operational life, this 60x60x25mm fan is ideal for applications prioritizing low noise and durability over high airflow, such as outdoor displays, low-power industrial equipment, and marine systems.

2. Core Specifications

表格

Parameter	Value
Model No.	9WPA0624M4001
Frame Size	60 x 60 x 25 mm
Rated Voltage	24 V DC
Operating Voltage Range	20.4 ~ 27.6 V DC
Rated Current	0.06 A
Rated Input Power	1.44 W
Rated Speed	4000 min⁻¹
Max. Airflow	0.51 m³/min (18 CFM)
Max. Static Pressure	39.7 Pa (0.16 inchH₂O)
Sound Pressure Level	26 dB(A)
Operating Temperature	-20 ~ +70 ℃
Expected Life	40,000 h @ 60 ℃ / 70,000 h @ 40 ℃
Mass	110 g
IP Rating	IP68
PWM Control	No
Sensor Type	Pulse Sensor
Frame Material	Plastic
Ribbed Design	Yes
Certifications	UL, CSA, EN, RoHS Compliant

3. Key Features

3.1 IP68 Splash & Dust Protection

The fan is fully protected against dust ingress and temporary immersion in water, ensuring stable operation in wet, dusty environments such as outdoor kiosks, industrial control cabinets, and marine equipment.

3.2 Ultra-Low Noise Operation

At only 26 dB(A), this fan delivers quiet performance, making it ideal for noise-sensitive applications like public displays and office-facing industrial systems.

3.3 Low Power Consumption

With a rated input power of just 1.44 W, the 9WPA0624M4001 offers energy-efficient cooling for low-power electronics, reducing overall system energy use.

3.4 Ribbed Frame Design

The reinforced ribbed frame enhances structural durability, improving vibration resistance and extending the fan’s service life in industrial and transportation applications.

3.5 Extended Long Life

Designed for reliability, the fan offers 40,000 hours of continuous operation at 60 ℃, minimizing maintenance needs in 24/7 applications.

3.6 Wide Operating Temperature Range

The fan operates reliably from -20 ℃ to +70 ℃, supporting extreme cold and high-temperature environments common in outdoor and industrial setups.

4. Typical Applications

Outdoor Digital Signage & Public Kiosks
Low-Power Industrial Control Cabinets
Marine & Transportation Equipment
Telecommunication Base Station Auxiliary Cooling
Photovoltaic (PV) Micro-Inverters
Noise-Sensitive Industrial Automation Systems

5. Compliance & Certifications

The San Ace 9WPA0624M4001 meets global industry standards for safety and environmental compliance:

UL Recognized
CSA Certified
EN Compliant
RoHS Directive Compliant
IP68 Rated (IEC 60529)
