SANYO San Ace 40 9GAX0412P3S0011 Full English Product Introduction
1. Product Overview

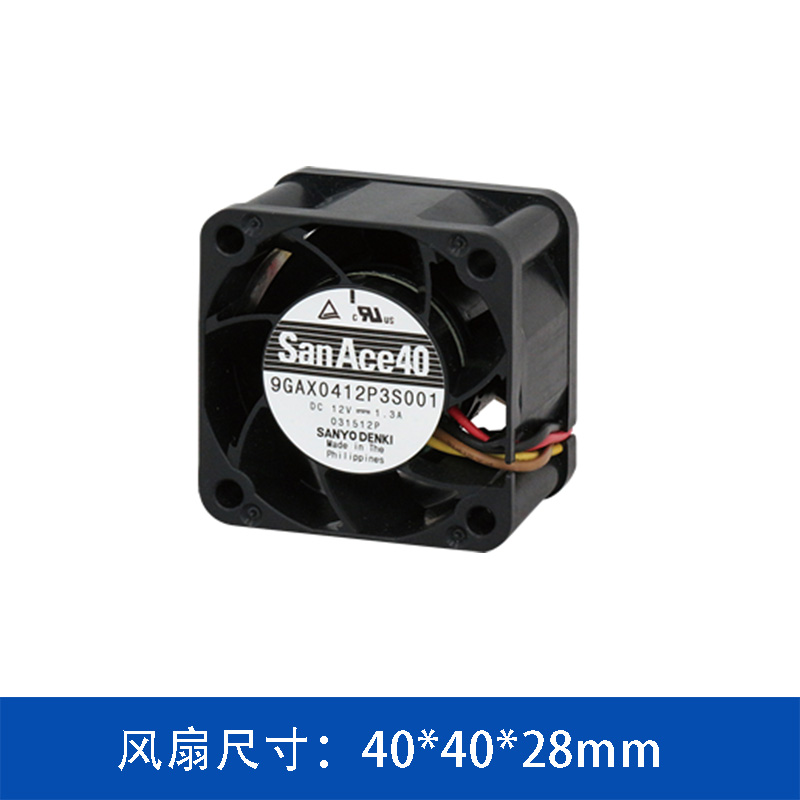

The 9GAX0412P3S0011 belongs to the low-power consumption lineup of SANYO DENKI San Ace 40 series, a 40×40×28mm compact DC axial cooling fan designed for energy-saving industrial thermal management.
Different from ribbed frame versions of the same series, this model adopts a
non-ribbed plastic frame, which delivers lighter weight and simpler assembly while retaining stable airflow and static pressure performance. It integrates PWM speed regulation and pulse tachometer sensor, supporting real-time speed monitoring and flexible temperature-linked speed adjustment. The fan complies with UL, CSA, EN and RoHS global standards, perfectly matching compact telecom hardware, industrial controllers and edge server heat dissipation demands.
2. Complete Technical Specification Table
|
Specification Item
|
Parameter Value
|
|
Model Number
|
9GAX0412P3S0011
|
|
Overall Frame Dimension
|
40mm × 40mm × 28mm (4028)
|
|
Frame Material
|
Plastic
|
|
Frame Structure
|
Non-Ribbed (No Reinforcing Ribs)
|
|
Rated Voltage
|
12 V DC
|
|
Operating Voltage Range
|
10.8 V ~ 12.6 V DC
|
|
Rated Current
|
1.3 A
|
|
Rated Input Power
|
15.6 W
|
|
Rated Rotational Speed
|
25000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.9 m³/min / 31.8 CFM
|
|
Maximum Static Pressure
|
1000 Pa / 4.02 inchH₂O
|
|
Sound Pressure Level (SPL)
|
64 dB(A)
|
|
Operating Ambient Temperature
|
-20 ℃ ~ +60 ℃
|
|
Expected Service Life
|
300,000 hours at 60℃ / 530,000 hours at 40℃
|
|
Net Weight
|
53 g
|
|
Speed Sensor Type
|
Pulse Tachometer Sensor
|
|
PWM Speed Control Function
|
Supported (Yes)
|
|
Core Product Feature
|
Low Power Consumption
|
|
Global Certifications
|
UL ratings, CSA standards, EN standards, RoHS directive
|
3. Performance Comparison Table (vs Ribbed Version 9GAX0412P3S0001)
|
Comparison Item
|
9GAX0412P3S0011 (This Model)
|
9GAX0412P3S0001 (Ribbed Frame Model)
|
|
Frame Rib Design
|
Non-Ribbed
|
Ribbed reinforced frame
|
|
Weight
|
53g
|
53g
|
|
Vibration Suppression
|
Standard vibration resistance
|
Enhanced anti-vibration performance
|
|
Assembly Compatibility
|
Fits narrow installation space
|
Slightly larger outer frame allowance
|
|
Core Electrical Parameters
|
12V,1.3A,25000RPM,1000Pa
|
12V,1.3A,25000RPM,1000Pa
|
|
Application Preference
|
Compact lightweight equipment
|
High-vibration industrial equipment
|
4. Core Product Advantages
-
Low Power Energy-Saving Design
Equipped with high-efficiency miniature motor, rated power only 15.6W, effectively reduces long-term power consumption of end devices, satisfies energy-saving design requirements of industrial and communication equipment.
-
Balanced Airflow & Static Pressure Output
25000 RPM high speed provides max static pressure up to 1000Pa, capable of penetrating dense heat sinks and narrow ventilation channels, paired with 0.9 m³/min stable airflow to eliminate internal heat rapidly.
-
PWM Control + Pulse Speed Feedback Dual Function
Built-in PWM speed control enables dynamic speed adjustment according to equipment temperature, cutting idle noise and power waste. The pulse sensor outputs real-time rotation signals to the main control board, supporting fan failure alarm and running status monitoring.
-
Lightweight Non-Ribbed Frame Structure
Non-reinforced rib plastic frame reduces overall volume obstruction, more suitable for ultra-compact device internal layout, convenient for automated assembly production.
-
Wide Temperature Adaptability & Ultra-Long Service Life
Stable continuous operation under -20℃ ~ 60℃ environment, with a service life of 300,000 hours at 60℃ working condition, lowering maintenance frequency for 24-hour uninterrupted running devices.
-
Full Global Safety & Environmental Certifications
Passed UL safety certification, CSA North American standard, EN European standard and RoHS environmental directive, can be directly installed on finished products exported to North America, Europe and global markets.
5. Typical Application Industry Matching Table
|
Application Industry
|
Specific Equipment
|
|
Communication Equipment
|
Mini network switches, compact 5G edge base stations, signal transmission modules
|
|
Industrial Automation
|
Small servo controllers, embedded industrial control hosts, power supply modules
|
|
Computing Hardware
|
Mini edge servers, embedded computing boxes, high-density storage devices
|
|
Medical Equipment
|
Portable diagnostic instruments, compact medical detection hardware
|
|
Semiconductor Auxiliary Equipment
|
Small chip testing machines, precision optical detection equipment
|
6. Brand Introduction
SANYO DENKI is a world-famous professional manufacturer of industrial cooling fans, with its San Ace series recognized globally for stable performance, precise thermal control and ultra-long service life. San Ace fans provide standardized high-reliability cooling solutions for industrial, IT, medical, communication and semiconductor industries worldwide.
Short Brief for Product List Page
SANYO DENKI San Ace 40 low-power fan model 9GAX0412P3S0011 is a 4028 size 12V DC axial cooling fan with non-ribbed plastic frame. It runs at 25000 RPM with 1000Pa max static pressure, supports PWM speed control and pulse tachometer signal output. Featuring low power consumption, low noise and full UL/CSA/EN/RoHS certifications, it is widely applied in compact telecom devices, industrial controllers and mini edge servers.
∷
