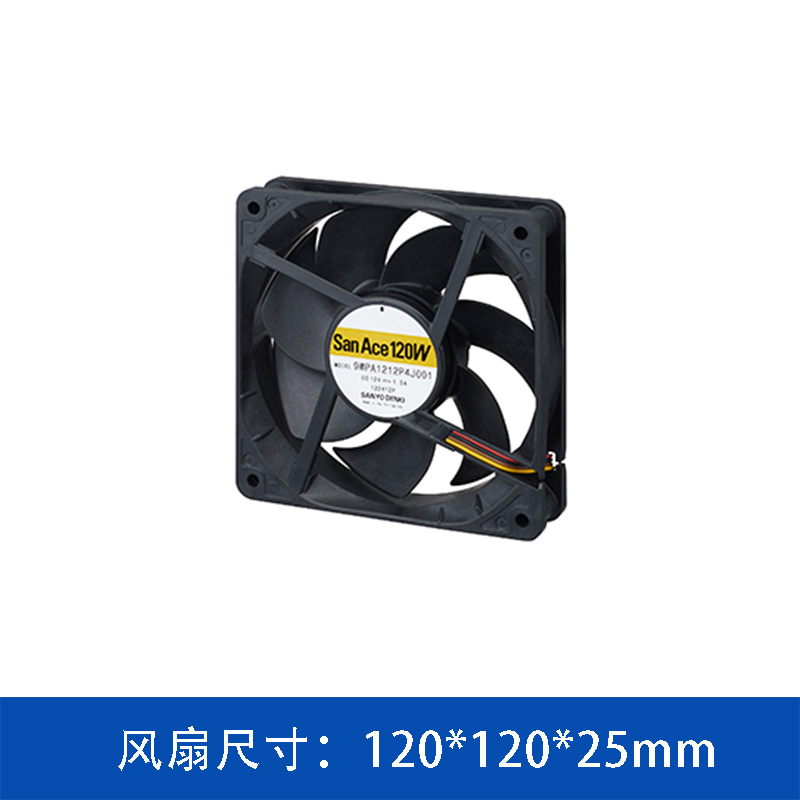

12025 12V Splash Proof Fan

9WPA1212P4G001

Brand: SanAce (Japan sanyodenki)
Size: 120x120x25mm
Characteristics: IP68 Splash Proof Fan
Signal line: 3-wire
Product description: The San Ace 120W 9WPA1212P4G001 is a 120x120x25mm IP68 rated splash proof DC fan with PWM control function. It features 12V operation, 4250 RPM, and 3.30m³/min max airflow, designed for reliable cooli
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无数据

PRODUCT PRESENTATION

Product Overview

The San Ace 120W (Model: 9WPA1212P4G001) is a high-performance, splash-proof axial flow fan designed by SANYO DENKI. With an IP68 rating, this fan is built to withstand harsh environments, including exposure to water and dust, making it ideal for outdoor and industrial applications. It features PWM (Pulse Width Modulation) control, allowing for precise speed control and energy efficiency. The fan combines high reliability with robust construction to ensure continuous operation in demanding conditions.

Key Features

IP68 Splash Proof & Dust Tight: Fully protected against dust ingress and powerful water jets, suitable for washdown environments and outdoor use.
PWM Speed Control: Built-in PWM control function (4-wire type) enables easy speed control via a control signal from 0 to 100%, optimizing airflow and reducing power consumption.
High Reliability: Designed for long service life with an expected life of 40,000 hours at 60°C and 70,000 hours at 40°C.
Ribbed Frame: The ribbed design enhances structural strength and heat dissipation efficiency.
Pulse Sensor: Equipped with a pulse sensor for rotation detection and tachometer output.

Technical Specifications

表格

Specification	Detail	Specification	Detail
Model No.	9WPA1212P4G001	Frame Size	120 mm
Frame Thickness	25 mm	Frame Material	Plastic (Ribbed)
Rated Voltage	12 VDC	Operating Voltage	10.8 ~ 13.2 VDC
Rated Current	0.50 A	Rated Input Power	6.0 W
Rated Speed	4250 min⁻¹ (RPM)	Max. Airflow	3.30 m³/min (117 CFM)
Max. Static Pressure	135 Pa (0.54 inchH₂O)	Sound Pressure Level (SPL)	46 dB(A)
Operating Temperature	-20 to +70°C	Expected Life	40,000h (@60°C) / 70,000h (@40°C)
IP Rating	IP68	Control Function	PWM Control (Yes)
Sensor Type	Pulse Sensor	Mass	240 g

Performance Data

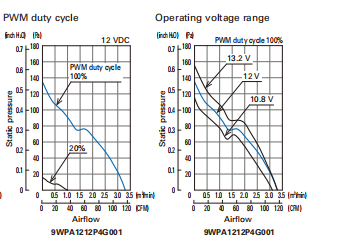

Airflow vs. Static Pressure: The fan delivers a maximum airflow of 3.30 m³/min in free air and generates a maximum static pressure of 135 Pa at zero flow. This balance makes it suitable for applications with moderate airflow resistance.
Noise Level: Operating at 46 dB(A), it provides a good balance between cooling performance and acoustic comfort.

Applications

The San Ace 9WPA1212P4G001 is engineered for applications requiring protection against water and dust. Typical use cases include:

Outdoor Telecommunication Equipment: Cooling base stations and antenna units exposed to rain and dust.
Industrial Machinery: Control panels, welding machines, and packaging equipment in washdown areas.
Vending Machines & Refrigeration: Cooling systems where moisture resistance is critical.
Automotive & Transportation: Battery cooling systems and auxiliary power units.
LED Lighting: High-power outdoor lighting fixtures requiring thermal management.
