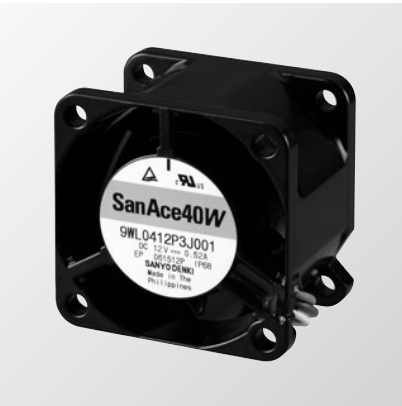

4028 12V Splash Proof Fan

9WL0424P3J001

Brand: SanAce (Japan sanyodenki)
Size: 40x40x28mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki San Ace 9WL0424P3J001 DC fan, 40×40×28mm, IP68-rated splash-proof design, 24V DC, PWM control, ideal for EV chargers, outdoor signage, and industrial applications requiring high reliabilit
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0412P3G001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412P3G0011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G001	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G0011	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412H3001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0412H30011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H3001	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H30011	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0412P3J001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0412P3G001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0424P3J001	24	21.6~26.4	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0424P3G001	24	21.6~26.4	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

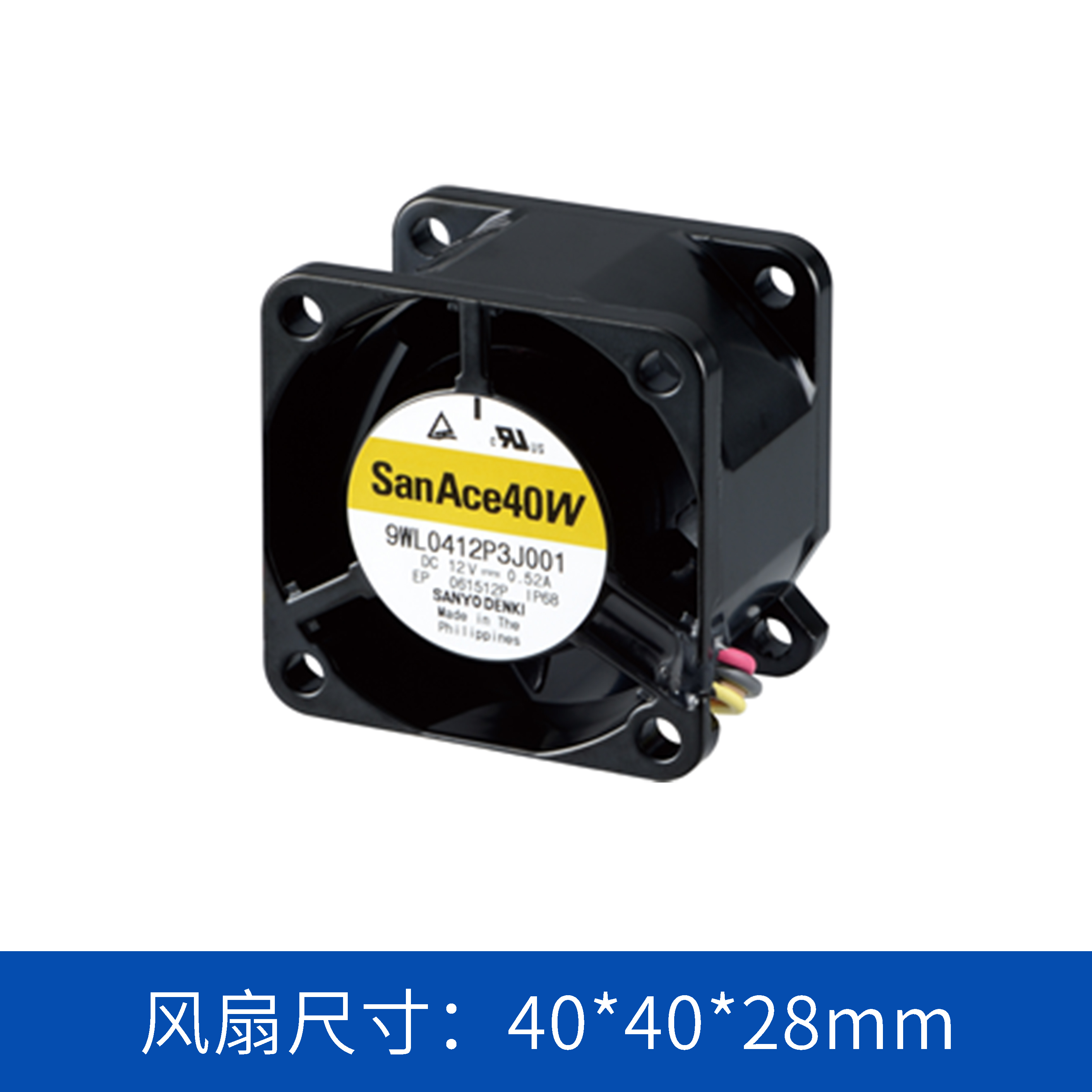

San Ace 40W Splash Proof Fan 9WL0424P3J001

Product Overview

The San Ace 9WL0424P3J001 is a high-performance, IP68-rated splash-proof DC fan from Sanyo Denki, engineered for extreme environmental conditions. Measuring 40×40×28mm, this compact axial fan combines exceptional water/dust resistance, long operational life, and precise PWM speed control, making it ideal for cooling outdoor electronics, EV charging stations, industrial automation equipment, and other harsh-environment applications.

Core Specifications

表格

Parameter	Details
Model No.	9WL0424P3J001
Frame Size	40 × 40 × 28 mm
Rated Voltage	24 V DC (Operating Range: 21.6–26.4 V)
Rated Current	0.26 A
Rated Power	6.24 W
Rated Speed	17500 rpm
Max. Airflow	0.63 m³/min (22.2 CFM)
Max. Static Pressure	400 Pa (1.61 inchH₂O)
Noise Level (SPL)	51 dB(A)
IP Rating	IP68 (Full dust protection, immersion-proof)
Expected Life	150000 hours @ 60°C (185000 hours @ 40°C)
PWM Control	Yes
Sensor Type	Pulse Sensor (Speed Signal Output)
Frame Material	Aluminum
Operating Temperature	-20°C ~ +70°C
Mass	70 g

Key Features

IP68 Splash & Dust Protection

The fan is fully sealed to meet IP68 standards, ensuring reliable operation even in environments with high humidity, splashing water, or heavy dust—critical for outdoor and industrial deployments.
High Airflow & Static Pressure

Delivering 0.63 m³/min airflow and 400 Pa static pressure at 17500 rpm, it provides robust cooling for compact, high-density heat sources.
Long-Life Reliability

With a rated lifespan of 150,000 hours at 60°C, the fan minimizes maintenance needs and ensures long-term performance in continuous-operation applications.
PWM Speed Control

Built-in PWM support enables dynamic speed adjustment, optimizing cooling performance while reducing noise and power consumption based on system requirements.
Aluminum Frame Construction

The durable aluminum frame enhances heat dissipation and mechanical stability, making it resistant to vibration and thermal stress.

Typical Applications

EV Charging Stations & DC Fast Chargers
Outdoor Digital Signage & Kiosks
Industrial Automation & Control Panels
Telecommunication Base Stations
Medical Equipment & Harsh-Environment Electronics

Compliance & Certifications

The San Ace 9WL0424P3J001 meets global safety and environmental standards, including:

UL/CSA Safety Ratings
EN Compliance
RoHS Directive Compliance
Eco-Products Certification
