4028 12V Splash Proof Fan

9WL0412P3G001

Brand: SanAce (Japan sanyodenki)

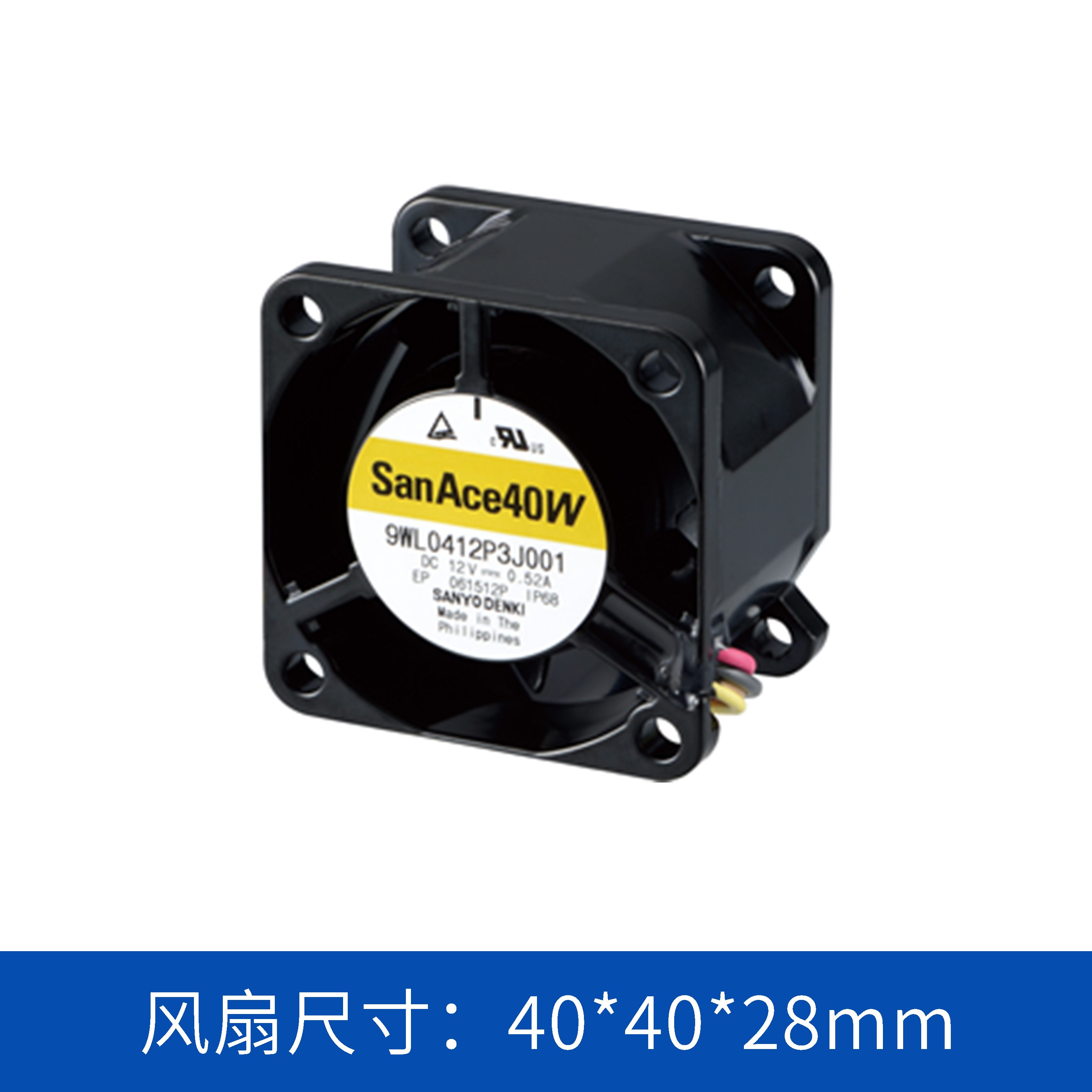

Size: 40x40x28mm
Characteristics: IP68 Splash Proof Fan
Signal line: 4-wire PWM + FG
Product description: Discover the San Ace 9WL0412P3G001, a 40×40×28mm IP68 splash-proof DC fan from Sanyo Denki. Featuring 15500 RPM, 0.56 m³/min airflow, 310 Pa static pressure, PWM control, and 150,000-hour lifespan at
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9WPA0412P3G001	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412P3G0011	12	10.8~13.2	0.5	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G001	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0424P3G0011	24	21.6~26.4	0.25	6	22200	0.63	22.2	555		2.22	53
暂无	9WPA0412H3001	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0412H30011	12	10.8~13.2	0.34	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H3001	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WPA0424H30011	24	21.6~26.4	0.17	4.1	18500	0.52	18.3	375		1.51	48
暂无	9WL0412P3J001	12	10.8~13.2	0.52	6.24	17500	0.63	22.2	400		1.61	51
	9WL0412P3G001	12	10.8~13.2	0.4	4.8	15500	0.56	19.7	310		1.24	47
暂无	9WL0424P3J001	24	21.6~26.4	0.26	6.24	17500	0.63	22.2	400		1.61	51
暂无	9WL0424P3G001	24	21.6~26.4	0.2	4.8	15500	0.56	19.7	310		1.24	47

PRODUCT PRESENTATION

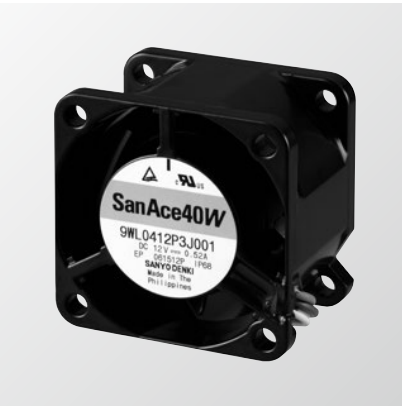

Sanyo Denki San Ace 40W 9WL0412P3G001 IP68 Splash Proof DC Fan

1. Product Overview

The San Ace 9WL0412P3G001 is a compact, high-performance splash-proof DC cooling fan from Sanyo Denki’s renowned San Ace series. Designed for harsh and moisture-prone environments, this 40×40×28mm fan features an IP68 rating, robust aluminum frame, and advanced PWM control, delivering reliable cooling in outdoor, industrial, and mission-critical applications. With a 150,000-hour lifespan at 60°C, it ensures long-term durability and consistent performance even under extreme conditions.

2. Key Specifications

表格

Parameter	Details
Model No.	9WL0412P3G001
Series	San Ace 40W Splash Proof Fan
Frame Size	40 × 40 × 28 mm
Rated Voltage	12 V DC
Operating Voltage Range	10.8 ~ 13.2 V DC
Rated Current	0.4 A
Rated Input Power	4.8 W
Rated Speed	15500 min⁻¹ (RPM)
Max. Airflow	0.56 m³/min (19.7 CFM)
Max. Static Pressure	310 Pa (1.24 inchH₂O)
Sound Pressure Level (SPL)	47 dB(A)
Operating Temperature	-20 ~ +70 °C (non-condensing)
Expected Life	150,000 hours @ 60°C / 185,000 hours @ 40°C
Frame Material	Aluminum (Black coating)
Impeller Material	Plastic (UL 94V-0 flame retardant)
IP Rating	IP68 (Dust-tight, protected against continuous immersion in water)
Control Features	PWM Control Function (Yes)
Sensor Type	Pulse Sensor (Tachometer output)
Mass	70 g
Compliance	UL, CSA, EN, RoHS Directive

3. Core Features & Advantages

✅ IP68 Splash-Proof & Dust-Tight Design

The 9WL0412P3G001 is fully sealed to meet IP68 standards, making it resistant to water splashes, moisture, and dust ingress. This makes it ideal for outdoor equipment, solar inverters, industrial automation systems, and other applications exposed to harsh environmental conditions.

✅ High Static Pressure & Airflow

With a maximum static pressure of 310 Pa and airflow of 0.56 m³/min, this fan excels at moving air through dense or restricted spaces, ensuring effective cooling even in compact, high-density electronic enclosures.

✅ Long-Life Reliability

Engineered with high-quality components and advanced bearing technology, the fan offers an exceptional lifespan of 150,000 hours at 60°C, minimizing maintenance and replacement costs in critical applications.

✅ PWM Speed Control

The built-in PWM control function allows precise speed adjustment, enabling dynamic cooling management to reduce noise and power consumption when full cooling capacity is not required.

✅ Tachometer Output

The pulse sensor provides a tachometer signal for real-time speed monitoring, allowing users to detect fan faults or abnormal performance in mission-critical systems.

✅ Wide Operating Temperature Range

Operating reliably from -20°C to +70°C, the fan adapts to extreme temperature fluctuations, making it suitable for both cold and high-temperature industrial environments.

4. Typical Applications

Outdoor digital signage and kiosks
EV charging stations and power inverters
Industrial automation and control equipment
Renewable energy systems (solar/wind inverters)
Telecommunications base stations
Harsh-environment electronic enclosures

5. Compliance & Certifications

The San Ace 9WL0412P3G001 meets the following global standards:

UL Safety Ratings
CSA Standards
EN Standards
RoHS Directive (Restriction of Hazardous Substances)
