Sanyo Denki San Ace 40 Fan 9GAX0412P3K001 Full Product Introduction
1. Product Overview
The

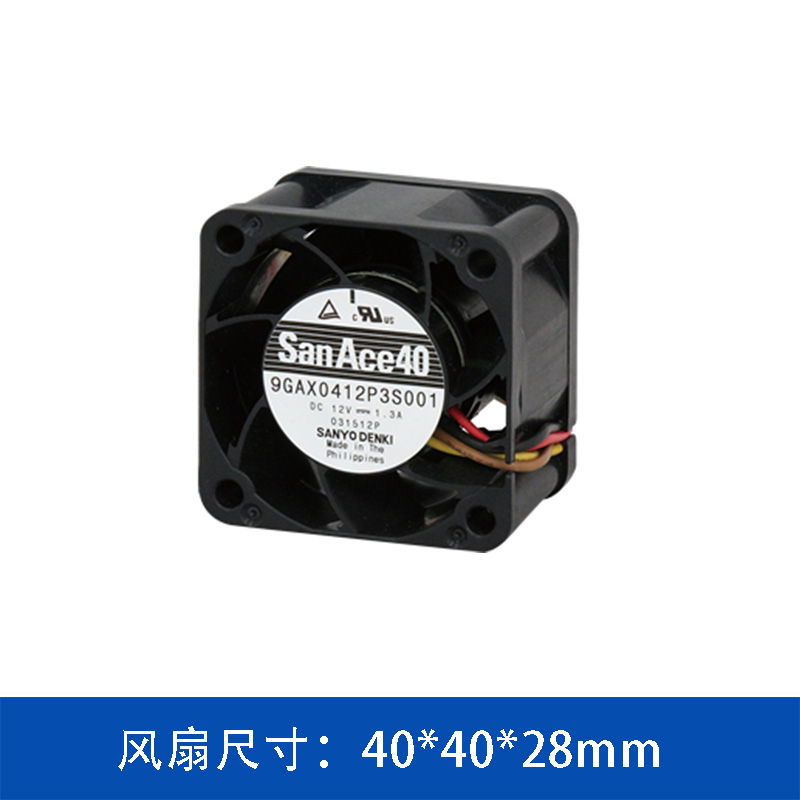

9GAX0412P3K001 is a member of Sanyo Denki San Ace 40 Low Power Consumption DC fan series, a 40×40×28mm compact cooling fan tailor-made for 1U rack-mounted equipment.
This DC12V industrial fan adopts ribbed plastic frame structure, built-in PWM speed regulation circuit and pulse speed output sensor. It balances low power consumption, stable high static pressure and long service life, with full global safety & environmental certifications, widely applied in high-density narrow-space heat dissipation scenarios like 1U servers, industrial controllers and medical devices.
2. Complete Technical Specification Table
|
Item
|
Parameter Value
|
|
Model Number
|
9GAX0412P3K001
|
|
Product Series
|
San Ace 40 Low Power Consumption Fan (9GAX Series)
|
|
Overall Dimension
|
40 mm × 40 mm × 28 mm
|
|
Frame Style
|
Ribbed Plastic Frame (Ribbed = Yes)
|
|
Frame & Impeller Material
|
UL94V-0 Flame Retardant Plastic
|
|
Rated Voltage
|
DC 12 V
|
|
Operating Voltage Range
|
DC 10.8 ~ 13.2 V
|
|
Rated Current
|
0.92 A
|
|
Rated Input Power
|
11.04 W
|
|
Rated Rotational Speed
|
22000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.81 m³/min / 28.6 CFM
|
|
Maximum Static Pressure
|
800 Pa / 3.21 inchH₂O
|
|
Sound Pressure Level (SPL)
|
61 dB(A) (1m air inlet, A-weighted)
|
|
Net Weight
|
53 g
|
|
Operating Temperature Range
|
-20 ℃ ~ +60 ℃ (Non-condensing environment)
|
|
Storage Temperature Range
|
-30 ℃ ~ +70 ℃ (Non-condensing environment)
|
|
L10 Expected Service Life
|
30000 hours at 60℃ / 53000 hours at 40℃
|
|
PWM Control Function
|
Supported (Yes)
|
|
Sensor Type
|
Pulse Speed Feedback Sensor
|
|
Motor Protection
|
Locked Rotor Burnout Protection + Reverse Polarity Protection
|
|
Dielectric Strength
|
50/60 Hz, 500 VAC, withstand 1 minute (wire to frame)
|
|
Insulation Resistance
|
Min. 10 MΩ under 500 VDC (wire to frame)
|
|
Global Certifications
|
UL Ratings, CSA Standards, EN Safety Standards, RoHS Directive
|
3. Model Code Breakdown Table
Full model: 9GAX 04 12 P 3 K 001
|
Code Segment
|
Code Content
|
Detailed Explanation
|
|
1. Series Type
|
9GAX
|
Low Power Consumption fan upgraded series; 9GA = standard low power, X = upgraded version
|
|
2. Frame Size Code
|
04
|
04 corresponds to 40mm × 40mm square frame
|
|
3. Voltage Code
|
12
|
Rated voltage DC 12V
|
|
4. Function Mark
|
P
|
Built-in PWM speed control function
|
|
5. Frame Thickness Code
|
3
|
Thickness 28mm, forming full size 40×40×28mm
|
|
6. Speed Grade Code
|
K
|
K-level medium-high speed, rated speed 22000 RPM
|
|
7. Sensor & Frame Form
|
001
|
00 = Pulse speed sensor; 1 = Ribbed plastic frame for 1U equipment
|
4. Core Functional Features & Advantages
4.1 PWM Adjustable Speed Control
The fan integrates dedicated PWM control circuit. Users can adjust fan rotating speed via external PWM signal. It effectively reduces power consumption and operating noise under low-load equipment status, realizing intelligent energy-saving heat dissipation.
4.2 Real-time Pulse Speed Monitoring Sensor
Equipped with pulse output sensor, the host system can read real-time fan speed signal continuously. It supports abnormal alarm when fan stalls or malfunctions, improving equipment operation safety for critical IT and medical devices.
4.3 Dual Motor Built-in Protection
Two layers of motor protection avoid permanent damage:
-
Locked rotor burnout protection: Automatically cut off current when impeller is blocked;
-
Reverse polarity protection: No damage when positive/negative wires are connected reversely by mistake.
4.4 Ribbed Frame for 1U Rack Application
Specially designed ribbed plastic frame improves structural rigidity during installation inside narrow 1U chassis, reduces vibration resonance, and fits standard 1U server, switch and embedded power supply mounting holes perfectly.
4.5 Long L10 Service Life & Wide Temperature Adaptability
Adopt high-quality bearing system with L10 life up to 30000 hours at 60℃ working environment. Stable operation is guaranteed within -20℃ ~ +60℃ wide temperature range, suitable for industrial harsh working conditions.
4.6 Flame Retardant & Global Standard Certifications
Frame and impeller adopt UL94V-0 flame retardant plastic material. The fan passes UL, CSA, EN and RoHS certification, fully compliant with export standards for North America, Europe and global industrial equipment.
5. Wire Definition Table
|
Wire Color
|
Function Definition
|
Mark
|
|
Red
|
Positive Power Input
|
⊕
|
|
Black
|
Negative Power Input
|
⊖
|
|
Yellow
|
Pulse Speed Sensor Signal
|
Sensor
|
|
Brown
|
PWM Speed Control Signal
|
Control
|
6. Main Application Fields
This 40×40×28mm ribbed 1U DC12V cooling fan is widely used in high-density heat dissipation equipment:
-
1U rack servers, network switches, firewalls and communication chassis
-
Industrial embedded controllers, servo drives and power supply modules
-
Medical imaging equipment, diagnostic testing instruments
-
Compact industrial automation equipment, small high-power charging devices
7. Product Competitive Highlights Summary
-
Exclusive ribbed frame structural design for standard 1U rack equipment installation
-
Upgraded 9GAX low power series, 800Pa high static pressure for blocked narrow air ducts
-
Combined PWM speed regulation + pulse speed feedback dual functional design
-
Dual motor safety protection, UL94V-0 flame retardant plastic construction
-
Wide operating temperature range and long L10 service life for continuous industrial operation
-
Complete global safety & environmental certifications to support worldwide product export
∷
