Sanyo Denki San Ace 40 Fan 9GAX0412P3K0011 Complete Product Introduction
1. Product Overview
The

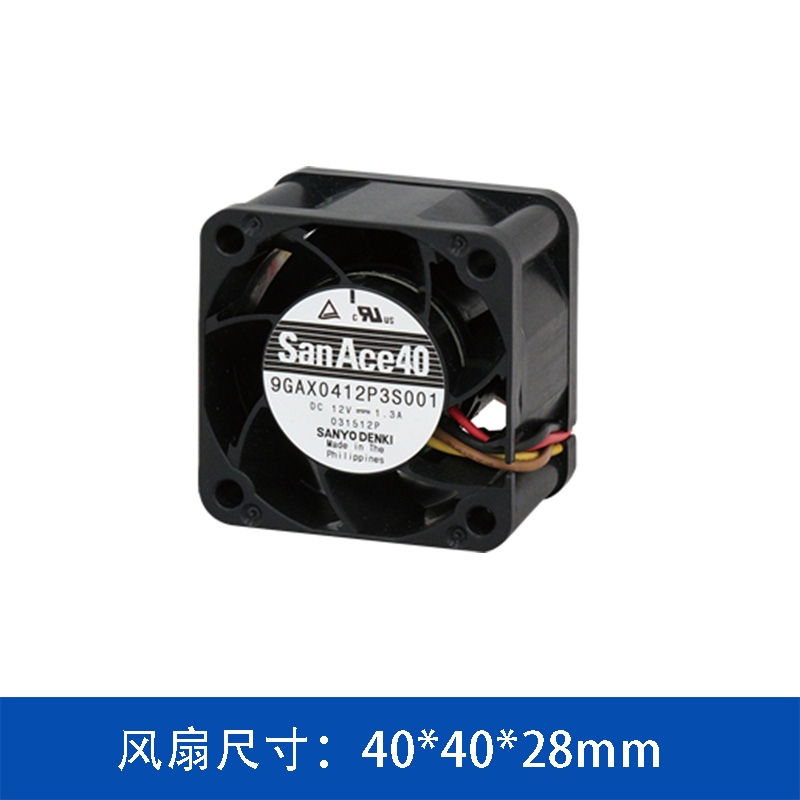

9GAX0412P3K0011 belongs to Sanyo Denki San Ace 40 upgraded 9GAX low power consumption DC fan series. It features a compact 40×40×28mm outline, specially optimized for heat dissipation of 1U rack-mounted equipment.
This DC12V industrial cooling fan adopts a ribless plastic frame, built-in PWM speed regulation circuit and pulse speed feedback sensor. It combines moderate airflow, 800Pa high static pressure, low power consumption and long service life, and has passed global mainstream safety and environmental certifications. It is widely used in narrow-space high-density heat dissipation scenarios such as 1U servers, industrial controllers, medical testing instruments and embedded power supplies.
2. Full Technical Specification Table
|
Specification Item
|
Standard Parameter
|
|
Model Number
|
9GAX0412P3K0011
|
|
Product Series
|
San Ace 40 Low Power Consumption Fan (9GAX upgraded series)
|
|
Overall Dimension
|
40 mm × 40 mm × 28 mm
|
|
Frame Structure
|
Ribless Plastic Frame (Ribbed = No)
|
|
Frame & Impeller Material
|
UL94V-0 Flame Retardant Plastic
|
|
Rated Voltage
|
DC 12 V
|
|
Operating Voltage Range
|
DC 10.8 ~ 13.2 V
|
|
Rated Current
|
0.92 A
|
|
Rated Input Power
|
11.04 W
|
|
Rated Rotational Speed
|
22000 min⁻¹ (RPM)
|
|
Maximum Airflow
|
0.81 m³/min / 28.6 CFM
|
|
Maximum Static Pressure
|
800 Pa / 3.21 inchH₂O
|
|
Sound Pressure Level (SPL)
|
61 dB(A) (1m air inlet, A-weighted)
|
|
Net Weight
|
53 g
|
|
Operating Temperature
|
-20 ℃ ~ +60 ℃ (Non-condensing environment)
|
|
Storage Temperature
|
-30 ℃ ~ +70 ℃ (Non-condensing environment)
|
|
L10 Expected Service Life
|
30000 hours at 60℃; 53000 hours at 40℃
|
|
PWM Speed Control Function
|
Supported (Yes)
|
|
Speed Monitoring Sensor
|
Pulse Output Speed Sensor
|
|
Built-in Motor Protection
|
Locked Rotor Protection + Reverse Polarity Protection
|
|
Dielectric Strength
|
50/60 Hz, 500 VAC, withstand 1 minute (Between wire conductors and frame)
|
|
Insulation Resistance
|
Minimum 10 MΩ under 500 VDC (Between wire conductors and frame)
|
|
Global Certifications
|
UL Ratings, CSA Standards, EN Safety Standards, RoHS Directive
|
3. Model Number Coding Breakdown Table
Complete model: 9GAX 04 12 P 3 K 0011
|
Code Segment
|
Code Content
|
Detailed Explanation
|
|
1. Series Identifier
|
9GAX
|
Low power consumption fan upgraded version; 9GA = standard low power series, X = performance upgraded derivative
|
|
2. Frame Size Code
|
04
|
Corresponding frame size: 40mm × 40mm square fan
|
|
3. Voltage Code
|
12
|
Rated operating voltage: DC 12V
|
|
4. Function Mark
|
P
|
Built-in PWM speed control circuit, supports adjustable fan speed via external PWM signal
|
|
5. Frame Thickness Code
|
3
|
Frame thickness = 28mm, forming the complete size 40×40×28mm
|
|
6. Speed Grade Code
|
K
|
Medium-high speed grade, fixed rated speed 22000 RPM
|
|
7. Sensor & Frame Form Code
|
0011
|
00 = Equipped with pulse speed feedback sensor; 1 = Ribless plastic frame for standard 1U equipment installation
|
4. Wire Connection Definition Table
|
Wire Color
|
Functional Definition
|
Marking Symbol
|
|
Red
|
Positive DC Power Input
|
⊕
|
|
Black
|
Negative DC Power Input
|
⊖
|
|
Yellow
|
Pulse Speed Sensor Signal
|
Sensor
|
|
Brown
|
PWM Speed Control Signal
|
Control
|
5. Core Product Features & Advantages
5.1 PWM Intelligent Speed Regulation
The fan integrates independent PWM control circuit. Users can adjust the fan rotation speed according to the real-time load of equipment. It effectively reduces power consumption and operating noise under low load conditions, realizing energy-saving intelligent heat dissipation.
5.2 Real-time Pulse Speed Monitoring Sensor
Equipped with pulse output sensor, the host system can continuously read real-time fan speed data. It supports automatic abnormal alarm when the fan stalls or fails, greatly improving the operation safety of critical IT and medical equipment.
5.3 Dual-layer Built-in Motor Safety Protection
Two protection mechanisms prevent permanent motor damage:
-
Locked rotor burnout protection: Automatically cut off the current when the fan impeller is blocked by foreign objects;
-
Reverse polarity protection: The fan will not be damaged if the positive and negative power wires are connected reversely by mistake.
5.4 Ribless Frame Design for Flexible 1U Assembly
Adopts ribless smooth plastic frame, which reduces internal space occupation inside compact 1U chassis, avoids vibration resonance interference, and matches the standard mounting hole size of most 1U servers, network switches and embedded power supplies.
5.5 Long L10 Service Life & Wide Temperature Adaptability
High-precision bearing system is adopted, with L10 service life up to 30000 hours under 60℃ continuous operation. Stable operation can be guaranteed within -20℃ ~ +60℃ wide temperature range, adapting to complex industrial working environments.
5.6 UL94V-0 Flame Retardant Material & Full Global Certifications
Both frame and impeller are made of UL94V-0 flame retardant plastic to meet strict industrial fire safety standards. The fan has passed UL, CSA, EN and RoHS certifications, fully meeting the export standards of North America, Europe and other global regions.
6. Main Application Scenarios
This 40×40×28mm ribless DC12V low power cooling fan is widely applied in high-density heat dissipation devices:
-
1U rack servers, network switches, firewalls and communication chassis
-
Industrial embedded controllers, servo amplifiers and high-density power modules
-
Medical imaging equipment, laboratory diagnostic testing instruments
-
Compact industrial automation equipment, small high-power charging equipment
7. Product Competitive Highlights Summary
-
Smooth ribless plastic frame design, saving internal space for narrow 1U equipment
-
Upgraded 9GAX low power series, stable 800Pa high static pressure for complex blocked air ducts
-
Dual functional design: PWM speed regulation + real-time pulse speed feedback monitoring
-
Dual motor safety protection, UL94V-0 flame retardant plastic construction
-
Wide operating temperature range and long L10 service life for 24-hour continuous industrial operation
-
Complete global safety and environmental certifications to support worldwide equipment export
∷
