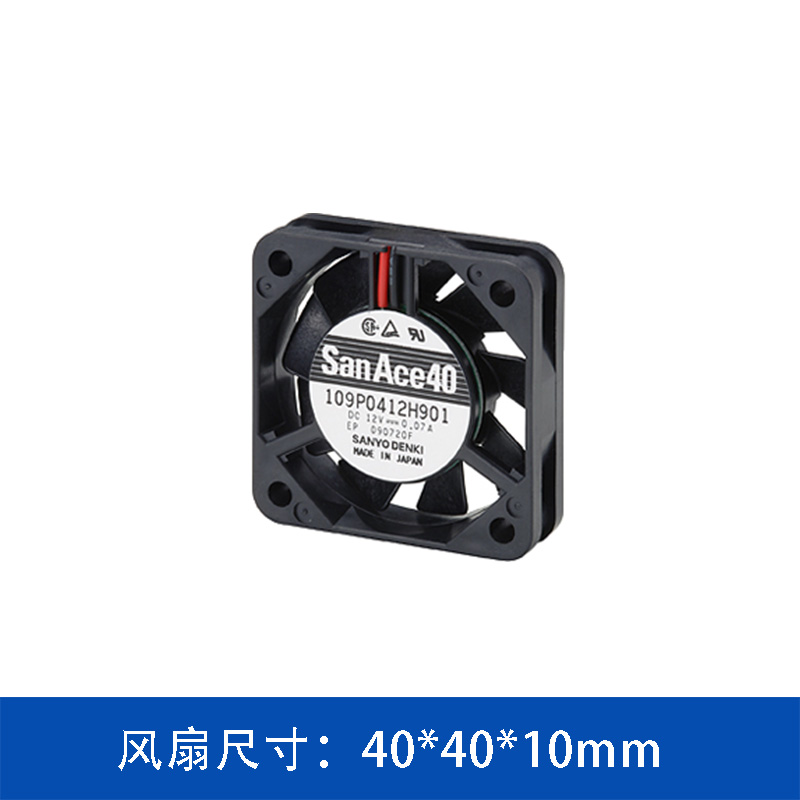

4010 5V DC COOLING FAN

109P0405M901

Brand: SanAce (Japan sanyodenki)
Size: 40*40*10mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire FG
Product description: Sanyo Denki San Ace 40 series 5V DC axial fan, 40x40x10mm, model 109P0405M901, 5V rated voltage, 5000 RPM speed, 21dB(A) low noise, 40000 hours lifespan (60℃), suitable for electronic devices, industr
INQUIRY

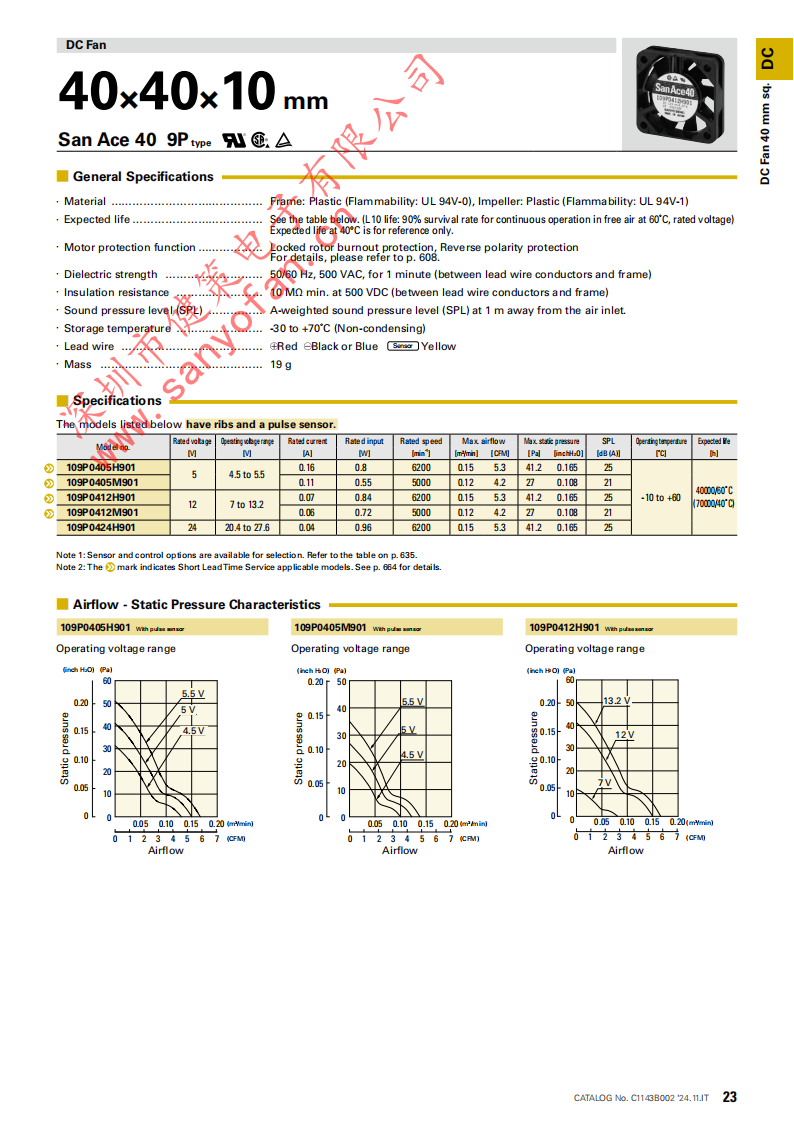

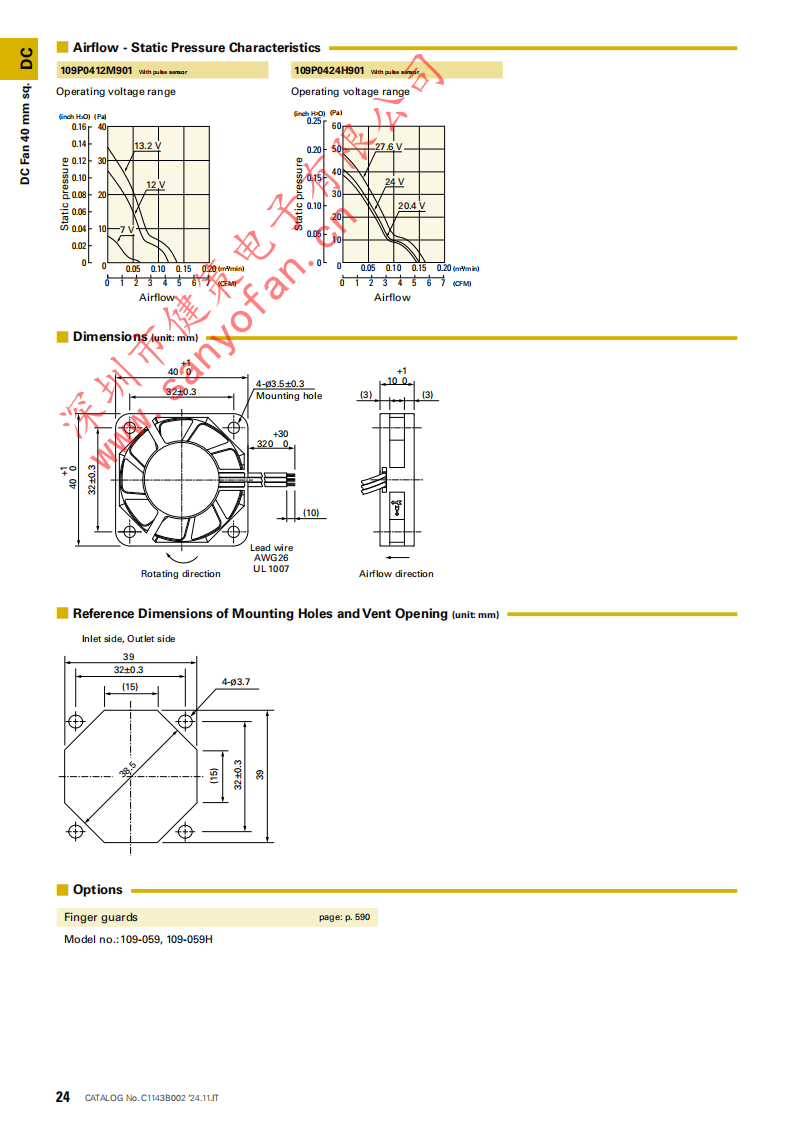

Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	109P0405M901	5	4.5~5.5	0.11	0.55	5000	0.12	4.2	27	2.7432	0.108	21

PRODUCT PRESENTATION

Sanyo Denki San Ace 40 5V DC Axial Fan 40x40x10mm 109P0405M901

The Sanyo Denki San Ace 40 series 5V DC axial fan is a high-performance cooling solution designed for compact electronic devices and industrial applications. With a compact 40x40x10mm size and low noise operation, it provides efficient airflow and long-term reliability.

Key Features

Compact Design: 40x40x10mm frame size, ideal for space-constrained applications
Low Noise: 21dB(A) sound pressure level for quiet operation
High Efficiency: 5000 RPM speed and 0.12m³/min airflow
Long Lifespan: 40000 hours at 60℃ operating temperature
Pulse Sensor: Built-in pulse sensor for speed monitoring
RoHS Compliant: Environmentally friendly design

Specifications

Parameter	Value
Model No.	109P0405M901
Frame Size	40mm
Frame Thickness	10mm
Frame Material	Plastic
Rated Voltage	5V DC
Operating Voltage Range	4.5~5.5V DC
Rated Current	0.11A
Rated Input Power	0.55W
Rated Speed	5000 RPM
Max. Airflow	0.12m³/min (4.2 CFM)
Max. Static Pressure	27Pa (0.108 inchH2O)
Sound Pressure Level (SPL)	21dB(A)
Operating Temperature	-10℃ to +60℃
Expected Life	40000 hours (60℃), 70000 hours (40℃)
Mass	19g
Sensor Type	Pulse sensor
PWM Control Function	No
Ribbed Frame	Yes

Applications

Application Field	Examples
Electronic Devices	Computers, laptops, servers, routers
Industrial Control	PLCs, industrial computers, control panels
Communication Equipment	Switches, routers, base stations
Consumer Electronics	TVs, set-top boxes, game consoles
Medical Devices	Diagnostic equipment, patient monitors
Automotive Electronics	In-vehicle computers, navigation systems

Compliance & Standards

UL Ratings: UL recognized component
CSA Standards: CSA certified
EN Standards: EN compliant
RoHS Directive: RoHS compliant, lead-free design

Ordering Information

Model No.: 109P0405M901
Package Quantity: 1 piece
Country of Origin: Japan

Technical Support

For technical inquiries, please contact Sanyo Denki customer support or visit the official website for detailed datasheets and application notes.
