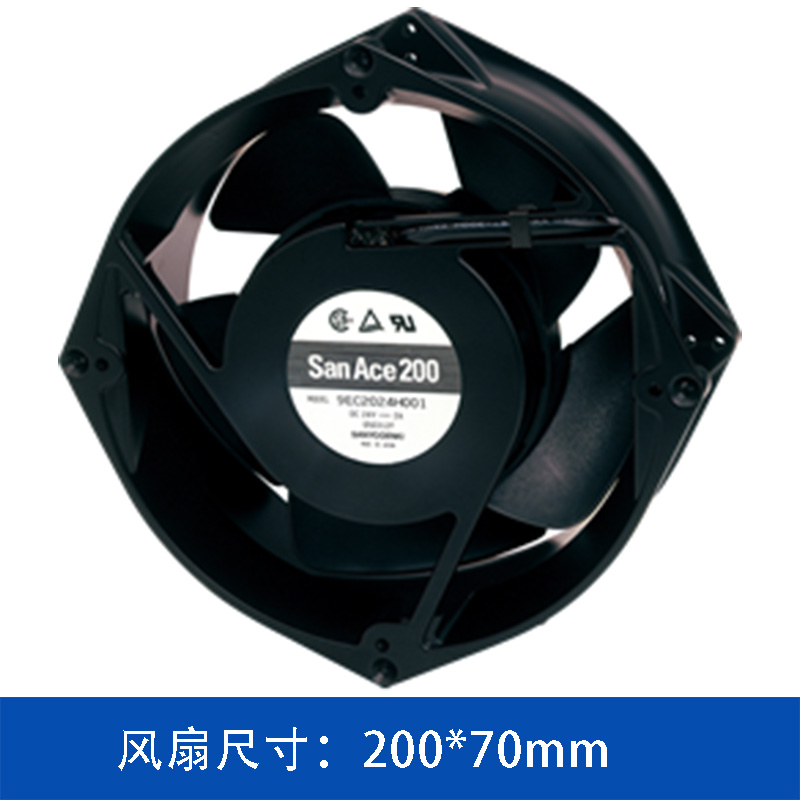

Sanyo Denki San Ace 9EC2024H001 – 200x70mm 24V DC High-Performance Industrial Cooling Fan
Maximum Airflow (11.0 m³/min) & Static Pressure (360 Pa) with Pulse Sensor Output
Product Overview
Unlock superior thermal management for your most demanding applications with the Sanyo Denki San Ace 9EC2024H001. As a flagship model of the renowned San Ace 200 Series, this 200x70mm axial fan delivers industry-leading reliability and performance at 24V DC.
Engineered for high-density cooling in data centers, telecommunications infrastructure, and industrial power systems, the 9EC2024H001 combines robust airflow (388 CFM) with exceptional static pressure (360 Pa). Its integrated pulse sensor enables intelligent system monitoring, allowing your control unit (PLC/MCU) to track RPM in real-time and detect failures instantly.
Constructed with a die-cast aluminum frame and a flame-retardant (UL94V-1) impeller, this fan guarantees durability and safety in harsh operating environments ranging from -20°C to +60°C.
Key Features & Benefits
-
Robust Cooling Performance: Delivers up to 11.0 m³/min (388 CFM) airflow and 360 Pa static pressure, effectively pushing air through high-resistance heatsinks and dense server racks.
-
Real-Time Monitoring: Integrated pulse sensor output provides precise RPM feedback, enabling proactive maintenance and instant failure detection.
-
Rugged Industrial Design: Features a heavy-duty aluminum frame for superior structural rigidity and heat dissipation, paired with a UL94V-1 rated plastic impeller.
-
Stable Voltage Operation: Operates reliably within a voltage range of 20.4V to 26.4V DC, ensuring consistent performance even in fluctuating 24V power systems.
-
Extended Service Life: Rated for 40,000 hours at 60°C (L10 life), significantly reducing maintenance downtime and Total Cost of Ownership (TCO).
-
Global Safety Certifications: Fully compliant with UL, cUL, EN safety standards and RoHS environmental directives.
Technical Specifications
|
Parameter
|
Specification
|
|
Model Number
|
9EC2024H001
|
|
Series
|
San Ace 200 (9EC Type)
|
|
Frame Size
|
200 x 200 x 70 mm
|
|
Rated Voltage
|
24 VDC
|
|
Operating Voltage Range
|
20.4 ~ 26.4 VDC
|
|
Rated Current
|
2.0 A
|
|
Rated Input Power
|
48.0 W
|
|
Rated Speed
|
3,600 min⁻¹ (RPM)
|
|
Max Airflow
|
11.0 m³/min (388 CFM)
|
|
Max Static Pressure
|
360 Pa (1.45 inchH₂O)
|
|
Noise Level (SPL)
|
60 dB(A) @ 1m
|
|
Bearing Type
|
Ball Bearing
|
|
Expected Life
|
40,000 hrs @ 60°C (70,000 hrs @ 40°C)
|
|
Operating Temperature
|
-20°C to +60°C
|
|
Storage Temperature
|
-30°C to +70°C
|
|
Insulation Class
|
Class E (120°C)
|
|
Functions
|
Pulse Sensor, Locked Rotor Alarm
|
|
Wire Colors
|
Red (+), Black (-), Yellow (Pulse)
|
|
Weight
|
Approx. 1.8 kg
|
|
Certifications
|
UL, cUL, TUV, CE, RoHS
|
Note: This model features pulse sensor output for monitoring but does not support PWM speed control. For PWM functionality, please refer to the 9GV or 9GA series.
Ideal Applications
The 9EC2024H001 is engineered for critical cooling scenarios where reliability is non-negotiable:
-
Data Centers & Servers: Cooling high-performance CPU/GPU clusters, blade servers, and storage arrays.
-
Telecommunications: Outdoor base station cabinets, 5G network equipment, and switching stations.
-
Industrial Power Supplies: UPS systems, inverters, welding machines, and laser power sources.
-
Medical Equipment: MRI, CT scanners, and diagnostic devices requiring stable, continuous airflow.
-
Semiconductor Manufacturing: Process chamber cooling and lithography equipment ventilation.
-
Transportation: EV charging stations, railway control systems, and battery management cooling.
Dimensions & Mounting Details
-
Overall Dimensions: 200mm (W) x 200mm (H) x 70mm (D)
-
Mounting Hole Spacing: 170mm x 170mm (Standard 4-corner mounting pattern)
-
Airflow Direction: Intake from Label Side → Exhaust from Lead Wire Side (Standard)
-
Rotation Direction: Clockwise (when viewed from the intake/label side)
Frequently Asked Questions (FAQ)
Q: Can I use this 24V fan in a 12V system?
A: No. The 9EC2024H001 requires a minimum operating voltage of 20.4V. For 12V applications, please consider our 9EC2012 or 9GA2012 series models.
Q: How do I connect the pulse sensor wire?
A: The Yellow wire is the pulse sensor output. Connect it to your controller's input pin to receive RPM signals (typically 2 pulses per revolution). This allows for speed monitoring and fault detection.
Q: Is this fan waterproof for outdoor use?
A: The standard 9EC2024H001 is rated IP20 (protection against solid objects >12mm). For direct outdoor exposure or dusty environments, we recommend installing the fan inside an IP54/IP65 rated enclosure or selecting our specific IP68 waterproof series.
Q: Do you offer bulk pricing or custom cable configurations?
