3628 DC12V COOLING FAN

9GX3612P3K001

Brand: SanAce (Japan sanyodenki)

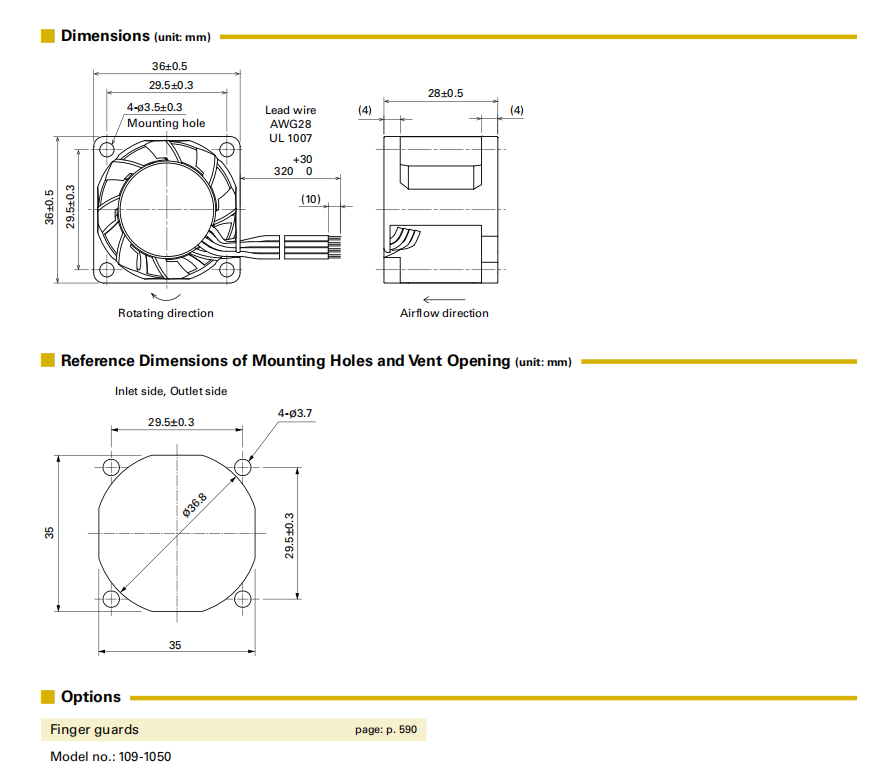

Size: 36x36x28mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki 9GX3612P3K001 DC Axial Fan, 36x36x28mm frame, 12V/1.3A. Features 838Pa static pressure, 24.4CFM airflow, PWM control and pulse sensor. Long life 40,000 hours. Ideal for industrial cooling
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9GV3612G301	12	7-13.2	0.34	4.08	14000	0.4	14.1	275	28.0416	1.104	52
暂无	9GV3612J301	12	7-13.2	0.75	9	19000	0.55	19.4	525	53.5432	2.108	58.5
	9GX3612P3K001	12	10.8~13.2	1.3	15.6	24000	0.69	24.4	838	85.5218	3.367	66
			~
			~
			~
			~

PRODUCT PRESENTATION

San Ace 36 DC Cooling Fan 9GX3612P3K001 Product Details

Product Overview

The San Ace 36 DC Cooling Fan 9GX3612P3K001 is a high-performance axial cooling fan designed for efficient thermal management in various electronic and industrial applications. Manufactured by Sanyo Denki, this fan combines reliability with advanced features such as PWM control and a pulse sensor for precise speed monitoring. With a compact frame size of 36mm x 36mm x 28mm, it is ideal for space-constrained environments where effective cooling is essential.

Key Features

Compact Design: Small footprint suitable for tight spaces.
PWM Control: Allows for precise speed control and energy efficiency.
Pulse Sensor: Enables real-time monitoring of fan speed.

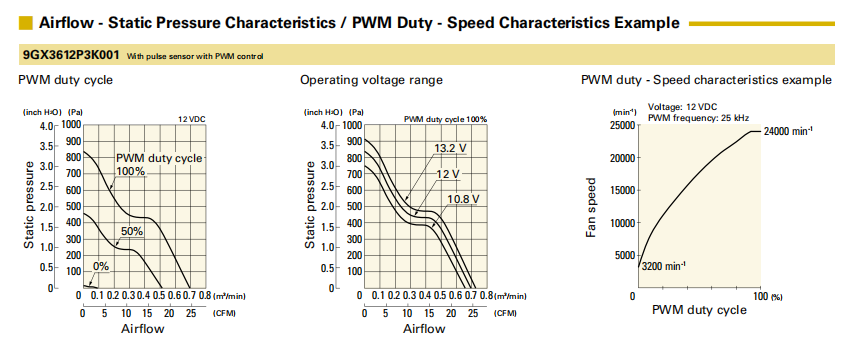

High Performance: Delivers maximum airflow of 0.69 m³/min and static pressure of 838 Pa.
Durability: Designed for long life with an expected lifespan of 40,000 hours at 60°C.
Wide Operating Temperature Range: Functions reliably from -10°C to +60°C.

Specifications

表格

Parameter	Value
Model No.	9GX3612P3K001
Frame size [mm]	36
Frame thickness [mm]	28
Frame material	Plastic
Rated voltage [V]	12
Operating voltage range [V]	10.8 ~ 13.2
Rated current [A]	1.3
Rated input [W]	15.6
Rated speed [min⁻¹]	24000
Max. airflow [m³/min]	0.69
Max. airflow [CFM]	24.4
Max. static pressure [Pa]	838
Max. static pressure [inchH₂O]	3.367
SPL [dB(A)]	66
Operating temperature [°C]	-10 ~ +60
Expected life [h]	40000/60°C (70000/40°C)
Mass [g]	46
Sensor type	Pulse sensor
PWM control function	Yes
Ribbed	Yes

Applications

The San Ace 36 DC Cooling Fan 9GX3612P3K001 is suitable for a wide range of applications, including:

表格

Application	Description
Telecommunications	Cooling for routers, switches, and base stations.
Industrial Equipment	Thermal management in control panels and automation systems.
Medical Devices	Ensuring reliable operation of diagnostic and monitoring equipment.
Consumer Electronics	Cooling for high-performance computing and gaming systems.
Power Supplies	Maintaining optimal temperatures in power conversion units.

Compliance and Standards

UL Ratings: Meets UL safety standards for electrical equipment.
CSA Standards: Compliant with Canadian Standards Association requirements.
EN Standards: Adheres to European Norms for safety and performance.
RoHS Directive: Free from hazardous substances, ensuring environmental safety.

Download Materials List

For detailed technical documentation, please refer to the download materials list available on the Sanyo Denki website. This includes datasheets, application notes, and mounting instructions to assist in the integration of this fan into your projects.

Related Information

For further details on the San Ace 36 series and other cooling solutions, visit the Sanyo Denki website or contact their customer support team. They provide comprehensive resources to help you select the right cooling solution for your specific needs.
