San Ace Low Power Consumption Fan 9GA0412P3J011 Product Introduction
SANYO DENKI San Ace 40 series model 9GA0412P3J011 is a compact 40x40x28 mm DC axial cooling fan developed for high-density heat dissipation scenarios. This fan features ultra-high rotational speed, low power loss, powerful static pressure output, built-in PWM speed regulation function and pulse signal speed feedback sensor. It passes multiple international safety and environmental certifications, with stable long service life under wide temperature environment, widely used in 1U rack servers, industrial control equipment, communication power supply, medical instruments and compact embedded hardware cooling.
1. Complete Technical Specification Table
|
Item
|
Parameter Value
|
Item
|
Parameter Value
|
|
Model Number
|
9GA0412P3J011
|
Frame Size
|
40 mm x 40 mm
|
|
Frame Thickness
|
28 mm
|
Frame Material
|
Plastic
|
|
Rated Voltage
|
12 V DC
|
Operating Voltage Range
|
10.8 V ~ 13.2 V DC
|
|
Rated Current
|
0.49 A
|
Rated Input Power
|
5.88 W
|
|
Rated Rotational Speed
|
18000 min-1
|
Maximum Airflow
|
0.67 m3/min
|
|
Max Airflow CFM Value
|
23.7 CFM
|
Maximum Static Pressure
|
535 Pa
|
|
Max Static Pressure (inchH2O)
|
2.15 inchH2O
|
Sound Pressure Level
|
54 dB(A)
|
|
Operating Temperature Range
|
-20 ℃ ~ +70 ℃
|
Expected Service Life
|
40000 hours at 60 ℃, 70000 hours at 40 ℃
|
|
Net Mass
|
53 g
|
Sensor Type
|
Pulse sensor for speed detection
|
|
PWM Control Function
|
Supported
|
Ribbed Structure
|
Not equipped
|
2. Core Performance Advantages
2.1 High Static Pressure High Speed Heat Dissipation
With a rated speed up to 18000 revolutions per minute, the 9GA0412P3J011 fan generates up to 535 Pa static pressure. It can penetrate dense heat sinks, narrow air ducts and compact cabinet internal structures, solving the heat dissipation difficulty of high-power chips in limited space. The airflow reaches 0.67 cubic meters per minute, balancing airflow volume and wind pressure to avoid local overheating of equipment.
2.2 PWM Adjustable Speed with Pulse Speed Feedback
This model integrates full PWM speed regulation function. Users can adjust fan operating speed in real time according to equipment internal temperature to reduce idle power consumption and running noise. The built-in pulse sensor outputs real-time rotational speed signal to the main control board, realizing closed-loop temperature monitoring and fault alarm when the fan stalls or speed drops abnormally.
2.3 Low Power Consumption & Long Service Life
Classified as SANYO DENKI Eco Products, the fan optimizes internal motor winding and blade aerodynamic design to reduce invalid power loss. The expected service life reaches 40000 hours under 60 ℃ working environment and 70000 hours under 40 ℃, effectively lowering equipment later maintenance and fan replacement frequency.
2.4 Wide Temperature Adaptability & Full Certification Support
The stable operating temperature range covers minus 20 degrees Celsius to plus 70 degrees Celsius, adapting to industrial low-temperature workshop and high-load continuous operation environment. The product obtains UL safety rating, CSA standard certification, EN standard certification and RoHS directive compliance, meeting export standards for electronic equipment in Europe, America and other regions.
3. Dimension & Structure Description
-

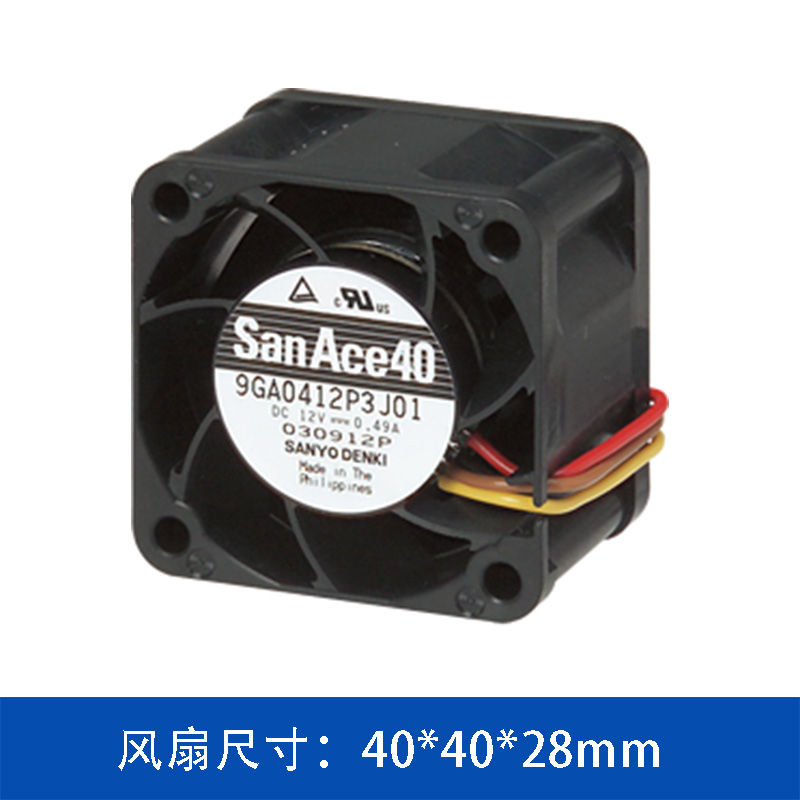

Overall outer frame size: 40mm length × 40mm width × 28mm thickness, standard square compact installation size, compatible with mainstream 4028 fan mounting holes of server and industrial equipment.
-
All plastic integrated molding frame, lightweight with overall mass only 53 grams, will not cause extra load to thin cabinet mounting brackets.
-
Non ribbed blade design, focusing on improving wind pressure performance, prioritizing heat dissipation efficiency for narrow channel heat dissipation scenes rather than low noise requirements.
4. Typical Application Scenarios Table
|
Application Industry
|
Specific Equipment Matching
|
Core Demand Matching Point
|
|
Server Data Center
|
1U rack mount server, edge computing host
|
High static pressure to dissipate heat of CPU and GPU in narrow chassis
|
|
Industrial Automation
|
PLC controller, industrial switch, embedded industrial computer
|
Wide temperature resistance, long service life, speed signal monitoring function
|
|
Communication Power
|
High frequency switching power supply, telecom base station power module
|
PWM speed regulation to reduce energy consumption under light load
|
|
Medical Equipment
|
Small medical detection instrument, portable medical analysis hardware
|
RoHS environmental certification, stable continuous operation performance
|
|
New Energy Control
|
Miniature energy storage converter, battery management system
|
Compact 4028 size, low power consumption design
|
5. Installation & Usage Notes
-
The fan operating voltage must be controlled within 10.8 V to 13.2 V DC. Long-term operation below or above the voltage range will shorten service life and cause abnormal speed fluctuation.
-
When using PWM speed control, match the control signal voltage level with the equipment main board to ensure normal speed adjustment and pulse signal output.
-
Avoid installing the fan in environment with heavy dust, oil mist or corrosive gas. If used in harsh working conditions, add external dust-proof and waterproof protection structure separately.
-
The service life data is tested under standard laboratory environment. Actual service life will decrease when operating continuously at the upper limit of 70 ℃ temperature.
-
Do not block the air inlet and outlet of the fan during installation, reserve sufficient air circulation space to guarantee the fan full airflow and static pressure performance.
6. Product Certification List
-
UL ratings safety certification
-
CSA international electrical standard certification
-
EN European electrical equipment standard certification
-
RoHS directive hazardous substance limit compliance certification
-
SANYO DENKI Eco Products low energy consumption product certification
7. Supporting Optional Accessories & Related Models
Users can match standard fan fixing screws, anti-vibration rubber pads and wiring terminal plugs according to installation needs. For other San Ace 40 series fans with different voltage, speed and sensor functions, check the applicable models list on this page to select alternative cooling solutions with same 40x40x28mm installation size.
∷
