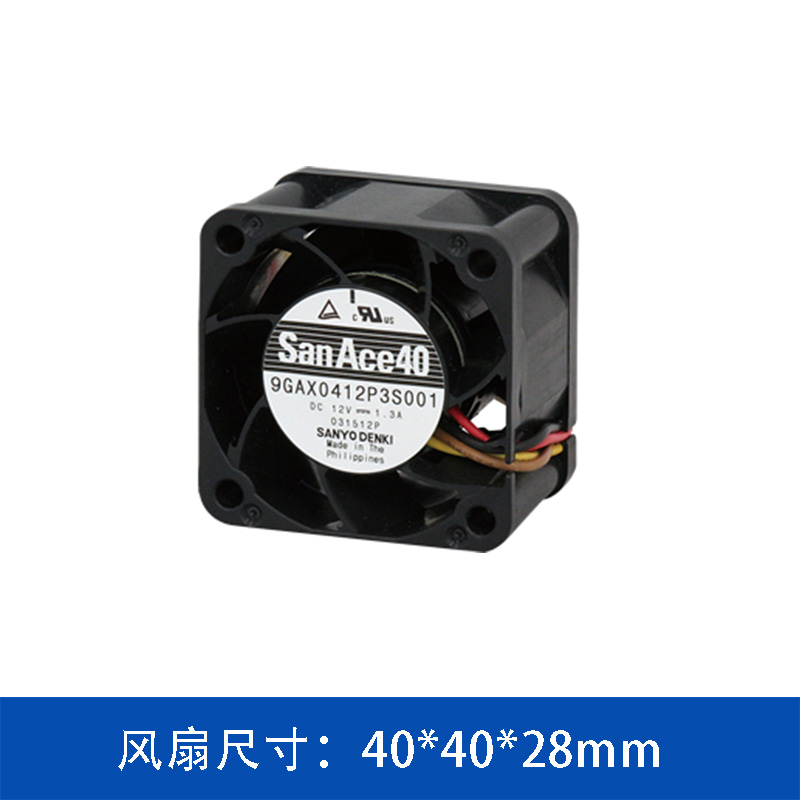

4028 12V Low Power Consumption Fan

9GAX0412P3K003

Brand: SanAce (Japan sanyodenki)
Size:40x40x28mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 4-wire PWM + FG
Product description: Sanyo Denki San Ace 40 model 9GAX0412P3K003, 40x40x28mm low power DC12V fan with ribbed plastic frame for 1U rack equipment. Built-in PWM speed control & pulse speed sensor, 22000 RPM, 800Pa max stati
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9GAX0412P3S001	12	10.2~13.8	1.3	15.6	25000	0.9	31.8	1000		4.02	64
暂无	9GAX0412P3S0011	12	10.2~13.8	1.3	15.6	25000	0.9	31.8	1000		4.02	64
暂无	9GAX0412P3S003	12	10.2~13.8	1.3	15.6	25000	0.9	31.8	1000		4.02	64
暂无	9GAX0412P3S0031	12	10.2~13.8	1.3	15.6	25000	0.9	31.8	1000		4.02	64
暂无	9GAX0412P3K001	12	10.2~13.8	0.92	11.04	22000	0.81	28.6	800		3.21	61
暂无	9GAX0412P3K0011	12	10.2~13.8	0.92	11.04	22000	0.81	28.6	800		3.21	61
暂无	9GAX0412P3K003	12	10.2~13.8	0.92	11.04	22000	0.81	28.6	800		3.21	61
暂无	9GAX0412P3K0031	12	10.2~13.8	0.92	11.04	22000	0.81	28.6	800		3.21	61

PRODUCT PRESENTATION

Sanyo Denki San Ace 40 Fan 9GAX0412P3K003 Full Product Introduction

1. Product Overview

The 9GAX0412P3K003 is a member of Sanyo Denki upgraded 9GAX Low Power Consumption DC Fan series, compact 40×40×28mm dimension specially designed for 1U rack-mounted equipment.

This DC12V industrial cooling fan adopts reinforced ribbed plastic frame, integrated PWM speed adjustment circuit and pulse speed feedback sensor. It balances low power consumption, stable 800Pa high static pressure and long L10 service life, with complete global safety & environmental certifications. It is widely adopted in high-density narrow-space heat dissipation scenarios including 1U servers, industrial controllers, medical diagnostic instruments and embedded power supplies.

2. Complete Technical Specification Table

表格

Item	Technical Parameter
Model Number	9GAX0412P3K003
Product Line	San Ace 40 Low Power Consumption Fan (9GAX upgraded series)
Overall Size	40 mm × 40 mm × 28 mm
Frame Structure	Ribbed Reinforced Plastic Frame (Ribbed = Yes)
Frame & Impeller Material	UL94V-0 Flame Retardant Plastic
Rated Voltage	DC 12 V
Operating Voltage Range	DC 10.8 ~ 13.2 V
Rated Current	0.92 A
Rated Input Power	11.04 W
Rated Rotation Speed	22000 min⁻¹ (RPM)
Maximum Airflow	0.81 m³/min / 28.6 CFM
Maximum Static Pressure	800 Pa / 3.21 inchH₂O
Sound Pressure Level (SPL)	61 dB(A) (1m air inlet, A-weighted test)
Net Weight	53 g
Operating Temperature	-20 ℃ ~ +60 ℃ (Non-condensing environment)
Storage Temperature	-30 ℃ ~ +70 ℃ (Non-condensing environment)
L10 Expected Service Life	30000 hours at 60℃; 53000 hours at 40℃
PWM Speed Control Function	Supported (Yes)
Sensor Type	Pulse Output Speed Feedback Sensor
Built-in Motor Protection	Locked Rotor Burnout Protection + Reverse Polarity Protection
Dielectric Strength	50/60 Hz, 500 VAC, withstand 1 minute (wire conductors to frame)
Insulation Resistance	Min. 10 MΩ under 500 VDC (wire conductors to frame)
Global Certifications	UL Ratings, CSA Standards, EN Safety Standards, RoHS Directive

3. Model Number Coding Breakdown Table

Full Model Code: 9GAX 04 12 P 3 K 003

表格

Code Section	Code Content	Detailed Explanation
1. Series Type	9GAX	Upgraded low power consumption fan; 9GA = standard low power series, X = upgraded performance version
2. Frame Size Code	04	Corresponding frame size: 40mm × 40mm square fan
3. Voltage Code	12	Rated operating voltage: DC 12V
4. Function Identifier	P	Built-in PWM speed control circuit, adjustable fan speed via external PWM signal
5. Frame Thickness Code	3	Frame thickness = 28mm, forms full dimension 40×40×28mm
6. Speed Grade Code	K	Medium-high speed grade, fixed rated speed 22000 RPM
7. Sensor & Frame Form Code	003	00 = Equipped with pulse speed sensor; 3 = Ribbed reinforced frame specially for 1U rack equipment

4. Wire Pin Definition Table

表格

Wire Color	Function	Symbol Mark
Red	Positive DC Power Input	⊕
Black	Negative DC Power Input	⊖
Yellow	Pulse Speed Sensor Signal	Sensor
Brown	PWM Speed Control Signal	Control

5. Core Product Features & Advantages

5.1 PWM Intelligent Speed Regulation

The fan integrates independent PWM control circuit. Users can adjust fan rotation speed according to real-time equipment load, reducing power loss and running noise under low-load conditions, realizing energy-saving intelligent heat management.

5.2 Real-time Pulse Speed Monitoring Sensor

Equipped with pulse output sensor, the host system can continuously read real-time fan speed data. It supports automatic fault alarm when fan stalls or malfunctions, improving operation safety of critical IT and medical devices.

5.3 Dual Built-in Motor Safety Protection

Two protection mechanisms prevent permanent motor damage:

Locked rotor protection: Automatically cut off current if impeller is blocked by foreign objects;
Reverse polarity protection: No permanent damage when positive/negative power wires are connected reversely by mistake.

5.4 Reinforced Ribbed Frame for 1U Rack

Unique ribbed plastic frame improves structural rigidity, effectively reduces vibration resonance inside narrow 1U chassis, and perfectly matches standard mounting holes of most 1U servers, network switches and embedded power supplies.

5.5 Long L10 Lifespan & Wide Temperature Adaptability

Adopts high-precision bearing system, L10 service life reaches 30000 hours under continuous 60℃ operation. Stable performance is guaranteed within -20℃ ~ +60℃ wide temperature range, suitable for complex industrial working environments.

5.6 UL94V-0 Flame Retardant Material & Global Certifications

Frame and impeller are made of UL94V-0 flame retardant plastic to meet strict industrial fire safety standards. The fan passes UL, CSA, EN and RoHS certifications, fully compliant with export standards for North America, Europe and other global regions.

6. Main Application Fields

This 40×40×28mm ribbed DC12V low power cooling fan is widely used in high-density heat dissipation equipment:

1U rack servers, network switches, firewalls and communication chassis
Industrial embedded controllers, servo amplifiers and high-density power modules
Medical imaging equipment, laboratory diagnostic testing instruments
Compact industrial automation equipment, small high-power charging devices

7. Product Competitive Highlights Summary

Reinforced ribbed frame design, high structural stability for standard 1U rack installation
Upgraded 9GAX low power series, stable 800Pa high static pressure for blocked complex air ducts
Dual functional design: PWM speed control + real-time pulse speed monitoring
Dual motor safety protection, UL94V-0 flame retardant plastic construction
Wide operating temperature range and long L10 service life for 24/7 continuous industrial operation
Complete global safety and environmental certifications to support worldwide equipment export
