4015 5V Low Power Consumption Fan

9GA0405P7C001

Brand: SanAce (Japan sanyodenki)
Size:40x40x15mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 40x40x15mm low power DC fan 9GA0405P7C001. Features 5V rated voltage, PWM speed control, and low noise operation. Max airflow 0.24m³/min. Ideal for servers, telecom, and medical e
INQUIRY

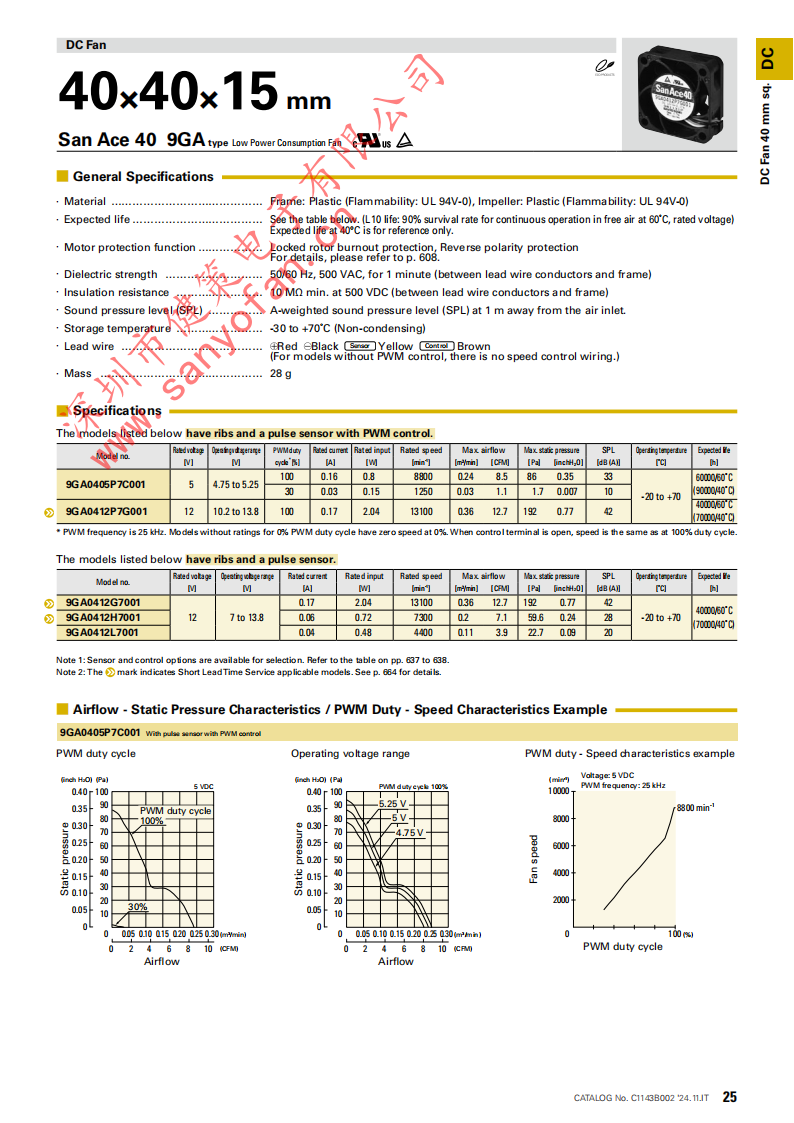

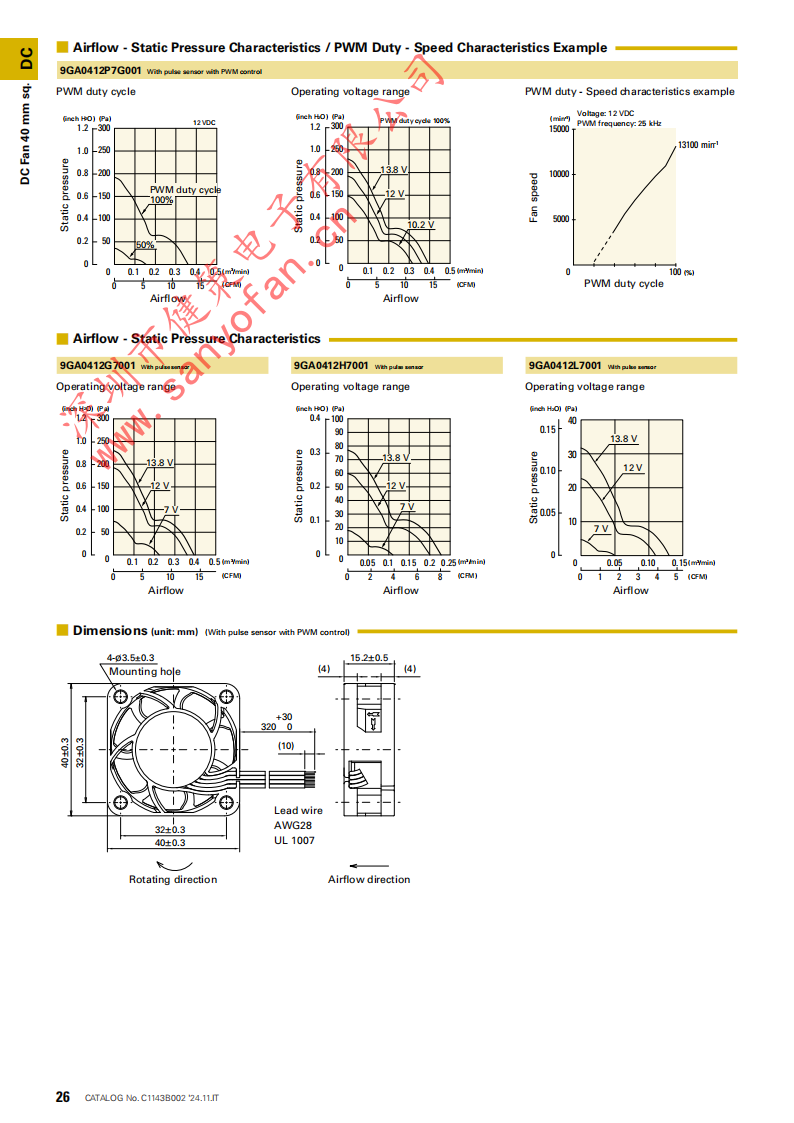

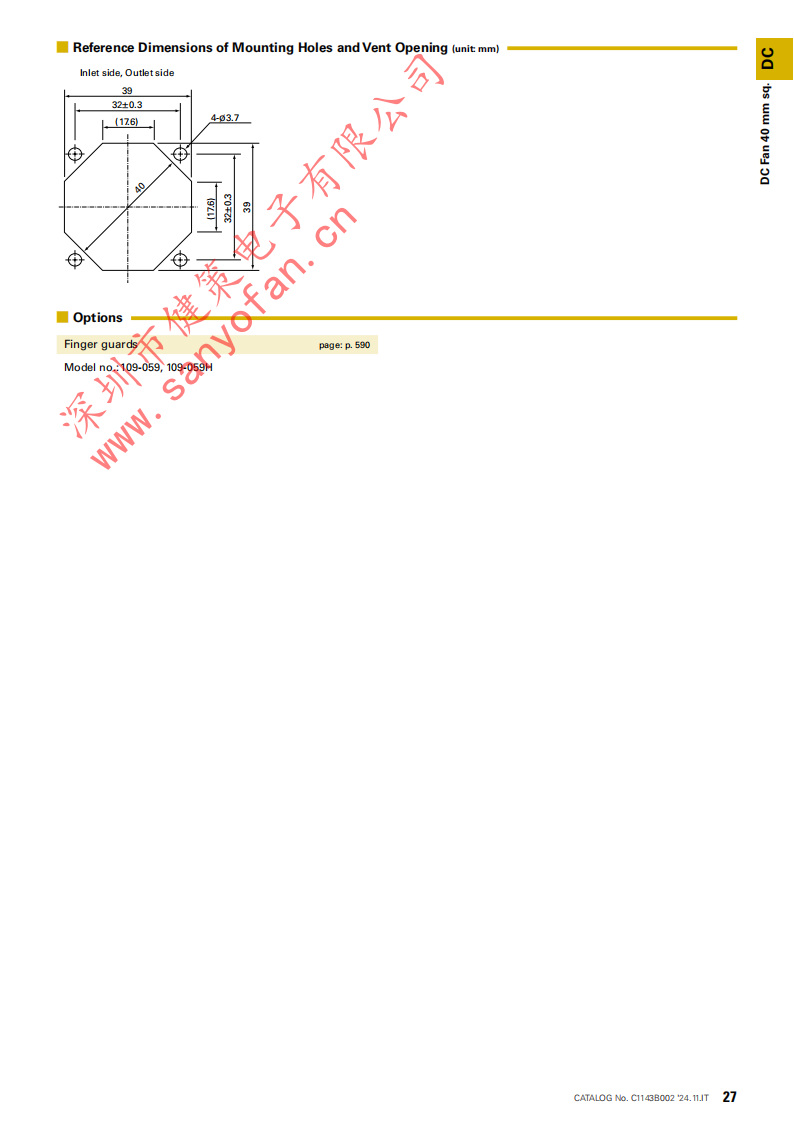

Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GA0405P7C001	5	4.75~5.25	0.16	0.8	8800	0.24	8.5	86		0.35	33

PRODUCT PRESENTATION

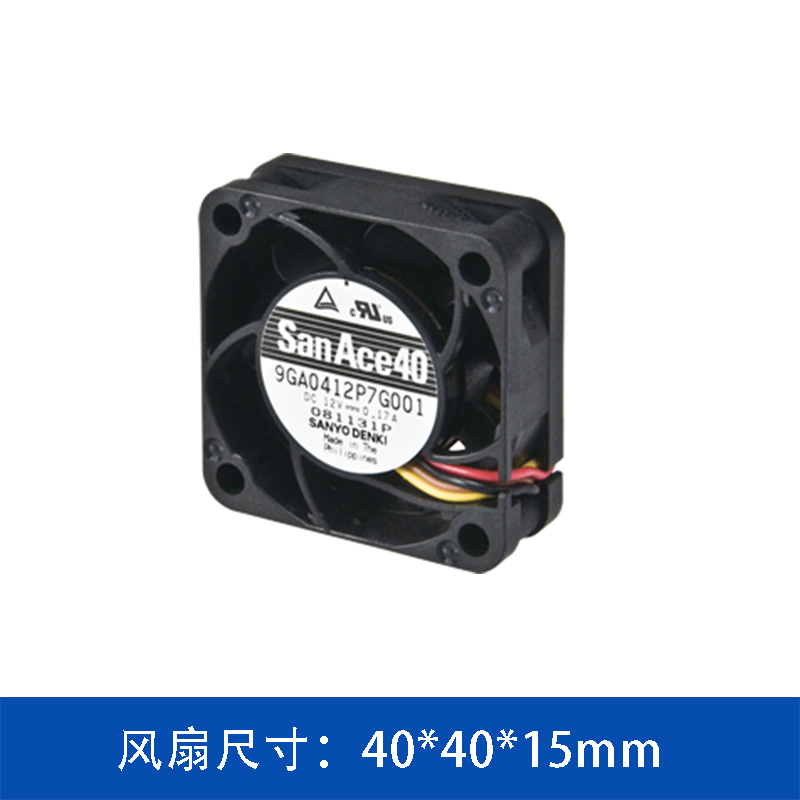

Low Power Consumption Fan San Ace 40

Model: 9GA0405P7C001

The SANYO DENKI San Ace 40 (9GA0405P7C001) is a high-performance, low power consumption DC cooling fan designed for applications requiring efficient thermal management in compact spaces. With its 40mm frame size and advanced PWM control function, this fan delivers optimal airflow while minimizing energy usage and acoustic noise. Built to rigorous quality standards, it ensures long-term reliability for critical electronic systems.

Key Features & Benefits

Energy Efficient: Specifically designed as an "Eco Product" with low rated input (0.8W) to reduce overall system power consumption.
Precise Speed Control: Equipped with a PWM (Pulse Width Modulation) control function, allowing for dynamic speed adjustment based on system temperature.
High Reliability & Long Life: Features a robust design with an expected life of 60,000 hours at 60°C and 90,000 hours at 40°C. Includes a pulse sensor for rotation detection.
Quiet Operation: Engineered for low noise output (33 dB(A) at max speed), making it suitable for noise-sensitive environments.
Compact & Lightweight: Small 40x40x15mm form factor and lightweight plastic frame (28g) for easy integration into dense electronic assemblies.
Wide Operating Temperature: Reliable performance in ambient temperatures ranging from -20°C to +70°C.

Technical Specifications

Parameter	Specification
Model No.	9GA0405P7C001
Frame Size	40 x 40 x 15 mm
Rated Voltage	5 VDC
Operating Voltage Range	4.75 ~ 5.25 VDC
Rated Current	0.16 A
Rated Input Power	0.8 W
Rated Speed	8800 min⁻¹ (RPM)
Max. Airflow	0.24 m³/min (8.5 CFM)
Max. Static Pressure	86 Pa (0.35 inchH₂O)
Sound Pressure Level (SPL)	33 dB(A)
Expected Life	60,000 hours (at 60°C) / 90,000 hours (at 40°C)
Mass	28 g
Frame Material	Plastic (Ribbed for strength)
Control & Sensing	PWM Control Function, Pulse Sensor

Applications

The San Ace 40 9GA0405P7C001 is ideal for cooling a variety of electronic equipment where space is limited and power efficiency is critical.

Industry	Typical Applications
Information Technology	Small form-factor PCs, Network Attached Storage (NAS), Server motherboards, High-performance computing modules.
Telecommunications	5G base station components, Routers, Switches, Optical transport equipment.
Industrial & Automation	Programmable Logic Controllers (PLCs), Power supplies, Motor drives, Control panels.
Medical Equipment	Diagnostic imaging devices, Patient monitors, Laboratory analyzers, Portable medical devices.

Compliance & Certifications

Eco Product: Meets internal standards for low power consumption.
Safety & Environmental: UL recognized, CSA certified, compliant with EN standards and RoHS directive.
