4015 12V Low Power Consumption Fan

9GA0412L7001

Brand: SanAce (Japan sanyodenki)
Size: 40*40*15mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire FG
Product description: SANYO DENKI San Ace 40x40x15mm low power axial cooling fan (Model 9GA0412L7001) features 12V rated voltage, 0.11m³/min max airflow, and 20dB(A) noise level. Ideal for server, telecom, and precision el
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GA0412L7001	12	7~13.8	0.04	0.48	4400	0.11	3.9	22.7		0.09	20

PRODUCT PRESENTATION

Product Overview

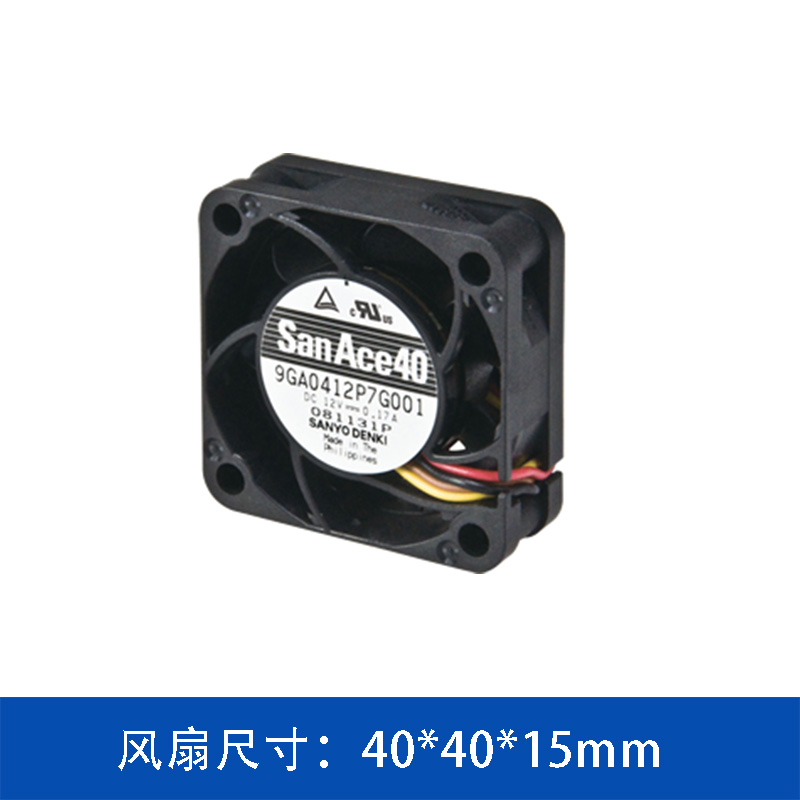

The SANYO DENKI San Ace 40 (Model 9GA0412L7001) is a compact, low-power axial cooling fan designed for efficient thermal management in space-constrained electronic devices. With a plastic frame and ribbed structure, it delivers reliable performance in a 40x40x15mm form factor, making it suitable for a wide range of industrial and commercial applications.

Key Features

Energy-Efficient Design: Rated at only 0.48W, minimizing power consumption while maintaining effective cooling.
Quiet Operation: Ultra-low noise level of 20dB(A) ensures silent performance in noise-sensitive environments.
Wide Operating Range: Functions reliably in temperatures from -20°C to +70°C, with an expected lifespan of 40,000 hours at 60°C (70,000 hours at 40°C).
Pulse Sensor: Equipped with a pulse sensor for rotational speed monitoring, enhancing system reliability.

Technical Specifications

表格

Parameter	Specification
Model Number	9GA0412L7001
Frame Size (mm)	40 x 40 x 15
Rated Voltage (V)	12
Operating Voltage Range (V)	7 - 13.8
Rated Current (A)	0.04
Rated Input (W)	0.48
Rated Speed (min⁻¹)	4400
Max. Airflow (m³/min)	0.11
Max. Airflow (CFM)	3.9
Max. Static Pressure (Pa)	22.7
Max. Static Pressure (inchH₂O)	0.09
Noise Level (dB(A))	20
Operating Temperature (°C)	-20 to +70
Expected Life (hours)	40,000 (at 60°C) / 70,000 (at 40°C)
Mass (g)	28
Frame Material	Plastic
Sensor Type	Pulse Sensor
PWM Control	No
Ribbed	Yes

Applications

表格

Industry	Use Case
Data Centers	Cooling for server racks and network switches
Telecommunications	Thermal management in base stations and routers
Industrial Automation	Cooling control panels and PLC systems
Medical Equipment	Silent cooling for diagnostic and monitoring devices
Consumer Electronics	Heat dissipation in compact power supplies and audio equipment

Compliance & Certifications

Eco-Friendly: Complies with RoHS Directive for environmental safety.
Safety Standards: UL and CSA certified for North American markets.

European Standards: Meets EN standards for electrical safety and performance.
