4015 12V Low Power Consumption Fan

9GA0412P7G001

Brand: SanAce (Japan sanyodenki)
Size: 40*40*15mm
Characteristics: High rotational speed, high static pressure, high air volume
Signal line: 4-wire PWM + FG
Product description: SANYO DENKI San Ace 40 low power consumption axial fan model 9GA0412P7G001, size 40x40x15mm, 12V rated voltage with PWM control. Max airflow 0.36m³/min, designed for energy-efficient cooling in server
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	9GA0412P7G001	12	10.2~13.8	0.17	2.04	13100	0.36	12.7	192	19.558	0.77	42
暂无	9LG0412P3G001	12	10.2~13.8	1.9	22.8	33500	0.93	32.9	1780	181.61	7.15	68
暂无	9LG0412P3S001	12		1.23	14.8	28000	0.77	27.2	1290		5.18	65
暂无	9LG0412P3H001	12		0.69	8.28	22500	0.62	21.9	830		3.33	62
暂无	9LG0424P3G001	24		0.95	22.8	33500	0.93	32.9	1780		7.15	68
暂无	9LG0424P3S001	24		0.61	14.6	28000	0.77	27.2	1290		5.18	65
暂无	9LG0424P3H001	24		0.34	8.16	22500	0.62	21.9	830		3.33	62
暂无	9L0412J301	12		0.31	3.72	11700	0.52	18.4	206		0.827	48
暂无	9L0412H301	12		0.15	1.8	8400	0.37	13.1	106		0.426	40
暂无	9L0412M301	12		0.045	0.54	4000	0.16	5.65	24		0.096	19
暂无	9LG0612P4S001	12		0.67	8.04	11000	1.4	49.4	300		1.204	53
暂无	9LG0612P4J001	12		0.39	4.68	8650	1.1	38.8	182		0.73	47
暂无	9LG0612P4H001	12		0.17	2.04	6150	0.78	27.5	97		0.389	35
暂无	9LG0612P4M001	12		0.09	1.08	4200	0.53	18.7	45		0.18	24
暂无	9LG0624P4S001	24		0.34	8.16	11000	1.4	49.4	300		1.204	53
暂无	9LG0624P4J001	24		0.19	4.56	8650	1.1	38.8	182		0.73	47
暂无	9LG0624P4H001	24		0.08	1.92	6150	0.78	27.5	97		0.389	35
暂无	9LG0624P4M001	24		0.04	0.96	4200	0.53	18.7	45		0.18	24
暂无	9LG0648P4S001	48		0.18	8.64	11000	1.4	49.4	305		1.224	53
暂无	9LG0648P4J001	48		0.1	4.8	8650	1.1	38.8	182		0.73	47
暂无	9LG0648P4H001	48		0.06	2.88	6150	0.78	27.5	97		0.389	35
暂无	9LG0648P4M001	48		0.04	1.92	4200	0.53	18.7	45		0.18	24
暂无	9CRLB0612P0G001	12		3.6	43.2	19700	2.4	84.8	1500		6	75
暂无	9CRLA0612P0G001	12		3	36	16500	2.1	74.1	1400		5.62	70
暂无	9LG0812P4J001	12		0.6	7.2	7400	2.07	73	177		0.71	49
暂无	9LG0812P4G001	12		0.3	3.6	5500	1.54	54.3	98		0.39	43
暂无	9LG0812P4H001	12		0.12	1.44	3700	1.03	36.3	44		0.17	31
暂无	9LG0824P4J001	24		0.28	6.72	7400	2.07	73	177		0.71	49
暂无	9LG0824P4G001	24		0.14	3.36	5500	1.54	54.3	98		0.39	43
暂无	9LG0824P4H001	24		0.05	1.2	3700	1.03	36.3	44		0.17	31
暂无	9LG0812S4001	12		0.17	2.04	4200	1.17	41.3	56		0.22	35
暂无	9LG0812F4001	12		0.1	1.2	3300	0.92	32.5	35		0.14	29
暂无	9LG0812M4001	12		0.08	0.96	2900	0.8	28.3	27		0.11	25
暂无	9LG0812L4001	12		0.06	0.72	2300	0.64	22.6	17		0.068	22
暂无	9LG0948H4001	48		0.04	1.92	3150	1.38	48.7	41.6		0.17	32
暂无	9LG0824S4001	24		0.07	1.68	4200	1.17	41.3	56		0.22	35
暂无	9LG0824F4001	24		0.045	1.08	3300	0.92	32.5	35		0.14	29
暂无	9LG0824M4001	24		0.04	0.96	2900	0.8	28.3	27		0.11	25
暂无	9LG0824L4001	24		0.03	0.72	2300	0.64	22.6	17		0.068	22
暂无	9CRL0812P8G001	12		5.3	63.6	12000	4.5	158.9	1150		4.62	76
暂无	9LG0912P4J001	12		0.42	5.04	5000	2.2	77.7	105		0.42	44
暂无	9LG0912P4G001	12		0.3	3.6	4400	1.93	68.2	81		0.33	40
暂无	9LG0912P4S001	12		0.22	2.64	3850	1.69	59.7	62.1		0.25	37
暂无	9LG0912P4H001	12		0.15	1.8	3150	1.38	48.7	41.6		0.17	32
暂无	9LG0924P4J001	24		0.21	5.04	5000	2.2	77.7	105		0.42	44
暂无	9LG0924P4G001	24		0.15	3.6	4400	1.93	68.2	81		0.33	40
暂无	9LG0924P4S001	24		0.11	2.64	3850	1.69	59.7	62.1		0.25	37
暂无	9LG0924P4H001	24		0.07	1.68	3150	1.38	48.7	41.6		0.17	32
暂无	9LG0912F4001	12		0.1	1.2	2800	1.22	43.1	32.8		0.13	29
暂无	9LG0912M4001	12		0.08	0.96	2400	1.05	37.1	24.1		0.097	24
暂无	9LG0912L4001	12		0.07	0.84	2000	0.87	30.7	16.7		0.067	19
暂无	9LG0924F4001	24		0.05	1.2	2800	1.22	43.1	32.8		0.13	29
暂无	9LG0924M4001	24		0.04	0.96	2400	1.05	37.1	24.1		0.097	24
暂无	9LG0924L4001	24		0.03	0.72	2000	0.87	30.7	16.7		0.067	19
暂无	9LG0912P1H001	12		2	24	9000	3.7	130.6	430		1.72	61
暂无	9LG0912P1F001	12		1	12	7000	2.9	102.4	263		1.05	55
暂无	9LG0924P1H001	24		0.9	21.6	9000	3.7	130.6	430		1.72	61
暂无	9LG0924P1F001	24		0.5	12	7000	2.9	102.4	263		1.05	55
暂无	9LG1212P1G001	12		3.2	38.4	6550	7	247.1	370		1.48	62
暂无	9LG1212P1S001	12		2.2	26.4	5600	6	211.8	270		1.08	58
暂无	9LG1212P1H001	12		1.4	16.8	4700	5	176.5	190		0.76	54
暂无	9LG1224P1G001	24		1.6	38.4	6550	7	247.1	370		1.48	62
暂无	9LG1224P1S001	24		1.1	26.4	5600	6	211.8	270		1.08	58
暂无	9LG1224P1H001	24		0.7	16.8	4700	5	176.5	190		0.76	54
暂无	9LG1248P1G001	48		0.8	38.4	6550	7	247.1	370		1.48	62
暂无	9LG1248P1S001	48		0.55	26.4	5600	6	211.8	270		1.08	58
暂无	9LG1248P1H001	48		0.35	16.8	4700	5	176.5	190		0.76	54
暂无	9LG1212F1001	12		0.39	4.68	2800	3	106	67.6		0.27	39
暂无	9LG1212M1001	12		0.22	2.64	2100	2.2	77.7	37.9		0.15	33
暂无	9LG1224A1001	24		0.37	8.88	3700	3.9	137.8	117.8		0.47	48
暂无	9LG1224F1001	24		0.19	4.56	2800	3	106	67.6		0.27	39
暂无	9LG1224M1001	24		0.11	2.64	2100	2.2	77.7	37.9		0.15	33
暂无	9LG1248F1001	48		0.11	5.28	2800	3	106	67.6		0.27	39
暂无	9LG1248M1001	48		0.07	3.36	2100	2.2	77.7	37.9		0.15	33
暂无	9LG1412P1A001	12		3.72	44.64	6900	8	282	516		2.07	68
暂无	9LG1412P1H001	12		1.7	20.4	5200	6	212	300		1.2	62
暂无	9LG1412P1M001	12		0.6	7.2	3300	3.7	130	170		0.68	46
暂无	9LG1424P1A001	24		1.86	44.64	6900	8	282	516		2.07	68
暂无	9LG1424P1H001	24		0.85	20.4	5200	6	212	300		1.2	62
暂无	9LG1424P1M001	24		0.3	7.2	3300	3.7	130	170		0.68	46
暂无	9LG1448P1A001	48		0.92	44.16	6900	8	282	516		2.07	68
暂无	9LG1448P1H001	48		0.42	20.16	5200	6	212	300		1.2	62
暂无	9LG1448P1M001	48		0.15	7.2	3300	3.7	130	170		0.68	46
暂无	9LG1412L1001	12		0.27	3.3	2300	2.6	91.9	80		0.32	39
暂无	9LG1424L1001	24		0.17	4.1	2300	2.6	91.9	80		0.32	39
暂无	9LG1448L1001	48		0.11	5.3	2300	2.6	91.9	80		0.32	39
暂无	9LG1412P5G001	12		5.16	62	7500	9	318	655		2.63	69
暂无	9LG1412P5S001	12		1.83	22	5000	6	212	295		1.18	57
暂无	9LG1424P5G001	24		2.58	62	7500	9	318	655		2.63	69
暂无	9LG1424P5S001	24		0.91	22	5000	6	212	295		1.18	57
暂无	9LG1448P5G001	48		1.29	62	7500	9	318	655		2.63	69
暂无	9LG1448P5S001	48		0.45	22	5000	6	212	295		1.18	57
暂无	9LG1412A5001	12		2.61	31.4	5700	6.9	243.8	500		2	61
暂无	9LG1412H5001	12		1	12	4100	4.9	173.1	260		1.04	52
暂无	9LG1412M5001	12		0.43	5.16	2600	3.1	109.5	100		0.4	40
暂无	9LG1424A5001	24		1.21	29.1	5700	6.9	243.8	540		2.17	61
暂无	9LG1424H5001	24		0.55	13.2	4100	4.9	173.1	260		1.04	52
暂无	9LG1424M5001	24		0.23	5.52	2600	3.1	109.5	100		0.4	40
暂无	9LG1448A5001	48		0.66	31.7	5700	6.9	243.8	540		2.17	61
暂无	9LG1448H5001	48		0.31	14.9	4100	4.9	173.1	260		1.04	52
暂无	9LG1448M5001	48		0.15	7.2	2600	3.1	109.5	100		0.4	40
暂无	109L5712H501	12		1.2	14.4	3050	6.4	226	137.2		0.551	52
暂无	109L5712M501	12		0.48	5.76	2000	4.2	148	67.6		0.271	41
暂无	109L5724H501	24		0.58	13.92	3050	6.4	226	137.2		0.551	52
暂无	109L5724M501	24		0.2	4.8	2000	4.2	148	67.6		0.271	41
暂无	109L5748H501	48		0.28	13.44	3050	6.4	226	137.2		0.551	52
暂无	109L5748M501	48		0.11	5.28	2000	4.2	148	67.6		0.271	41
暂无	109L1712H501	12		1.2	14.4	3050	6.4	226	137.2		0.551	47
暂无	109L1712M501	12		0.48	5.76	2000	4.2	148	67.6		0.271	36
暂无	109L1724H501	24		0.58	13.92	3050	6.4	226	137.2		0.551	47
暂无	109L1724M501	24		0.2	4.8	2000	4.2	148	67.6		0.271	36
暂无	109L1748H501	48		0.28	13.44	3050	6.4	226	137.2		0.551	47
暂无	109L1748M501	48		0.11	5.28	2000	4.2	148	67.6		0.271	36
暂无	9GL1248E101	48		0.17	8.16	3100	3.34	118	100		0.402	46
暂无	9GL1248G101	48		0.25	12	3600	3.88	137	135		0.542	49
暂无	9GL1248M101	48		0.07	3.36	1950	2.1	74	39.6		0.159	32
暂无	9LG0812P1G001	12		2.8	33.6	15200	3.42	120	1260		5.04	71
暂无	9LG0812P1H001	12		1.8	21.6	12700	2.86	101	880		3.52	68
暂无	9LG0824P1G001	24		1.4	33.6	15200	3.42	120	1260		5.04	71
暂无	9LG0824P1H001	24		0.9	21.6	12700	2.86	101	880		3.52	68
暂无	9LG0848P1G001	48		0.7	33.6	15200	3.42	120	1260		5.04	71
暂无	9LG0848P1H001	48		0.45	21.6	12700	2.86	101	880		3.52	68
暂无

PRODUCT PRESENTATION

Product Overview

The San Ace 40 Low Power Consumption Fan (Model: 9GA0412P7G001) is a compact, energy-efficient DC axial flow fan designed for precision cooling in space-constrained environments. Featuring PWM control for dynamic speed adjustment, this fan delivers reliable performance with minimal power consumption, making it ideal for applications requiring quiet operation and long service life.

Key Features

Energy Efficiency: Low power consumption (2.04W rated input) reduces operational costs and environmental impact.
PWM Control: Enables precise speed regulation via pulse-width modulation, adapting to varying thermal loads.
Compact Design: 40x40x15mm form factor fits seamlessly into small enclosures and densely packed systems.
Durable Construction: Plastic frame with ribbed design enhances structural integrity and airflow efficiency.
Wide Operating Range: Functions reliably in temperatures from -20°C to +70°C, ensuring stability in diverse environments.

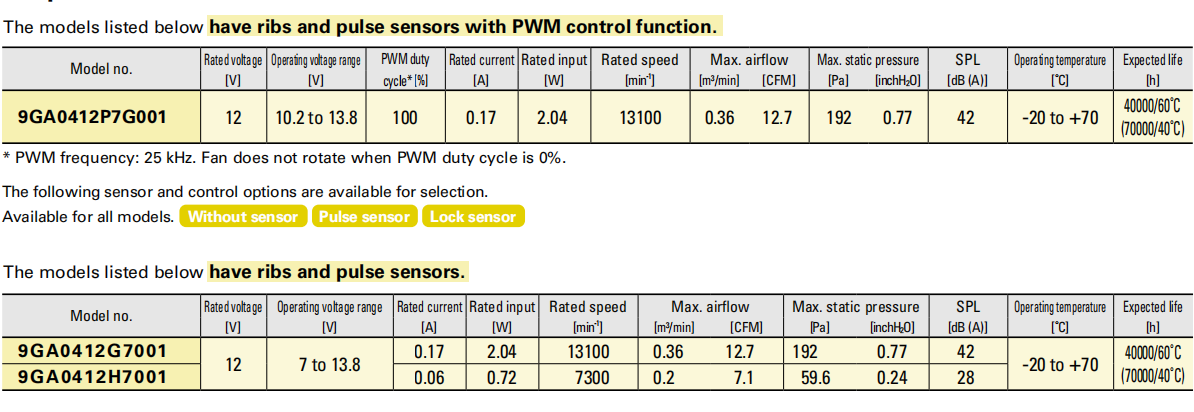

Technical Specifications

Parameter	Specification
Model Number	9GA0412P7G001

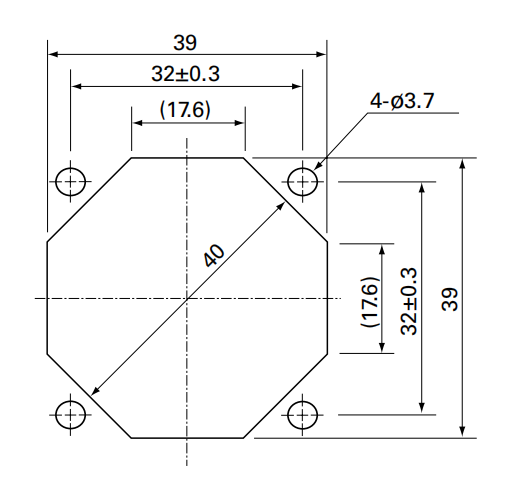

Frame Size	40mm (L) × 40mm (W) × 15mm (H)
Rated Voltage	12V DC
Operating Voltage Range	10.2V – 13.8V
Rated Current	0.17A
Rated Input Power	2.04W
Rated Speed	13,100 min⁻¹
Max. Airflow	0.36 m³/min (12.7 CFM)
Max. Static Pressure	192 Pa (0.77 inchH₂O)
Noise Level (SPL)	42 dB(A)
Operating Temperature	-20°C to +70°C
Expected Lifespan	40,000 hours (at 60°C) / 70,000 hours (at 40°C)
Sensor Type	Pulse Sensor (for speed monitoring)
Control Function	PWM Control (4-wire interface)
Frame Material	Plastic (Ribbed)
Mass	28g

Applications

Industry	Use Cases
Data Centers	Cooling server racks, network switches, and storage devices.
Telecommunications	Heat dissipation in base stations, routers, and optical transmission equipment.
Industrial Automation	Ventilation for PLCs, motor drives, and control panels.
Medical Equipment	Thermal management in diagnostic devices and laboratory instruments.
Consumer Electronics	Cooling high-performance PCs, gaming consoles, and audio-visual systems.

Compliance & Certifications

This product meets international standards for safety and environmental protection, including:

UL Certification (Underwriters Laboratories)
CSA Standards (Canadian Standards Association)
EN Standards (European Norms)
RoHS Directive (Restriction of Hazardous Substances)

For detailed documentation, including 3D models and performance curves, visit the Download Materials List
