4020 5V DC COOLING FAN

109P0405F601

Brand: SanAce (Japan sanyodenki)
Size: 40x40x20mm

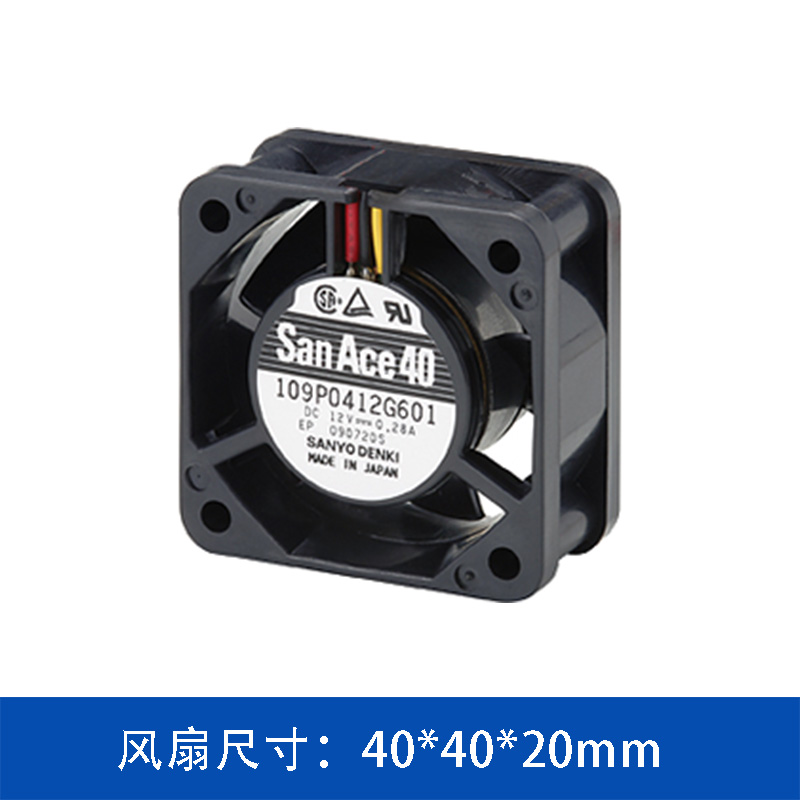

Characteristics: Low power consumption, low noise, long lifespan
Signal line: 3-wire
Product description: SANYO DENKI San Ace 40 series 109P0405F601 DC cooling fan, 5V voltage, 6500 RPM high speed, airflow 0.183 m³/min, noise only 28 dB(A). Ideal for small devices, industrial controllers, and server cooli
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
	109P0405F601	5	4.5~5.5	0.25	1.25	6500	0.183	6.5	45.1	4.5974	0.181	28

PRODUCT PRESENTATION

Product Overview

The 109P0405F601 from SANYO DENKI's San Ace 40 series is a compact yet powerful axial DC cooling fan designed for high-performance cooling in space-constrained applications. With dimensions of 40x40x20mm, this fan delivers an impressive airflow of 6.5 CFM (0.183 m³/min) at a rated speed of 6500 min⁻¹, making it ideal for industrial computers, servers, and other electronic devices requiring efficient heat dissipation under low-voltage conditions.

Key Features

Compact Size: 40x40x20 mm frame, perfect for tight spaces.
Low Voltage Operation: Rated at 5V DC, suitable for battery-powered or low-power electronics.
High Speed: 6500 RPM rated speed ensures strong cooling performance.
Quiet Operation: Acoustic noise level of 28 dB(A), providing silent cooling.
Pulse Sensor: Built-in pulse sensor for accurate rotor position detection.
Durable Construction: Plastic frame and impeller for lightweight and reliable operation.

Specifications Table

Parameter	Value
Model No.	109P0405F601
Frame Size [mm]	40 x 40 x 20
Frame Thickness [mm]	20
Frame Material	Plastic
Rated Voltage [V]	5
Operating Voltage Range [V]	4.5 ~ 5.5
Rated Current [A]	0.25
Rated Input [W]	1.25
Rated Speed [min⁻¹]	6500
Max. Airflow [m³/min]	0.183
Max. Airflow [CFM]	6.5
Max. Static Pressure [Pa]	45.1
Max. Static Pressure [inchH₂O]	0.181
SPL [dB(A)]	28
Operating Temperature [°C]	-20 ~ +70
Expected Life [h]	60,000 hours @ 60°C / 90,000 hours @ 40°C
Mass [g]	45
Sensor Type	Pulse sensor
PWM Control Function	No
**Rib	bed**

Performance Characteristics

The 109P0405F601 is engineered to provide a balance between airflow and static pressure, making it versatile for both free-air cooling and applications with moderate resistance. It can generate a maximum static pressure of 45.1 Pa, allowing it to effectively push air through heatsinks or filters.

Applications

This fan is widely used in various industries, including:

Industrial control systems and embedded PCs
Network servers and storage devices
Telecommunications equipment
Medical devices
Small form-factor (SFF) computers and DIY projects
Power supplies and battery management systems

Why Choose San Ace 40?

SANYO DENKI's San Ace series is renowned for its reliability and long lifespan. The 109P0405F601 features a robust design with a pulse sensor for precise monitoring, ensuring stable operation even in demanding environments. Its compliance with UL, CSA, EN, and RoHS standards guarantees safety and environmental friendliness.

Ordering Information

Manufacturer: SANYO DENKI CO., LTD.
Part Number: 109P0405F601
Availability: In stock at authorized distributors worldwide.

For detailed technical drawings, 3D models, or additional documentation, please visit the official SANYO DENKI website or contact your local sales representative.
