4028 24V Low Power Consumption Fan

9GA0424P3H001

Brand: SanAce (Japan sanyodenki)

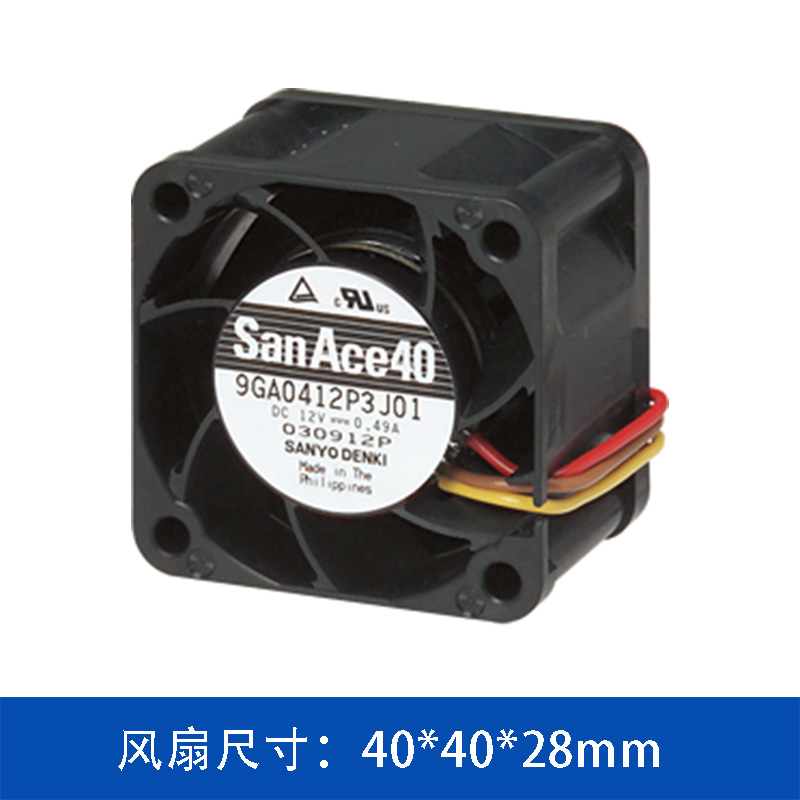

Size:40x40x28mm
Characteristics: Low power consumption, low noise, long lifespan
Signal line: 4-wire PWM + FG
Product description: Introduce Sanyo Denki San Ace 40 model 9GA0424P3H001 40x40x28mm DC axial cooling fan with 24V rated voltage, low power consumption design, built-in PWM control and pulse speed sensor. This 14500RPM in
INQUIRY
Product Manual / Specification Sheet Download

PRODUCT SPECIFICATION

Document	MODEL	Rated Voltage	Operating Voltage Range	Rated Current	Rated Input Power	Speed	Maximum Air Flow		Maximun Air Pressure			Noise
承认书/规格书	型号	额定定压	电压范围	额定电流	额定功率	转速	最大风量		最大风压			噪音
PDF	PART NO.	VDC	VDC	Amp	Watt	R.P.M	㎥/min	CFM	Pa	mmH2O	INH2O	DB-A
暂无	9GA0412P3J01	12	10.2~13.8	0.49	5.88	18000	0.67	23.7	535		2.15	54
暂无	9GA0412P3J011	12	10.2~13.8	0.49	5.88	18000	0.67	23.7	535		2.15	54
暂无	9GA0412P3G01	12	10.2~13.8	0.39	4.68	16500	0.61	21.5	450		1.81	53
暂无	9GA0412P3G011	12	10.2~13.8	0.39	4.68	16500	0.61	21.5	450		1.81	53
暂无	9GA0412P3H01	12	10.2~13.8	0.28	3.36	14500	0.54	19.1	347		1.39	50
暂无	9GA0412P3H011	12	10.2~13.8	0.28	3.36	14500	0.54	19.1	347		1.39	50
暂无	9GA0412P3M01	12	10.2~13.8	0.21	2.52	12500	0.46	16.2	258		1.04	47
暂无	9GA0412P3M011	12	10.2~13.8	0.21	2.52	12500	0.46	16.2	258		1.04	47
暂无	9GA0424P3J001	24	21.6~26.4	0.27	6.48	18000	0.67	23.7	535		2.15	54
暂无	9GA0424P3J0011	24	21.6~26.4	0.27	6.48	18000	0.67	23.7	535		2.15	54
暂无	9GA0424P3G001	24	21.6~26.4	0.22	5.28	16500	0.61	21.5	450		1.81	53
暂无	9GA0424P3G0011	24	21.6~26.4	0.22	5.28	16500	0.61	21.5	450		1.81	53
	9GA0424P3H001	24	21.6~26.4	0.16	3.84	14500	0.54	19.1	347		1.39	50
暂无	9GA0424P3H0011	24	21.6~26.4	0.16	3.84	14500	0.54	19.1	347		1.39	50
暂无	9GA0424P3M001	24	21.6~26.4	0.11	2.64	12500	0.46	16.2	258		1.04	47
暂无	9GA0424P3M0011	24	21.6~26.4	0.11	2.64	12500	0.46	16.2	258		1.04	47
暂无	9GA0412A301	12	10.2~13.8	0.13	1.56	10500	0.38	13.4	182		0.73	43
暂无	9GA0412A3011	12	10.2~13.8	0.13	1.56	10500	0.38	13.4	182		0.73	43

PRODUCT PRESENTATION

San Ace 40 Series Low Power Consumption Fan Model 9GA0424P3H001

Product Overview

The 9GA0424P3H001 belongs to Sanyo Denki San Ace 40 compact DC axial fan lineup, sized 40mm×40mm×28mm. It is developed for low power consumption scenarios while maintaining high airflow and high static pressure performance. Equipped with PWM speed regulation and pulse signal speed feedback sensor, this fan supports real-time speed monitoring and stepless speed adjustment, perfectly matching high-density heat dissipation demands of servers, industrial control cabinets, medical equipment and compact communication devices.

This product fully complies with global mainstream safety and environmental standards including UL ratings, CSA standards, EN standards and RoHS directive, with reinforced ribbed plastic frame to enhance structural stability under long-term continuous operation.

Full Technical Specification Table

表格

Parameter Item	Technical Data	Parameter Item	Technical Data
Model Number	9GA0424P3H001	Frame Dimension	40mm
Frame Thickness	28mm	Frame Material	Plastic with ribbed design
Rated Voltage	24V DC	Operating Voltage Range	21.6V ~ 26.4V DC
Rated Current	0.16A	Rated Input Power	3.84W
Rated Rotation Speed	14500 min⁻¹	Maximum Airflow	0.54 m³/min
Maximum Airflow(CFM)	19.1 CFM	Maximum Static Pressure	347 Pa
Max Static Pressure(inchH2O)	1.39 inchH2O	Sound Pressure Level	50 dB(A)
Operating Temperature Range	-20℃ ~ +70℃	Expected Service Life	40000h at 60℃, 70000h at 40℃
Net Weight	53g	Speed Sensor Type	Pulse sensor
PWM Control Function	Supported	Ribbed Frame	Yes

Core Performance Parameter Table

表格

Performance Index	Specific Value	Application Advantage
Ultra-high Rotation Speed	14500 RPM	Rapidly discharge concentrated heat from narrow, sealed equipment space
High Static Pressure	347 Pa	Stable airflow output under blocked filter or dense heat sink environment
Low Power Design	Rated power only 3.84W	Reduce overall equipment energy consumption and operating cost
Wide Voltage Adaptation	21.6V to 26.4V	Stable operation under voltage fluctuation of industrial power supply
Low Noise Balance	50 dB(A)	Avoid excessive noise interference in indoor industrial and office equipment

Functional Configuration Introduction Table

表格

Built-in Function	Function Description	Practical Value for Customers
PWM Control Support	Adjust fan rotation speed by input PWM signal	Realize intelligent temperature linkage cooling, further cut power loss and noise
Pulse Speed Sensor	Output pulse signal proportional to fan real-time speed	Host system can monitor fan operating status, alarm when stall or abnormal speed occurs
Ribbed Reinforced Frame	Integrated rib structure on plastic frame	Improve frame anti-deformation capacity, reduce vibration during high-speed rotation, extend service life

Environmental & Safety Compliance Table

表格

Certification Standard	Compliance Status	Standard Benefit
UL Ratings	Passed	Meet North American industrial equipment safety access requirements
CSA Standards	Passed	Support Canada market product certification and sales
EN Standards	Passed	Conform to European electrical equipment safety norms
RoHS Directive	Passed	Lead-free and low hazardous material composition, meet global environmental export standards
Eco Product Standard	Qualified	Low power consumption design reduces carbon emission of terminal equipment

Service Life & Operating Environment

The 9GA0424P3H001 fan adopts high wear-resistant bearing structure. Its service life varies according to ambient operating temperature:

40000 hours continuous operation under 60℃ ambient temperature
70000 hours continuous operation under 40℃ ambient temperature

The allowable working temperature range covers -20℃ to +70℃, which can adapt to low-temperature cold storage equipment and high-temperature closed industrial cabinet working conditions without performance attenuation.

Typical Application Scenarios

1U / 2U rack mounted server internal heat dissipation
Compact industrial PLC, drive and control cabinet cooling
Miniature communication switching power supply, network equipment
Portable medical testing instruments
Small precision automation equipment

Product Structural Features

Standard 4028 square frame size, universal mounting hole position for convenient replacement of old cooling fans
Lightweight plastic ribbed shell, total mass only 53g, will not add extra load to miniature equipment
Built-in dual functional circuit of PWM control and pulse speed detection, single fan realizes intelligent heat dissipation monitoring without extra accessory installation
Low power consumption motor core design, reduce long-term electricity cost for mass equipment deployment
